Bluetooth Driver

Topics in this section,

• Learnings in this section

• Terminology

• Version Info

• Architecure

• HW

• SW

  • Applications & Libraries

  • Kernel & Driver modules

    • List of driver modules

• Use case

• Driver Development

  • Custom build of driver modules

  • Load custom built driver modules

  • Init path

  • Control path

  • Data path

  • Contexts

    • Threads

    • Timers

    • Interrupts

  • Data Structures

• FAQs

• Reference links

Learnings in this section

• In this section, you are going to learn

• Bluetooth driver

Terminology

Term	Expansion	Explanation
BT	Bluetooth	Short-range wireless technology standard that is used for exchanging data between devices over short distances
BLE	Bluetooth Low Energy	Designed to be a version of Bluetooth with a lower energy consumption rate
DSP	Digital Signal Processors	Take real-world signals like voice, audio, video, temperature, pressure, or position that have been digitized and then mathematically manipulate them
HCI	Host Controller Interface	Thin layer which transports commands and events between the host and controller elements of the Bluetooth protocol stack
OSS	Open Sound System	Interface for making and capturing sound in Unix and Unix-like operating systems
USB	Universal Serial Bus	Industry standard that allows data exchange and delivery of power between many types of electronics
HDA	High Definition Audio	Audio files with greater than 44.1 kHz sample rate or higher than 16-bit audio bit depth
PCM	Pulse-Code Modulation	Method for converting analog audio into digital audio

Version Info

#	Version
Freebsd	14.1.0

Architecture

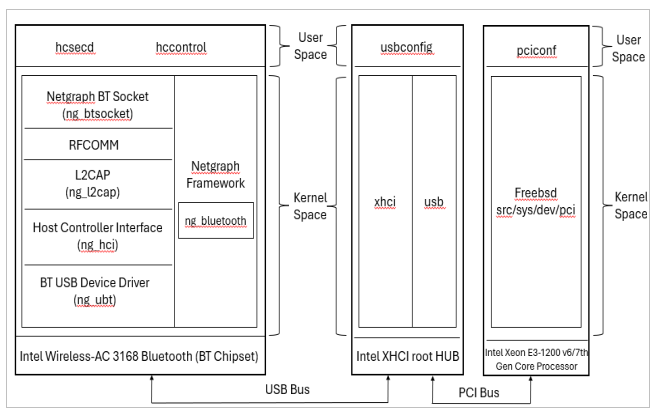

BT Architecture

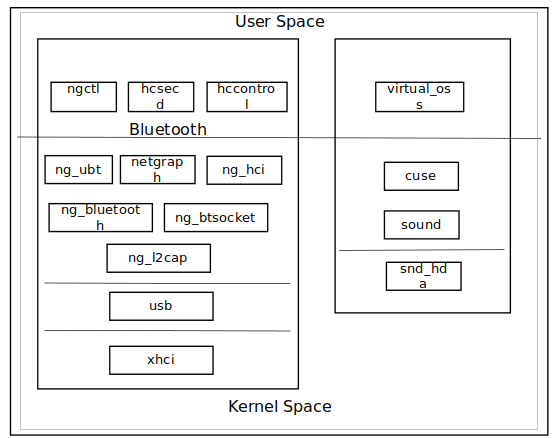

BT Headset: SW Modules at high level

Kernel Modules	Description
ng_ubt.ko	Driver for Bluetooth USB devices
netgraph.ko	Netgraph control utility. It creates a new netgraph node of type socket which can be used to issue netgraph commands
ng_hci.ko	Bluetooth Host Controller Interface (HCI) layer
ng_bluetooth.ko	Placeholder for global Bluetooth variables
ng_btsocket.ko	Bluetooth sockets layer
ng_l2cap.ko	Bluetooth Logical Link Control and Adaptation Protocol (L2CAP)
usb.ko	Interfaces for directly managing a usb device
xhci.ko	USB extensible Host Controller driver
sound.ko	FreeBSD PCM audio device infrastructure
cuse.ko	Userland character device driver

Library Modules	Description
libnetgraph.so.4	Library for supporting user-mode programs that wish to interact with the netgraph system
libedit.so.8	Provides command line editing functionality
libthr.so.3	POSIX threads library
libc.so.7	Standard C libraries
libbluetooth.so.4	Bluetooth User Library
libnv.so.1	Name/value pairs library
libsdp.so.4	Bluetooth Service Discovery Protocol User Library
libfftw3.so.3	Library designed to compute discrete Fourier transforms
libm.so.5	The math library
libsamplerate.so.0	Sample Rate Converter for audio.
libcuse.so.1	Userland character device library

Commands	Description
ngctl	Netgraph control utility. It creates a new netgraph node of type socket which can be used to issue netgraph commands
hcsecd	Daemon that controls link keys and PIN codes for Bluetooth devices
hccontrol	Bluetooth HCI configuration utility
usbconfig	Utility to configure and dump information about the USB subsystem
virtual_oss	Audio mixing application that multiplexes and demultiplexes a single OSS device into multiple customizable OSS compatible devices using character devices from userspace
snd_hda	Intel High Definition Audio bridge device driver

HW

Laptop OS:	FreeBSD 14.1-Release
Bluetooth chipset:	Intel Dual Band Wireless-AC 3168NGW with Bluetooth integrated
Headphones:	OnePlus Buds

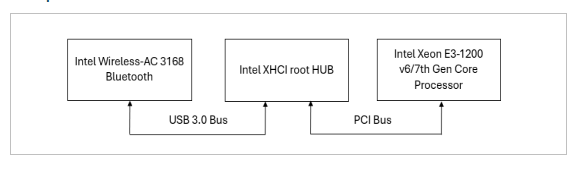

Chips Interconnect

BT

Chipset	Intel Wireless-AC 3168 Bluetooth
Vendor ID	0x8087
Product ID	0x0aa7
Interface	ubt0

USB Host Controller

Chipset	Intel XHCI root HUB
Vendor ID	0x0000
Product ID	0x0000
Interface	uhub0

PCI Host Controller

Chipset	Intel Xeon E3-1200 v6/7th Gen Core Processor Host Bridge/DRAM Registers
Vendor ID	0x8086
Device ID	0x5914
Interface	hostb0

SW

Applications & Libraries

• Bluetooth setup script

ngctl

• Netgraph control utility. It creates a new netgraph node of type socket which can be used to issue netgraph commands

Binary Name :	ngctl
Version :	ngctl.8,v 1.6
Size :	21K
Source path :	/usr/src/usr.sbin/ngctl
Binary path :	/usr/obj/usr/src/amd64.amd64/usr.sbin/ngctl/ngctl
List of c files :	main.c mkpeer.c config.c connect.c dot.c name.c show.c list.c msg.c debug.c shutdown.c rmhook.c status.c types.c write.c
NM symbol list	See the full content of nm output 0000000000005d10 t ConfigCmd 0000000000005ec0 t ConnectCmd 0000000000006f60 t DebugCmd 00000000000056a0 t DoParseCommand 0000000000005fd0 t DotCmd 0000000000005460 T DumpAscii 00000000000059c0 t FindCommand 0000000000004b20 t HelpCmd 0000000000006910 t ListCmd 0000000000005c10 t MkPeerCmd 0000000000005780 t Monitor 0000000000006bb0 t MsgCmd 0000000000006dc0 T MsgRead 0000000000006600 t NameCmd U NgAllocRecvData U NgAllocRecvMsg U NgMkSockNode U NgRecvMsg U NgSendAsciiMsg U NgSendMsg U NgSetDebug 0000000000005990 t Prompt 0000000000004f30 t QuitCmd 0000000000004a10 t ReadCmd 0000000000007060 t RmHookCmd 00000000000066b0 t ShowCmd 0000000000007000 t ShutdownCmd 0000000000007120 t StatusCmd 0000000000007210 t TypesCmd 00000000000059a0 t Unblock 0000000000007350 t WriteCmd U _CurrentRuneLocale 0000000000009110 d _DYNAMIC w _Jv_RegisterClasses U _ThreadRuneLocale 00000000000089e8 d __CTOR_END__ 00000000000089e0 d __CTOR_LIST__ 00000000000089f8 d __DTOR_END__ 00000000000089f0 d __DTOR_LIST__ 0000000000008a00 d __JCR_END__ 0000000000008a00 d __JCR_LIST__ w __cxa_finalize 00000000000075a0 t __do_global_ctors_aux 0000000000004990 t __do_global_dtors_aux 000000000000a340 d __dso_handle U __error U __isthreaded U __libc_start1 U __mb_sb_limit 000000000000a338 D __progname U __stack_chk_fail U __stack_chk_guard U __stderrp U __stdinp U __stdoutp 00000000000075d8 T _fini 00000000000075cc T _init 0000000000004960 T _start U atoi 0000000000008b40 d cmds 000000000000a568 b cond 0000000000008c30 D config_cmd 0000000000008c90 D connect_cmd 000000000000a558 B csock 0000000000008ed0 D debug_cmd 0000000000008cf0 D dot_cmd 000000000000a55c B dsock U el_end U el_gets U el_init U el_set U el_source 000000000000a550 B environ U err U errx U exit U fclose U ferror U fgets U fopen U fprintf U fread U free U fwrite U getopt U getpid U getprogname 0000000000008a70 D help_cmd U history U history_end U history_init U isatty 0000000000008e10 D list_cmd 0000000000004f40 T main U malloc 0000000000008bd0 D mkpeer_cmd 0000000000008e70 D msg_cmd 000000000000a560 b mutex 0000000000008d50 D name_cmd U optarg U optind U printf U pthread_cancel U pthread_cond_signal U pthread_cond_wait U pthread_create U pthread_kill U pthread_mutex_lock U pthread_mutex_unlock U putchar U puts 0000000000008ad0 D quit_cmd 0000000000008a10 D read_cmd 00000000000049e0 t register_classes 0000000000008f90 D rmhook_cmd U select U sendto 0000000000008db0 D show_cmd 0000000000008f30 D shutdown_cmd U sigaction U sigemptyset U snprintf U sscanf 0000000000008ff0 D status_cmd U strcat U strcmp U strcspn U strlcpy U strlen U strncasecmp U strtok 0000000000009050 D types_cmd 000000000000a570 b unblock U warn U warnx 00000000000090b0 D write_cmd

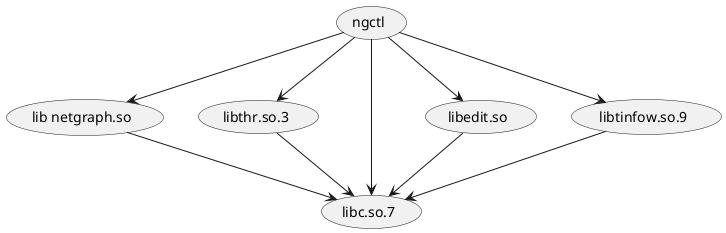

Dependencies

# ldd ngctl ngctl: libnetgraph.so.4 => /usr/lib/libnetgraph.so.4 (0x3d5fc6ac000) libedit.so.8 => /lib/libedit.so.8 (0x3d5fc7c9000) libthr.so.3 => /lib/libthr.so.3 (0x3d5fd1ba000) libc.so.7 => /lib/libc.so.7 (0x3d5ff716000) libtinfow.so.9 => /lib/libtinfow.so.9 (0x3d5fe069000) [vdso] (0x3d5fc609000)

# ldd /usr/lib/libnetgraph.so.4 /usr/lib/libnetgraph.so.4: libc.so.7 => /lib/libc.so.7 (0x2167ea4d2000)

# ldd /lib/libedit.so.8 /lib/libedit.so.8: libtinfow.so.9 => /lib/libtinfow.so.9 (0x2ea4cbfeb000) libc.so.7 => /lib/libc.so.7 (0x2ea4ca0c7000)

# ldd /lib/libtinfow.so.9 /lib/libtinfow.so.9: libc.so.7 => /lib/libc.so.7 (0x1928bc8e7000)

# ldd /lib/libthr.so.3 /lib/libthr.so.3: libc.so.7 => /lib/libc.so.7 (0x33b2a4033000)

hcsecd

• Daemon that controls link keys and PIN codes for Bluetooth devices

Binary Name :	hcsecd
Version :	hcsecd.8,v 1.8
Size :	21K
Source path :	/usr/src/usr.sbin/bluetooth/hcsecd
Binary path :	/usr/obj/usr/src/amd64.amd64/usr.sbin/bluetooth/hcsecd/hcsecd
List of c files :	hcsecd.c
NM symbol list	See the full content of nm output 0000000000008d20 d _DYNAMIC w _Jv_RegisterClasses 0000000000008cf8 d __CTOR_END__ 0000000000008cf0 d __CTOR_LIST__ 0000000000008d08 d __DTOR_END__ 0000000000008d00 d __DTOR_LIST__ 0000000000008d10 d __JCR_END__ 0000000000008d10 d __JCR_LIST__ w __cxa_finalize 0000000000007940 t __do_global_ctors_aux 00000000000042e0 t __do_global_dtors_aux 0000000000009f08 d __dso_handle U __error U __isthreaded U __libc_start1 0000000000009f00 D __progname U __srget U __stack_chk_fail U __stack_chk_guard U __stderrp U __stdinp U __stdoutp 0000000000007978 T _fini 000000000000796c T _init 00000000000042b0 T _start U bt_aton U bt_ntoa U calloc 0000000000006930 T clean_config U clearerr U close U closelog 0000000000009f18 D config_file U daemon 000000000000a0e8 b done 0000000000007690 T dump_keys_file 000000000000a0e0 B environ U err U errx U exit U fclose U ferror U fgets U fileno U fopen U fprintf U fread U free U fwrite 0000000000007330 T get_key U getc U getopt U getpid U getuid 0000000000007600 t hexa2int8 U isatty 000000000000a1a8 b key 000000000000a150 b link_keys 0000000000004360 T main U malloc U memcpy U memset U open U openlog U optarg U puts 0000000000006820 T read_config_file 0000000000007390 T read_keys_file U realloc U recvfrom 0000000000004330 t register_classes U remove U rename U sendto U setsockopt U sigaction 0000000000004db0 t sighup 0000000000004d80 t sigint U snprintf U socket U strchr U strdup U strerror U strlen U strncpy U syslog U unlink U write 0000000000002040 r yy_accept 00000000000021c0 r yy_base 000000000000a110 b yy_buffer_stack 000000000000a148 b yy_buffer_stack_max 000000000000a118 b yy_buffer_stack_top 000000000000a120 b yy_c_buf_p 00000000000020d0 r yy_chk 0000000000005d10 T yy_create_buffer 0000000000002270 r yy_def 00000000000061c0 T yy_delete_buffer 0000000000001f40 r yy_ec 0000000000005d80 t yy_fatal_error 000000000000a100 B yy_flex_debug 0000000000006240 T yy_flush_buffer 000000000000a128 b yy_hold_char 000000000000a104 b yy_init 0000000000005f40 t yy_init_buffer 000000000000a130 b yy_last_accepting_cpos 000000000000a12c b yy_last_accepting_state 0000000000002320 r yy_meta 000000000000a144 b yy_n_chars 0000000000002340 r yy_nxt 0000000000002430 r yy_rule_can_match_eol 00000000000064e0 T yy_scan_buffer 0000000000006590 T yy_scan_bytes 0000000000006570 T yy_scan_string 000000000000a108 b yy_start 0000000000006070 T yy_switch_to_buffer 00000000000061b0 T yyalloc 000000000000a160 B yychar 00000000000025b0 r yycheck 00000000000024d0 r yydefred 0000000000002ae0 r yydgoto 000000000000a15c B yyerrflag 00000000000067f0 T yyerror 0000000000006230 T yyfree 00000000000066f0 T yyget_debug 0000000000006680 T yyget_in 00000000000066a0 T yyget_leng 0000000000006670 T yyget_lineno 0000000000006690 T yyget_out 00000000000066b0 T yyget_text 0000000000002ab0 r yygindex 000000000000a0f0 B yyin 0000000000002a10 r yylen 000000000000a140 B yyleng 0000000000004de0 T yylex 0000000000006710 T yylex_destroy 0000000000002a60 r yylhs 0000000000009f10 D yylineno 000000000000a198 B yylval 000000000000a158 B yynerrs 000000000000a0f8 B yyout 00000000000069a0 T yyparse 0000000000006430 T yypop_buffer_state 00000000000062e0 T yypush_buffer_state 00000000000067e0 T yyrealloc 0000000000005db0 T yyrestart 0000000000006700 T yyset_debug 00000000000066d0 T yyset_in 00000000000066c0 T yyset_lineno 00000000000066e0 T yyset_out 0000000000002540 r yysindex 000000000000a168 b yystack.0 000000000000a170 b yystack.1 000000000000a178 b yystack.2 000000000000a180 b yystack.3 000000000000a188 b yystack.4 000000000000a190 b yystack.5 00000000000027e0 r yytable 000000000000a138 B yytext 000000000000a1a0 B yyval

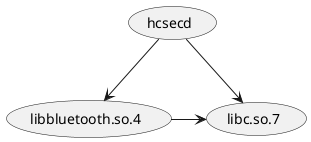

Dependencies

# ldd hcsecd hcsecd: libbluetooth.so.4 => /usr/lib/libbluetooth.so.4 (0x2153c55f2000) libc.so.7 => /lib/libc.so.7 (0x2153c4c0a000) [vdso] (0x2153c3641000)

# ldd /usr/lib/libbluetooth.so.4 /usr/lib/libbluetooth.so.4: libc.so.7 => /lib/libc.so.7 (0x3babfdc9a000)

hccontrol

• Bluetooth HCI configuration utility

Binary Name:	hccontrol
Version	hccontrol.8,v 1.6
Size	117K
Source path	/usr/src/usr.sbin/bluetooth/hccontrol
Binary path	/usr/obj/usr/src/amd64.amd64/usr.sbin/bluetooth/hccontrol/hccontrol
List of C files:	send_recv.c link_policy.c link_control.c le.c host_controller_baseband.c info.c status.c node.c hccontrol.c util.c adv_data.c
NM symbols list:	See the full content of nm output 000000000002f350 d _DYNAMIC w _Jv_RegisterClasses 000000000002e368 d __CTOR_END__ 000000000002e360 d __CTOR_LIST__ 000000000002e378 d __DTOR_END__ 000000000002e370 d __DTOR_LIST__ 000000000002e380 d __JCR_END__ 000000000002e380 d __JCR_LIST__ U __assert w __cxa_finalize 000000000002cfb0 t __do_global_ctors_aux 0000000000022fb0 t __do_global_dtors_aux 0000000000030538 d __dso_handle U __error U __libc_start1 0000000000030530 D __progname U __stack_chk_fail U __stack_chk_guard U __stdoutp 000000000002cfe8 T _fini 000000000002cfdc T _init 0000000000022f80 T _start U atof U atoi U bind U bt_aton U bt_gethostbyaddr U bt_gethostbyname U bt_ntoa U calloc U close U connect 000000000002c760 T dump_adv_data 0000000000031160 B environ U err U errx U exit U fprintf U fputc U fputs U free U fwrite U getopt 0000000000027230 t handle_le_connection_event 0000000000027380 t handle_le_remote_features_event 0000000000024440 t hci_add_sco_connection 000000000002c570 T hci_addrtype2str 000000000002c4f0 T hci_bdaddr2str 0000000000031180 b hci_bdaddr2str.buffer 000000000002c460 T hci_cc2str 0000000000024680 t hci_change_connection_packet_type 0000000000027dc0 t hci_change_local_name 000000000002bf50 T hci_coding2str 000000000002c100 T hci_commands2str 000000000002e3d0 d hci_commands2str.t 000000000002c490 T hci_con_state2str 0000000000023ef0 t hci_create_connection 0000000000027cb0 t hci_delete_stored_link_key 0000000000024230 t hci_disconnect 000000000002bf20 T hci_encrypt2str 000000000002e390 d hci_encrypt2str.t 000000000002e3b0 d hci_encrypt2str.t1 000000000002c220 T hci_features2str 000000000002ef50 d hci_features2str.t 000000000002b090 t hci_flush_neighbor_cache 000000000002a450 t hci_get_link_quality 000000000002bfb0 T hci_hmode2str 0000000000023af0 t hci_inquiry 000000000002c600 T hci_le_chanmap2str 000000000002c340 T hci_le_features2str 000000000002f150 d hci_le_features2str.t 000000000002be90 T hci_link2str 000000000002c0a0 T hci_lmpver2str 000000000002c0d0 T hci_manufacturer2str 000000000002c5d0 T hci_mc_accuracy2str 000000000002ab50 t hci_node_initialize 000000000002bec0 T hci_pin2str 0000000000028880 t hci_read_authentication_enable 000000000002a190 t hci_read_bd_addr 0000000000029fe0 t hci_read_buffer_size 0000000000028bc0 t hci_read_class_of_device 0000000000024f10 t hci_read_clock_offset 0000000000027f70 t hci_read_connection_accept_timeout 000000000002b2b0 t hci_read_connection_list 000000000002a0d0 t hci_read_country_code 000000000002ab70 t hci_read_debug_level 0000000000028a20 t hci_read_encryption_mode 000000000002a250 t hci_read_failed_contact_counter 0000000000029120 t hci_read_hold_mode_activity 0000000000028660 t hci_read_inquiry_scan_activity 0000000000029a30 t hci_read_le_host_support 00000000000238b0 t hci_read_link_policy_settings 00000000000294c0 t hci_read_link_supervision_timeout 0000000000027eb0 t hci_read_local_name 0000000000029d50 t hci_read_local_supported_commands 0000000000029ea0 t hci_read_local_supported_features 0000000000029c20 t hci_read_local_version_information 000000000002b0b0 t hci_read_neighbor_cache 000000000002ad70 t hci_read_node_bd_addr 000000000002ac60 t hci_read_node_buffer_size 000000000002ae00 t hci_read_node_features 000000000002a690 T hci_read_node_link_policy_settings_mask 000000000002a9c0 T hci_read_node_list 000000000002a7a0 T hci_read_node_packet_mask 000000000002a8b0 T hci_read_node_role_switch 000000000002af60 t hci_read_node_stat 000000000002aad0 t hci_read_node_state 0000000000028f90 t hci_read_number_broadcast_retransmissions 0000000000028450 t hci_read_page_scan_activity 00000000000298a0 t hci_read_page_scan_mode 0000000000029710 t hci_read_page_scan_period_mode 0000000000028110 t hci_read_page_timeout 00000000000274d0 t hci_read_pin_type 0000000000024af0 t hci_read_remote_supported_features 0000000000024d10 t hci_read_remote_version_information 000000000002a570 t hci_read_rssi 00000000000282b0 t hci_read_scan_enable 0000000000029320 t hci_read_sco_flow_control_enable 0000000000027670 t hci_read_stored_link_key 0000000000028d60 t hci_read_voice_settings 0000000000023380 T hci_recv 0000000000024860 t hci_remote_name_request 0000000000023030 T hci_request 0000000000027440 t hci_reset 000000000002a370 t hci_reset_failed_contact_counter 000000000002b070 t hci_reset_node_stat 000000000002c5a0 T hci_role2str 0000000000023580 t hci_role_discovery 000000000002bef0 T hci_scan2str 00000000000232f0 T hci_send 0000000000023560 T hci_simple_request 000000000002c4c0 T hci_status2str 00000000000236b0 t hci_switch_role 000000000002bf80 T hci_vdata2str 000000000002c070 T hci_ver2str 0000000000028940 t hci_write_authentication_enable 0000000000028c70 t hci_write_class_of_device 0000000000028030 t hci_write_connection_accept_timeout 000000000002abf0 t hci_write_debug_level 0000000000028ae0 t hci_write_encryption_mode 0000000000029240 t hci_write_hold_mode_activity 0000000000028750 t hci_write_inquiry_scan_activity 0000000000029af0 t hci_write_le_host_support 00000000000239d0 t hci_write_link_policy_settings 00000000000295f0 t hci_write_link_supervision_timeout 000000000002a710 T hci_write_node_link_policy_settings_mask 000000000002a820 T hci_write_node_packet_mask 000000000002a930 T hci_write_node_role_switch 0000000000029040 t hci_write_number_broadcast_retransmissions 0000000000028530 t hci_write_page_scan_activity 0000000000029950 t hci_write_page_scan_mode 00000000000297c0 t hci_write_page_scan_period_mode 00000000000281d0 t hci_write_page_timeout 0000000000027590 t hci_write_pin_type 0000000000028370 t hci_write_scan_enable 00000000000293e0 t hci_write_sco_flow_control_enable 0000000000027ab0 t hci_write_stored_link_key 0000000000028ec0 t hci_write_voice_settings 00000000000308b0 D host_controller_baseband_commands 0000000000030c90 D info_commands U ioctl 00000000000265c0 t le_add_device_to_white_list 0000000000026510 t le_clear_white_list 00000000000306b0 D le_commands 00000000000269a0 t le_connect 00000000000250c0 t le_enable 0000000000026ff0 t le_rand 0000000000025a30 t le_read_advertising_channel_tx_power 0000000000025e10 t le_read_buffer_size 0000000000026d10 t le_read_channel_map 0000000000025290 t le_read_local_supported_features 0000000000026e90 t le_read_remote_features 0000000000025460 t le_read_supported_states 0000000000026460 t le_read_white_list_size 00000000000267b0 t le_remove_device_from_white_list 0000000000025fb0 t le_scan 0000000000025d10 t le_set_advertising_data 0000000000025910 t le_set_advertising_enable 0000000000025ae0 t le_set_advertising_param 0000000000025610 t le_set_scan_enable 0000000000025740 t le_set_scan_param 0000000000025510 t le_set_scan_response 00000000000305c0 D link_control_commands 0000000000030540 D link_policy_commands 000000000002b490 T main U memcpy U memset 0000000000030dc0 D node_commands 000000000003116c B numeric_bdaddr U optarg U optind U optreset 00000000000270a0 t parse_param 000000000002c7f0 T print_adv_data U printf U recv 0000000000023000 t register_classes 000000000002032c r reltable.hci_addrtype2str 00000000000201f4 r reltable.hci_cc2str 000000000001de9c r reltable.hci_coding2str 00000000000201fc r reltable.hci_con_state2str 000000000001de7c r reltable.hci_link2str 000000000001deec r reltable.hci_lmpver2str 000000000001df1c r reltable.hci_manufacturer2str 0000000000020344 r reltable.hci_mc_accuracy2str 000000000001de84 r reltable.hci_pin2str 000000000002033c r reltable.hci_role2str 000000000001de8c r reltable.hci_scan2str 000000000002020c r reltable.hci_status2str 000000000001deac r reltable.hci_vdata2str 000000000001debc r reltable.hci_ver2str U select U send U setsockopt U snprintf U socket U sscanf 0000000000030d40 D status_commands U strcasecmp U strchr U strcmp U strdup U strerror U strlcat U strlcpy U strlen U strncasecmp U strncat U strncpy U strsep U strtod U strtol U sysctl U sysctlnametomib 0000000000031170 B timeout U uuid_to_string 0000000000031168 B verbose

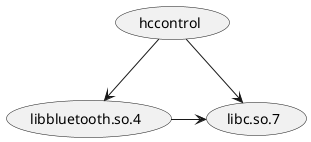

Dependencies

# ldd hccontrol hccontrol: libbluetooth.so.4 => /usr/lib/libbluetooth.so.4 (0x1b8411853000) libc.so.7 => /lib/libc.so.7 (0x1b84132b9000) [vdso] (0x1b840ffd6000)

# ldd /usr/lib/libbluetooth.so.4 /usr/lib/libbluetooth.so.4: libc.so.7 => /lib/libc.so.7 (0x78d2302d000)

usbconfig

• Utility used to configure and dump information about the USB subsystem

Binary Name:	usbconfig
Size	21K
Source path	/usr/src/usr.sbin/usbconfig
Binary path	usr/sbin/usbconfig /usr/obj/usr/src/amd64.amd64/usr.sbin/usbconfig/usbconfig
List of C files:	usbconfig.c dump.c
NM symbols list:	See the full content of nm output U LIBUSB20_CONTROL_SETUP_FORMAT U _CurrentRuneLocale 0000000000008c20 d _DYNAMIC w _Jv_RegisterClasses U _ThreadRuneLocale 00000000000089f8 d __CTOR_END__ 00000000000089f0 d __CTOR_LIST__ 0000000000008a08 d __DTOR_END__ 0000000000008a00 d __DTOR_LIST__ 0000000000008a10 d __JCR_END__ 0000000000008a10 d __JCR_LIST__ w __cxa_finalize 0000000000007580 t __do_global_ctors_aux 0000000000004550 t __do_global_dtors_aux 0000000000009e28 d __dso_handle U __error U __isthreaded U __libc_start1 U __mb_sb_limit 0000000000009e20 D __progname U __stack_chk_fail U __stack_chk_guard U __stderrp U __stdoutp U __swbuf 000000000000a0a8 b _device_desc.usb_vendors 00000000000075b8 T _fini 00000000000075ac T _init 0000000000004520 T _start U asprintf 0000000000006680 T dump_be_dev_quirks 00000000000065b0 T dump_be_quirk_names 0000000000006de0 T dump_config 0000000000006770 T dump_device_desc 0000000000005fa0 T dump_device_info 00000000000074e0 T dump_device_stats 0000000000007030 t dump_extra 00000000000068e0 t dump_field 0000000000007190 t dump_iface 0000000000005f20 T dump_mode 0000000000005f70 T dump_power_mode 0000000000005f40 T dump_speed 00000000000073c0 T dump_string_by_index 000000000000a050 B environ U err U errx U exit U fclose U ferror U fgets 0000000000005550 t flush_command U fopen U fprintf U free U fwrite U getenv U getopt U libusb20_be_add_dev_quirk U libusb20_be_alloc_default U libusb20_be_device_foreach U libusb20_be_free U libusb20_be_get_dev_quirk U libusb20_be_get_quirk_name U libusb20_be_get_template U libusb20_be_remove_dev_quirk U libusb20_be_set_template U libusb20_desc_foreach U libusb20_dev_alloc_config U libusb20_dev_close U libusb20_dev_detach_kernel_driver U libusb20_dev_get_address U libusb20_dev_get_bus_number U libusb20_dev_get_config_index U libusb20_dev_get_desc U libusb20_dev_get_device_desc U libusb20_dev_get_iface_desc U libusb20_dev_get_mode U libusb20_dev_get_power_mode U libusb20_dev_get_power_usage U libusb20_dev_get_speed U libusb20_dev_get_stats U libusb20_dev_open U libusb20_dev_req_string_simple_sync U libusb20_dev_req_string_sync U libusb20_dev_request_sync U libusb20_dev_reset U libusb20_dev_set_alt_index U libusb20_dev_set_config_index U libusb20_dev_set_power_mode 00000000000045d0 T main U malloc U optarg U optind 000000000000a058 b options U printf U putc U putchar U puts 00000000000045a0 t register_classes U sscanf U strcasecmp U strchr U strcmp U strdup U strlcpy U strlen U strncmp U strtoul 0000000000008a20 d token

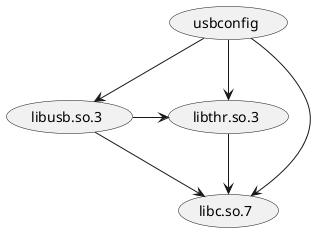

Dependencies

# ldd usbconfig usbconfig: libusb.so.3 => /usr/lib/libusb.so.3 (0x18598f581000) libc.so.7 => /lib/libc.so.7 (0x185991585000) libthr.so.3 => /lib/libthr.so.3 (0x18598f8c4000) [vdso] (0x18598e801000)

# ldd /usr/lib/libusb.so.3 /usr/lib/libusb.so.3: libthr.so.3 => /lib/libthr.so.3 (0x2db61263f000) libc.so.7 => /lib/libc.so.7 (0x2db6110cf000)

# ldd /lib/libthr.so.3 /lib/libthr.so.3: libc.so.7 => /lib/libc.so.7 (0x379a82570000)

virtual_oss

• Audio mixing application that multiplexes and demultiplexes a single OSS device into multiple customizable OSS compatible devices using character devices from userspace

Binary Name:	virtual_oss
Size	73K
Source path	/usr/ports/audio/virtual_oss/work/virtual_oss-1.3.1
Binary path	/usr/local/sbin/virtual_oss
List of C files:	virtual_audio_delay.c virtual_compressor.c virtual_ctl.c virtual_eq.c virtual_format.c virtual_main.c virtual_mul.c virtual_oss.c virtual_ring.c backend_oss.c backend_null.c backend_bt.c avdtp.c sbc_encode.c bt_speaker.c virtual_equalizer.c virtual_command.c
NM symbols list:	See the full content of nm output U FreeBSD_nvlist_add_number U FreeBSD_nvlist_add_nvlist U FreeBSD_nvlist_add_string U FreeBSD_nvlist_add_stringf U FreeBSD_nvlist_append_nvlist_array U FreeBSD_nvlist_create U FreeBSD_nvlist_destroy U FreeBSD_nvlist_error U FreeBSD_nvlist_free_string U FreeBSD_nvlist_pack 000000000001d750 d _DYNAMIC w _Jv_RegisterClasses 000000000001d698 d __CTOR_END__ 000000000001d690 d __CTOR_LIST__ 000000000001d6a8 d __DTOR_END__ 000000000001d6a0 d __DTOR_LIST__ 000000000001d6b0 d __JCR_END__ 000000000001d6b0 d __JCR_LIST__ U __assert w __cxa_finalize 000000000001bf80 t __do_global_ctors_aux 0000000000007e00 t __do_global_dtors_aux 000000000001e9a8 d __dso_handle U __error U __libc_start1 000000000001e9a0 D __progname U __stack_chk_fail U __stack_chk_guard U __stderrp 000000000001bfb8 T _fini 000000000001bfac T _init 0000000000007dd0 T _start U accept U accept4 U acos U alarm U asin U atoi 000000000001f6b8 b atomic_cv 000000000000af20 T atomic_lock 000000000001f6b0 b atomic_mtx 000000000000af40 T atomic_unlock 000000000000af60 T atomic_wait 000000000000af80 T atomic_wakeup 00000000000157f0 T avdtpACPFree 0000000000015820 T avdtpACPHandlePacket 0000000000015780 T avdtpAbort 00000000000156a0 T avdtpClose 0000000000014f90 T avdtpDiscoverAndConfig 0000000000015d60 t avdtpGetPacket 00000000000155c0 T avdtpOpen 0000000000014dd0 T avdtpSendAccept 0000000000014d30 T avdtpSendCapabilitiesResponseSBCForACP 0000000000014f00 T avdtpSendDiscResponseAudio 0000000000014e60 T avdtpSendReject 0000000000015380 t avdtpSendSyncCommand 000000000003f8f8 b avdtpSendSyncCommand.transLabel 0000000000015550 T avdtpSetConfiguration 0000000000015630 T avdtpStart 0000000000015710 T avdtpSuspend 000000000003f900 b be_silent U bind U bt_aton 0000000000004d58 r bt_attrs U bt_gethostbyname 000000000003f8fc b bt_in_background 00000000000143c0 t bt_open 000000000002f8b8 b bt_play_cfg 00000000000140d0 t bt_play_close 00000000000143b0 t bt_play_delay 0000000000013fe0 t bt_play_open 0000000000014150 t bt_play_transfer 000000000001f878 b bt_rec_cfg 0000000000013f60 t bt_rec_close 0000000000013fd0 t bt_rec_delay 0000000000013ef0 t bt_rec_open 0000000000013fb0 t bt_rec_transfer 0000000000013d50 T bt_receive 000000000001a150 T bt_speaker_main 000000000001eaf0 d bt_speaker_opts 00000000000199b0 t calc_bitneed U calloc U clock_gettime U close 000000000001bc80 T command_main U connect U cos 0000000000005180 r cosdata4 0000000000004f80 r cosdata8 00000000000054c0 r cosdecdata4 00000000000052c0 r cosdecdata8 U cuse_copy_in U cuse_copy_out U cuse_dev_create U cuse_dev_get_per_file_handle U cuse_dev_get_priv0 U cuse_dev_set_per_file_handle U cuse_got_peer_signal U cuse_init U cuse_poll_wakeup U cuse_wait_and_process U daemon 000000000000dea0 t dup_profile 000000000001f020 B environ 000000000001b420 t equalizer_load 000000000001ad50 T equalizer_main 000000000001ebb0 d equalizer_opts U errx U exit U feature_present U fftw_destroy_plan U fftw_execute U fftw_plan_r2r_1d 000000000000a350 T format_export 000000000000a170 T format_import 000000000000a690 T format_max 000000000000a6d0 T format_maximum 000000000000aa20 T format_remix 000000000000ac90 T format_silence U fprintf U free U fwrite U getopt U getopt_long U getpid U getsockopt U ioctl U listen U log 0000000000005280 r loudnessoffset4 0000000000005200 r loudnessoffset8 000000000000da30 T main U malloc U memcpy U memmove U memset 000000000001a5a0 t message 000000000001b350 t message 000000000001bec0 t message 0000000000013ce0 t null_close 0000000000013d30 t null_delay 0000000000013cb0 t null_open 0000000000013d40 t null_play_transfer 0000000000013cf0 t null_rec_transfer U open U optarg U optind U optreset 0000000000013840 t oss_close 0000000000013990 t oss_open 0000000000013950 t oss_play_delay 0000000000013920 t oss_play_open 0000000000013940 t oss_play_transfer 00000000000138f0 t oss_rec_delay 0000000000013820 t oss_rec_open 0000000000013870 t oss_rec_transfer 000000000000c850 t parse_options U poll U printf 000000000001a670 t process_connection U pthread_cond_broadcast U pthread_cond_init U pthread_cond_wait U pthread_create U pthread_mutex_init U pthread_mutex_lock U pthread_mutex_unlock U puts U read 0000000000007e50 t register_classes U roundf U rtprio 0000000000004ee0 r sbc_coeffs4 0000000000004da0 r sbc_coeffs8 0000000000017a90 T sbc_decode_frame 0000000000015eb0 T sbc_encode_frame U sdp_close U sdp_error U sdp_open U sdp_open_local U sdp_register_service U sdp_search U sdp_unregister_service U setsockopt U signal U sin U sleep U snprintf U socket U src_delete U src_new U src_process U sscanf U strcmp U strerror U strlcpy U strlen U strncasecmp U strncmp U strncpy U strtok_r U system U time U usleep 000000000000b240 T vclient_alloc 000000000000afe0 T vclient_bufsize_scaled 000000000000e550 t vclient_close 0000000000009f50 T vclient_eq_alloc 000000000000a0e0 T vclient_eq_free 000000000000b750 T vclient_export_read_locked 000000000000b140 T vclient_free 000000000000b280 T vclient_get_default_fmt 000000000000c1c0 T vclient_import_write_locked 000000000000fd40 t vclient_input_delay 000000000000ea10 t vclient_ioctl_oss 000000000000ff80 t vclient_ioctl_wav 000000000000b0e0 T vclient_noise 000000000000e540 t vclient_open_oss 000000000000fbe0 t vclient_open_sub 000000000000ff60 t vclient_open_wav 000000000001d6f0 d vclient_oss_methods 000000000000fd80 t vclient_output_delay 000000000000fea0 t vclient_output_delay_adjusted 000000000000fb20 t vclient_poll 000000000000e630 t vclient_read 00000000000133c0 t vclient_read_linear 0000000000009c50 T vclient_rx_equalizer 000000000000afa0 T vclient_sample_bytes 000000000000b2d0 T vclient_setup_buffers 0000000000009960 T vclient_tx_equalizer 000000000001d720 d vclient_wav_methods 00000000000132e0 t vclient_write_linear 000000000000e820 t vclient_write_oss 000000000000ff70 t vclient_write_wav 0000000000008820 t vctl_close 0000000000008830 t vctl_ioctl 000000000001d6c0 D vctl_methods 0000000000008810 t vctl_open U vfprintf 00000000000100e0 t virtual_cuse_hup 00000000000100b0 t virtual_cuse_process 000000000001f6e8 B virtual_monitor_input 000000000001f708 B virtual_monitor_local 000000000001f6f8 B virtual_monitor_output 00000000000111c0 T virtual_oss_delay_ns 0000000000012db0 t virtual_oss_mixer_core 0000000000011310 T virtual_oss_process 00000000000112c0 T virtual_oss_timestamp 0000000000011200 T virtual_oss_wait 000000000000de80 t virtual_pipe 000000000001f6c8 B virtual_profile_client_head 000000000001f6d8 B virtual_profile_loopback_head 000000000000b070 T vmonitor_alloc 000000000001f028 b voss_ad.0 000000000001f030 b voss_ad.1 000000000001f078 b voss_ad.10 000000000001f080 b voss_ad.11 000000000001f088 b voss_ad.12 000000000001f090 b voss_ad.13 000000000001f098 b voss_ad.14 000000000001f038 b voss_ad.2 000000000001f040 b voss_ad.3 000000000001f048 b voss_ad.4 000000000001f050 b voss_ad.5 000000000001f058 b voss_ad.6 000000000001f060 b voss_ad.7 000000000001f068 b voss_ad.8 000000000001f070 b voss_ad.9 000000000001f0a1 B voss_ad_enabled 00000000000084b0 T voss_ad_getput_sample 0000000000007f10 T voss_ad_init 000000000001f0a2 B voss_ad_input_channel 000000000001f09c B voss_ad_last_delay 000000000001f0a3 B voss_ad_output_channel 000000000001f0a0 B voss_ad_output_signal 0000000000007e80 T voss_ad_reset 000000000000c700 T voss_add_options 000000000001e9bc d voss_add_options.name 000000000001eab8 D voss_backend_bt_play 000000000001ea88 D voss_backend_bt_rec 000000000001ea58 D voss_backend_null_play 000000000001ea28 D voss_backend_null_rec 000000000001e9f8 D voss_backend_oss_play 000000000001e9c8 D voss_backend_oss_rec 00000000000086f0 T voss_compressor 000000000001f7c0 B voss_ctl_device 000000000001f7ac b voss_do_background 000000000001f804 B voss_dsp_bits 000000000001f7a4 B voss_dsp_max_channels 000000000001f720 B voss_dsp_rx_device 000000000001f810 B voss_dsp_rx_refresh 000000000001f6c4 B voss_dsp_sample_rate 000000000001f6c0 B voss_dsp_samples 000000000001f760 B voss_dsp_tx_device 000000000001f814 B voss_dsp_tx_refresh 000000000001f800 b voss_dups 000000000001f80c B voss_has_synchronization 000000000001f4b0 B voss_input_peak 000000000001e9b8 D voss_is_recording 000000000001f864 B voss_jitter_down 000000000001f860 B voss_jitter_up 000000000001f808 B voss_libsamplerate_enable 000000000001e9b4 D voss_libsamplerate_quality 000000000001f7a8 B voss_max_channels 000000000001f7a0 B voss_mix_channels 000000000001f0b0 B voss_output_compressor_gain 000000000001e9b0 D voss_output_compressor_param 000000000001f2b0 B voss_output_peak 000000000001f7b0 b voss_pid_path 000000000001f868 B voss_rx_backend 000000000001f820 B voss_sta_device 000000000001f870 B voss_tx_backend 0000000000010100 T voss_x3_multiply_double 0000000000010200 t voss_x3_multiply_sub_double 000000000000c0d0 t vresample_setup 00000000000134c0 T vring_alloc 0000000000013510 T vring_free 0000000000013560 T vring_get_read 0000000000013590 T vring_get_write 00000000000135e0 T vring_inc_read 0000000000013600 T vring_inc_write 00000000000136d0 T vring_read_linear 0000000000013540 T vring_reset 0000000000013610 T vring_total_read_len 0000000000013620 T vring_total_write_len 0000000000013630 T vring_write_linear 0000000000013790 T vring_write_zero U warn U write U writev

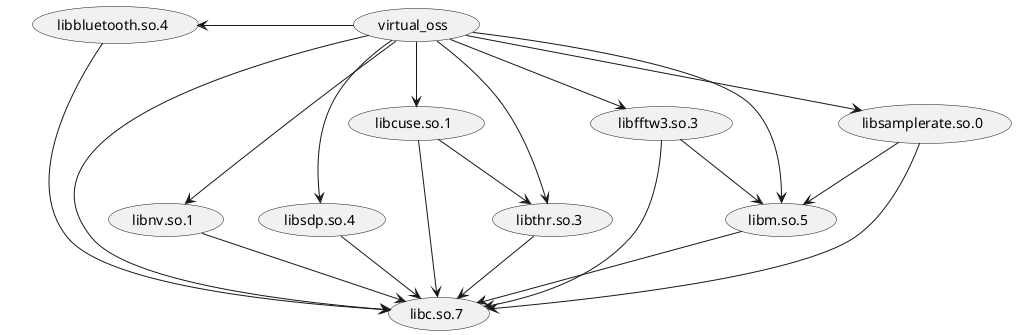

Dependencies

# ldd virtual_oss virtual_oss: libnv.so.1 => /lib/libnv.so.1 (0x197b142fc000) libbluetooth.so.4 => /usr/lib/libbluetooth.so.4 (0x197b14403000) libsdp.so.4 => /usr/lib/libsdp.so.4 (0x197b14dea000) libfftw3.so.3 => /usr/local/lib/libfftw3.so.3 (0x197b1546f000) libthr.so.3 => /lib/libthr.so.3 (0x197b1709e000) libm.so.5 => /lib/libm.so.5 (0x197b15fa3000) libsamplerate.so.0 => /usr/local/lib/libsamplerate.so.0 (0x197b181d0000) libcuse.so.1 => /usr/lib/libcuse.so.1 (0x197b160a0000) libc.so.7 => /lib/libc.so.7 (0x197b18b55000) [vdso] (0x197b12d91000)

# ldd /lib/libnv.so.1 /lib/libnv.so.1: libc.so.7 => /lib/libc.so.7 (0xbdae7d16000)

# ldd /usr/lib/libbluetooth.so.4 /usr/lib/libbluetooth.so.4: libc.so.7 => /lib/libc.so.7 (0x3ec976949000)

# ldd /usr/lib/libsdp.so.4 /usr/lib/libsdp.so.4: libc.so.7 => /lib/libc.so.7 (0x31858168d000)

# ldd /usr/local/lib/libfftw3.so.3 /usr/local/lib/libfftw3.so.3: libm.so.5 => /lib/libm.so.5 (0x2522dafbe000) libc.so.7 => /lib/libc.so.7 (0x2522da99c000)

# ldd /usr/local/lib/libsamplerate.so.0 /usr/local/lib/libsamplerate.so.0: libm.so.5 => /lib/libm.so.5 (0x27ae39c94000) libc.so.7 => /lib/libc.so.7 (0x27ae3a994000)

# ldd /usr/lib/libcuse.so.1 /usr/lib/libcuse.so.1: libthr.so.3 => /lib/libthr.so.3 (0x10ba031b9000) libc.so.7 => /lib/libc.so.7 (0x10ba010e3000)

# ldd /lib/libm.so.5 /lib/libm.so.5: libc.so.7 => /lib/libc.so.7 (0x2ad1690ce000)

# ldd /lib/libthr.so.3 /lib/libthr.so.3: libc.so.7 => /lib/libc.so.7 (0x24d65707c000)

Kernel & Driver modules

List of driver modules

1. ng_ubt.ko

• Driver for Bluetooth USB devices

Size:	21K
Source path:	/usr/src/sys/netgraph/bluetooth/drivers/ubt
Module path:	usr/obj/usr/src/amd64.amd64/sys/modules/netgraph/bluetooth/ubt/ng_ubt.ko
List of C files:	ng_ubt.c ng_ubt_intel.c
NM symbols list:	See the full content of nm output U M_NETGRAPH_MSG U M_TEMP U __mtx_lock_flags U __mtx_unlock_flags 0000000000000058 r __set_modmetadata_set_sym__mod_metadata_md_ng_ubt_intel_on_netgraph 0000000000000060 r __set_modmetadata_set_sym__mod_metadata_md_ng_ubt_intel_on_ng_hci 0000000000000068 r __set_modmetadata_set_sym__mod_metadata_md_ng_ubt_intel_on_usb 0000000000000048 r __set_modmetadata_set_sym__mod_metadata_md_ng_ubt_intel_uhub 0000000000000040 r __set_modmetadata_set_sym__mod_metadata_md_ng_ubt_intel_uhub_on_kernel 0000000000000018 r __set_modmetadata_set_sym__mod_metadata_md_ng_ubt_on_netgraph 0000000000000028 r __set_modmetadata_set_sym__mod_metadata_md_ng_ubt_on_ng_bluetooth 0000000000000020 r __set_modmetadata_set_sym__mod_metadata_md_ng_ubt_on_ng_hci 0000000000000030 r __set_modmetadata_set_sym__mod_metadata_md_ng_ubt_on_usb 0000000000000008 r __set_modmetadata_set_sym__mod_metadata_md_ng_ubt_uhub 0000000000000000 r __set_modmetadata_set_sym__mod_metadata_md_ng_ubt_uhub_on_kernel 0000000000000038 r __set_modmetadata_set_sym__mod_metadata_md_uhub_pnpinfo_ubt_devs 0000000000000050 r __set_modmetadata_set_sym__mod_metadata_ng_ubt_intel_version 0000000000000010 r __set_modmetadata_set_sym__mod_metadata_ng_ubt_version 0000000000000000 r __set_sysctl_set_sym_sysctl___net_bluetooth_usb_isoc_enable 0000000000000008 d __set_sysinit_set_sym_ng_ubt_intel_uhubmodule_sys_init 0000000000000000 d __set_sysinit_set_sym_ng_ubt_uhubmodule_sys_init w __start_set_modmetadata_set U __start_set_pcpu w __start_set_sysctl_set w __start_set_sysinit_set w __stop_set_modmetadata_set U __stop_set_pcpu w __stop_set_sysctl_set w __stop_set_sysinit_set 0000000000000348 d _mod_metadata_md_ng_ubt_intel_on_netgraph 0000000000000360 d _mod_metadata_md_ng_ubt_intel_on_ng_hci 0000000000000378 d _mod_metadata_md_ng_ubt_intel_on_usb 00000000000002f8 d _mod_metadata_md_ng_ubt_intel_uhub 00000000000002e0 d _mod_metadata_md_ng_ubt_intel_uhub_on_kernel 0000000000000108 d _mod_metadata_md_ng_ubt_on_netgraph 0000000000000138 d _mod_metadata_md_ng_ubt_on_ng_bluetooth 0000000000000120 d _mod_metadata_md_ng_ubt_on_ng_hci 0000000000000150 d _mod_metadata_md_ng_ubt_on_usb 00000000000000b8 d _mod_metadata_md_ng_ubt_uhub 00000000000000a0 d _mod_metadata_md_ng_ubt_uhub_on_kernel 0000000000000168 d _mod_metadata_md_uhub_pnpinfo_ubt_devs 0000000000000330 d _mod_metadata_ng_ubt_intel_version 00000000000000f0 d _mod_metadata_ng_ubt_version 0000000000000430 r _module_pnp_uhub_ubt_devs U _mtx_destroy U _mtx_init 0000000000000264 d _ng_ubt_depend_on_netgraph 000000000000027c d _ng_ubt_depend_on_ng_bluetooth 0000000000000270 d _ng_ubt_depend_on_ng_hci 0000000000000288 d _ng_ubt_depend_on_usb 00000000000003ec d _ng_ubt_intel_depend_on_netgraph 00000000000003f8 d _ng_ubt_intel_depend_on_ng_hci 0000000000000404 d _ng_ubt_intel_depend_on_usb 0000000000000390 d _ng_ubt_intel_uhub_depend_on_kernel 00000000000003e8 d _ng_ubt_intel_version 0000000000000208 d _ng_ubt_uhub_depend_on_kernel 0000000000000260 d _ng_ubt_version U _sleep U device_attach_desc U device_detach_desc U device_get_ivars U device_get_nameunit U device_get_softc U device_printf U device_probe_desc U device_set_usb_desc U driver_module_handler U free U m_adj U m_clget U m_freem U malloc U memcpy U memset U module_register_init U ng_address_ID U ng_address_hook U ng_free_item U ng_make_node_common U ng_name_node U ng_newtype U ng_package_data U ng_parse_int32_type U ng_parse_struct_type U ng_parse_uint16_type U ng_parse_uint32_type U ng_rmnode_self U ng_rmtype U ng_snd_item 00000000000000a0 r ng_ubt_cmdlist 0000000000000f50 t ng_ubt_connect 0000000000000a00 t ng_ubt_constructor 0000000000001250 t ng_ubt_disconnect 00000000000003b8 d ng_ubt_intel_uhub_driver_mod 00000000000003a0 d ng_ubt_intel_uhub_mod 0000000000000310 d ng_ubt_intel_uhubmodule_sys_init 0000000000000ec0 t ng_ubt_newhook 0000000000000180 r ng_ubt_node_qlen_type 00000000000001f0 r ng_ubt_node_qlen_type_fields 00000000000001b8 r ng_ubt_node_stat_type 0000000000000240 r ng_ubt_node_stat_type_fields 0000000000000fe0 t ng_ubt_rcvdata 0000000000000a10 t ng_ubt_rcvmsg 0000000000000e90 t ng_ubt_shutdown 0000000000000230 d ng_ubt_uhub_driver_mod 0000000000000218 d ng_ubt_uhub_mod 00000000000000d0 d ng_ubt_uhubmodule_sys_init U ng_unref_hook U ng_unref_node 0000000000000180 d ng_usb_isoc_enable U panic U printf U snprintf U strcmp U sysctl___net_bluetooth 0000000000000000 d sysctl___net_bluetooth_usb_isoc_enable U sysctl_handle_int U taskqueue_drain U taskqueue_enqueue U taskqueue_swi 0000000000000188 d typestruct 0000000000000300 t ubt_attach 00000000000002a0 d ubt_baseclasses 00000000000015f0 t ubt_bulk_read_callback 0000000000001400 t ubt_bulk_write_callback 00000000000002f0 r ubt_config 0000000000001ab0 t ubt_ctrl_write_callback 00000000000006d0 t ubt_detach 0000000000000440 r ubt_devs 0000000000000000 t ubt_do_hci_request 0000000000000030 r ubt_do_hci_request.ubt_probe_config 0000000000000070 d ubt_driver 0000000000002220 t ubt_fwd_mbuf_up 0000000000000000 r ubt_ignore_devs 0000000000000780 r ubt_intel_devs 0000000000002470 t ubt_intel_do_hci_request 00000000000002b0 d ubt_intel_driver 0000000000000de0 r ubt_intel_methods 0000000000002390 t ubt_intel_probe 0000000000001850 t ubt_intr_read_callback 0000000000001cf0 t ubt_isoc_read_callback 0000000000001f90 t ubt_isoc_write_callback 0000000000000060 r ubt_methods 0000000000002320 t ubt_modevent 0000000000000280 t ubt_probe 00000000000001b0 t ubt_probe_intr_callback 0000000000000830 t ubt_task U uma_zalloc_arg U usb_desc_foreach U usbd_copy_in U usbd_copy_out U usbd_do_request_flags U usbd_errstr U usbd_get_config_descriptor U usbd_get_iface U usbd_get_max_frame_length U usbd_get_speed U usbd_lookup_id_by_info U usbd_lookup_id_by_uaa U usbd_m_copy_in U usbd_set_alt_interface_index U usbd_set_parent_iface U usbd_transfer_drain U usbd_transfer_setup U usbd_transfer_start U usbd_transfer_stop U usbd_transfer_submit U usbd_transfer_unsetup U usbd_xfer_frame_len U usbd_xfer_get_frame U usbd_xfer_max_framelen U usbd_xfer_max_len U usbd_xfer_set_frame_len U usbd_xfer_set_frames U usbd_xfer_set_stall U usbd_xfer_softc U usbd_xfer_state U usbd_xfer_status U wakeup U zone_mbuf

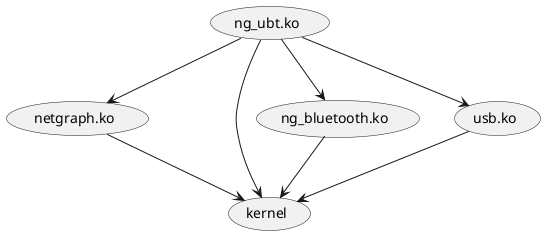

Dependencies

2. netgraph.ko

• The netgraph system provides a uniform and modular system for the implementation of kernel objects which perform various networking function

Size:	57K
Source path:	/usr/src/sys/netgraph
Binary path:	/usr/obj/usr/src/amd64.amd64/sys/modules/netgraph/netgraph/netgraph.ko
List of C files:	ng_base.c ng_parse.c
NM symbols list:	See the full content of nm output 00000000000001c0 D M_NETGRAPH 0000000000000450 d M_NETGRAPH_HOOK 0000000000000320 d M_NETGRAPH_HOOK_init_sys_init 0000000000000340 d M_NETGRAPH_HOOK_uninit_sys_uninit 0000000000000840 d M_NETGRAPH_ITEM 00000000000003a0 d M_NETGRAPH_ITEM_init_sys_init 00000000000003c0 d M_NETGRAPH_ITEM_uninit_sys_uninit 0000000000000270 D M_NETGRAPH_MSG 00000000000002e0 d M_NETGRAPH_MSG_init_sys_init 0000000000000300 d M_NETGRAPH_MSG_uninit_sys_uninit 00000000000003e0 d M_NETGRAPH_NODE 0000000000000360 d M_NETGRAPH_NODE_init_sys_init 0000000000000380 d M_NETGRAPH_NODE_uninit_sys_uninit 0000000000000980 d M_NETGRAPH_PARSE 0000000000000940 d M_NETGRAPH_PARSE_init_sys_init 0000000000000960 d M_NETGRAPH_PARSE_uninit_sys_uninit 0000000000000230 d M_NETGRAPH_init_sys_init 0000000000000250 d M_NETGRAPH_uninit_sys_uninit U __mtx_lock_sleep U __mtx_unlock_sleep U __rw_rlock_int U __rw_wlock_hard U __rw_wunlock_hard 0000000000000010 r __set_modmetadata_set_sym__mod_metadata_md_netgraph 0000000000000008 r __set_modmetadata_set_sym__mod_metadata_md_netgraph_on_kernel 0000000000000000 r __set_modmetadata_set_sym__mod_metadata_netgraph_version 0000000000000018 r __set_sysctl_set_sym_sysctl___net_graph 0000000000000020 r __set_sysctl_set_sym_sysctl___net_graph_abi_version 0000000000000008 r __set_sysctl_set_sym_sysctl___net_graph_maxalloc 0000000000000010 r __set_sysctl_set_sym_sysctl___net_graph_maxdata 0000000000000028 r __set_sysctl_set_sym_sysctl___net_graph_msg_version 0000000000000000 r __set_sysctl_set_sym_sysctl___net_graph_threads 0000000000000010 d __set_sysinit_set_sym_M_NETGRAPH_HOOK_init_sys_init 0000000000000020 d __set_sysinit_set_sym_M_NETGRAPH_ITEM_init_sys_init 0000000000000008 d __set_sysinit_set_sym_M_NETGRAPH_MSG_init_sys_init 0000000000000018 d __set_sysinit_set_sym_M_NETGRAPH_NODE_init_sys_init 0000000000000040 d __set_sysinit_set_sym_M_NETGRAPH_PARSE_init_sys_init 0000000000000000 d __set_sysinit_set_sym_M_NETGRAPH_init_sys_init 0000000000000038 d __set_sysinit_set_sym_netgraphmodule_sys_init 0000000000000028 d __set_sysinit_set_sym_vnet_init_vnet_netgraph_init_sys_init 0000000000000030 d __set_sysinit_set_sym_vnet_uninit_vnet_netgraph_uninit_sys_init 0000000000000010 d __set_sysuninit_set_sym_M_NETGRAPH_HOOK_uninit_sys_uninit 0000000000000020 d __set_sysuninit_set_sym_M_NETGRAPH_ITEM_uninit_sys_uninit 0000000000000008 d __set_sysuninit_set_sym_M_NETGRAPH_MSG_uninit_sys_uninit 0000000000000018 d __set_sysuninit_set_sym_M_NETGRAPH_NODE_uninit_sys_uninit 0000000000000038 d __set_sysuninit_set_sym_M_NETGRAPH_PARSE_uninit_sys_uninit 0000000000000000 d __set_sysuninit_set_sym_M_NETGRAPH_uninit_sys_uninit 0000000000000028 d __set_sysuninit_set_sym_vnet_init_vnet_netgraph_init_sys_uninit 0000000000000030 d __set_sysuninit_set_sym_vnet_uninit_vnet_netgraph_uninit_sys_uninit U __stack_chk_fail U __stack_chk_guard w __start_set_modmetadata_set U __start_set_pcpu w __start_set_sysctl_set w __start_set_sysinit_set w __start_set_sysuninit_set U __start_set_vnet w __stop_set_modmetadata_set U __stop_set_pcpu w __stop_set_sysctl_set w __stop_set_sysinit_set w __stop_set_sysuninit_set U __stop_set_vnet U _callout_stop_safe U _epoch_enter_preempt U _epoch_exit_preempt 00000000000006a8 d _mod_metadata_md_netgraph 0000000000000690 d _mod_metadata_md_netgraph_on_kernel 0000000000000000 d _mod_metadata_netgraph_version U _mtx_destroy U _mtx_init 0000000000000908 d _netgraph_depend_on_kernel 0000000000000830 d _netgraph_version U _rw_init_flags U _rw_runlock_cookie_int U _sleep U callout_reset_sbt_on U free U hashdestroy U hashinit U hashinit_flags U kproc_kthread_add U lockstat_enabled U log U m_freem U malloc U malloc_init U malloc_uninit 00000000000008b0 d maxalloc 00000000000008b4 d maxdata U memcmp U memcpy U memmove U memset U module_register_init U mp_ncpus U net_epoch_preempt 0000000000000918 d netgraph_mod 00000000000006c0 d netgraphmodule_sys_init 0000000000005160 t ng_add_hook 00000000000042a0 T ng_address_ID 0000000000004130 T ng_address_hook 0000000000004200 T ng_address_path 0000000000002840 t ng_apply_item 0000000000005d10 t ng_array_getAlign 0000000000005cd0 t ng_array_getDefault 0000000000005ca0 t ng_array_parse 0000000000005cc0 t ng_array_unparse 0000000000001850 T ng_bypass 0000000000006d00 t ng_bytearray_getDefault 0000000000006b10 t ng_bytearray_parse 0000000000006c80 t ng_bytearray_unparse 0000000000004720 T ng_callout 0000000000004830 t ng_callout_trampoline 0000000000004e20 t ng_con_nodes 0000000000004970 t ng_con_part2 0000000000004b80 t ng_con_part3 00000000000004b0 r ng_connect_type_fields 0000000000000150 D ng_deadhook 0000000000000098 D ng_deadnode 0000000000000018 D ng_deadtype 00000000000009e0 T ng_destroy_hook 0000000000006860 t ng_enaddr_parse 0000000000006a80 t ng_enaddr_unparse 0000000000007140 T ng_encode_string 0000000000001740 T ng_findhook 00000000000000c0 T ng_findtype 0000000000005c50 t ng_fixedarray_getAlign 0000000000005c10 t ng_fixedarray_getDefault 0000000000005be0 t ng_fixedarray_parse 0000000000005c00 t ng_fixedarray_unparse 00000000000064c0 t ng_fixedstring_getDefault 0000000000006350 t ng_fixedstring_parse 0000000000006400 t ng_fixedstring_unparse 0000000000003d60 T ng_free_item 00000000000000b0 r ng_generic_cmds 00000000000002c8 r ng_generic_connect_type 00000000000003a8 r ng_generic_hooklist_type 0000000000000638 r ng_generic_linkinfo_array_type 0000000000000670 r ng_generic_linkinfo_array_type_info 0000000000005380 t ng_generic_linkinfo_getLength 0000000000000688 r ng_generic_linkinfo_type 0000000000005390 t ng_generic_list_getLength 00000000000003e0 r ng_generic_listnodes_type 0000000000000290 r ng_generic_mkpeer_type 0000000000000300 r ng_generic_name_type 0000000000000370 r ng_generic_nodeinfo_type 0000000000000768 r ng_generic_nodeinfoarray_type 0000000000000338 r ng_generic_rmhook_type 0000000000000858 r ng_generic_typeinfo_type 0000000000000808 r ng_generic_typeinfoarray_type 0000000000000418 r ng_generic_typelist_type 0000000000006ed0 T ng_get_string_token 00000000000005f0 r ng_hooklist_type_fields 0000000000000000 b ng_idhash_lock 0000000000005fb0 t ng_int16_getAlign 0000000000005f90 t ng_int16_getDefault 0000000000005e80 t ng_int16_parse 0000000000005f00 t ng_int16_unparse 0000000000006100 t ng_int32_getAlign 00000000000060e0 t ng_int32_getDefault 0000000000005fc0 t ng_int32_parse 0000000000006060 t ng_int32_unparse 0000000000006200 t ng_int64_getAlign 00000000000061e0 t ng_int64_getDefault 0000000000006110 t ng_int64_parse 0000000000006180 t ng_int64_unparse 0000000000005e70 t ng_int8_getAlign 0000000000005e50 t ng_int8_getDefault 0000000000005d60 t ng_int8_parse 0000000000005dd0 t ng_int8_unparse 0000000000006840 t ng_ipaddr_getDefault 0000000000006660 t ng_ipaddr_parse 00000000000067e0 t ng_ipaddr_unparse 00000000000006c0 r ng_linkinfo_type_fields 0000000000000720 r ng_listnodes_type_fields 0000000000000000 T ng_make_node 0000000000000120 T ng_make_node_common 0000000000004c00 t ng_mkpeer 0000000000000450 r ng_mkpeer_type_fields 0000000000003e70 T ng_mod_event 0000000000001a50 r ng_msg_data_type 00000000000014b0 T ng_name2noderef 0000000000000d50 T ng_name_node 0000000000000510 r ng_name_type_fields 0000000000000020 b ng_namehash_lock 0000000000001a60 T ng_newtype 0000000000000d30 T ng_node2ID 0000000000000570 r ng_nodeinfo_type_fields 00000000000007a0 r ng_nodeinfoarray_type_info 0000000000004060 T ng_package_data 00000000000040c0 T ng_package_msg 0000000000004410 T ng_package_msg_self 0000000000005a20 T ng_parse 0000000000007d10 t ng_parse_append 0000000000001358 R ng_parse_array_type 0000000000001a00 r ng_parse_bytearray_subtype 0000000000007d80 t ng_parse_bytearray_subtype_getLength 0000000000001a38 r ng_parse_bytearray_subtype_info 0000000000001888 R ng_parse_bytearray_type 00000000000017a0 R ng_parse_cmdbuf_info 00000000000017a8 R ng_parse_cmdbuf_type 00000000000072b0 t ng_parse_composite 0000000000001850 R ng_parse_enaddr_type 0000000000001320 R ng_parse_fixedarray_type 0000000000001668 R ng_parse_fixedstring_type 0000000000005ab0 T ng_parse_getDefault 0000000000006d90 T ng_parse_get_token 00000000000014a8 R ng_parse_hint16_type 0000000000001550 R ng_parse_hint32_type 00000000000015f8 R ng_parse_hint64_type 0000000000001400 R ng_parse_hint8_type 00000000000016e0 R ng_parse_hookbuf_info 00000000000016e8 R ng_parse_hookbuf_type 0000000000001438 R ng_parse_int16_type 00000000000014e0 R ng_parse_int32_type 0000000000001588 R ng_parse_int64_type 0000000000001390 R ng_parse_int8_type 0000000000001818 R ng_parse_ipaddr_type 0000000000007d90 t ng_parse_ng_mesg_getLength 00000000000019c8 R ng_parse_ng_mesg_type 00000000000018c0 r ng_parse_ng_mesg_type_fields 00000000000016a0 R ng_parse_nodebuf_info 00000000000016a8 R ng_parse_nodebuf_type 0000000000001720 R ng_parse_pathbuf_info 0000000000001728 R ng_parse_pathbuf_type 00000000000017e0 R ng_parse_sizedstring_type 0000000000001630 R ng_parse_string_type 00000000000012e8 R ng_parse_struct_type 0000000000001760 R ng_parse_typebuf_info 0000000000001768 R ng_parse_typebuf_type 0000000000001470 R ng_parse_uint16_type 0000000000001518 R ng_parse_uint32_type 00000000000015c0 R ng_parse_uint64_type 00000000000013c8 R ng_parse_uint8_type 0000000000001f80 T ng_path2noderef 0000000000001de0 T ng_path_parse 0000000000000088 B ng_qdzone 0000000000000090 B ng_qzone 0000000000004950 T ng_replace_retaddr 0000000000001dd0 t ng_rmhook_part2 00000000000017a0 T ng_rmhook_self 0000000000000540 r ng_rmhook_type_fields 0000000000000770 T ng_rmnode 0000000000001c70 T ng_rmnode_self 0000000000001bc0 T ng_rmtype 0000000000001d10 T ng_send_fn 00000000000044c0 T ng_send_fn1 0000000000004590 T ng_send_fn2 0000000000006640 t ng_sizedstring_getDefault 0000000000006510 t ng_sizedstring_parse 00000000000065b0 t ng_sizedstring_unparse 0000000000002350 T ng_snd_item 0000000000006330 t ng_string_getDefault 0000000000006210 t ng_string_parse 0000000000006290 t ng_string_unparse 0000000000005b50 t ng_struct_getAlign 0000000000005b10 t ng_struct_getDefault 0000000000005ae0 t ng_struct_parse 0000000000005b00 t ng_struct_unparse 0000000000000040 b ng_topo_lock 0000000000000890 r ng_typeinfo_type_fields 0000000000000840 r ng_typeinfoarray_type_info 0000000000000080 b ng_typelist 0000000000000060 b ng_typelist_lock 00000000000007c0 r ng_typelist_type_fields 00000000000048b0 T ng_uncallout 0000000000004900 T ng_uncallout_drain 0000000000000d20 T ng_unname 0000000000005a60 T ng_unparse 0000000000007900 t ng_unparse_composite 00000000000016e0 T ng_unref_hook 0000000000000550 T ng_unref_node 0000000000000930 d ng_worklist 0000000000003c80 t ng_worklist_add 00000000000000a0 b ng_worklist_mtx 0000000000005580 t ngb_mod_event 0000000000005730 t ngthread 0000000000000098 b numthreads U panic U printf U snprintf U sprintf U strcmp U strcpy U strlcpy U strlen U strncmp U strncpy U strtol U strtoq U strtoul U sysctl___net 00000000000006e0 D sysctl___net_graph 0000000000000750 d sysctl___net_graph_abi_version 0000000000000530 d sysctl___net_graph_maxalloc 00000000000005a0 d sysctl___net_graph_maxdata 00000000000007c0 d sysctl___net_graph_msg_version 00000000000004c0 d sysctl___net_graph_threads U sysctl_handle_int U tick_sbt U uma_get_cache_align_mask U uma_zalloc_arg U uma_zcreate U uma_zfree_arg U uma_zone_set_max U vnet_deregister_sysinit U vnet_deregister_sysuninit 0000000000000000 d vnet_entry_nextID 0000000000000008 d vnet_entry_ng_ID_hash 0000000000000010 d vnet_entry_ng_ID_hmask 0000000000000030 d vnet_entry_ng_name_hash 0000000000000028 d vnet_entry_ng_name_hmask 0000000000000020 d vnet_entry_ng_named_nodes 0000000000000018 d vnet_entry_ng_nodes 0000000000000610 d vnet_init_vnet_netgraph_init_sys_init 0000000000000630 d vnet_init_vnet_netgraph_init_sys_uninit 00000000000053a0 t vnet_netgraph_init 00000000000008b8 d vnet_netgraph_init_vnet_init 0000000000005420 t vnet_netgraph_uninit 00000000000008e0 d vnet_netgraph_uninit_vnet_uninit U vnet_register_sysinit U vnet_register_sysuninit 0000000000000650 d vnet_uninit_vnet_netgraph_uninit_sys_init 0000000000000670 d vnet_uninit_vnet_netgraph_uninit_sys_uninit U vsnprintf U wakeup_one

Dependencies

3. ng_hci.ko

• Bluetooth Host Controller Interface (HCI) layer

Size :	41K
Source path :	/usr/src/sys/netgraph/bluetooth/hci
Binary path :	/usr/obj/usr/src/amd64.amd64/sys/modules/netgraph/bluetooth/hci/ng_hci.ko
List of C files :	ng_hci_main.c ng_hci_cmds.c ng_hci_evnt.c ng_hci_ulpi.c ng_hci_misc.c
NM symbols list :	See the full content of nm output 0000000000000000 d M_NETGRAPH_HCI 0000000000000070 d M_NETGRAPH_HCI_init_sys_init 0000000000000090 d M_NETGRAPH_HCI_uninit_sys_uninit U M_NETGRAPH_MSG 0000000000000008 r __set_modmetadata_set_sym__mod_metadata_md_ng_hci 0000000000000000 r __set_modmetadata_set_sym__mod_metadata_md_ng_hci_on_kernel 0000000000000010 r __set_modmetadata_set_sym__mod_metadata_md_ng_hci_on_netgraph 0000000000000020 r __set_modmetadata_set_sym__mod_metadata_md_ng_hci_on_ng_bluetooth 0000000000000018 r __set_modmetadata_set_sym__mod_metadata_ng_hci_version 0000000000000000 d __set_sysinit_set_sym_M_NETGRAPH_HCI_init_sys_init 0000000000000008 d __set_sysinit_set_sym_ng_hcimodule_sys_init 0000000000000000 d __set_sysuninit_set_sym_M_NETGRAPH_HCI_uninit_sys_uninit w __start_set_modmetadata_set U __start_set_pcpu w __start_set_sysinit_set w __start_set_sysuninit_set w __stop_set_modmetadata_set U __stop_set_pcpu w __stop_set_sysinit_set w __stop_set_sysuninit_set 00000000000000c8 d _mod_metadata_md_ng_hci 00000000000000b0 d _mod_metadata_md_ng_hci_on_kernel 0000000000000100 d _mod_metadata_md_ng_hci_on_netgraph 0000000000000130 d _mod_metadata_md_ng_hci_on_ng_bluetooth 0000000000000118 d _mod_metadata_ng_hci_version 0000000000000148 d _ng_hci_depend_on_kernel 00000000000001f0 d _ng_hci_depend_on_netgraph 0000000000000200 d _ng_hci_depend_on_ng_bluetooth 00000000000001fc d _ng_hci_version U bluetooth_hci_command_timeout U bluetooth_hci_connect_timeout U bluetooth_hci_max_neighbor_age U callout_init 0000000000001ba0 t complete_command U free U getmicrotime U m_adj U m_copydata U m_dup U m_freem U m_pullup U malloc U malloc_init U malloc_uninit U memcmp U memmove U memset U module_register_init U ng_address_ID U ng_address_hook U ng_callout U ng_free_item 00000000000010b0 t ng_hci_acl_rcvdata 0000000000000340 r ng_hci_bdaddr_type 00000000000004b0 r ng_hci_bdaddr_type_info 0000000000000308 r ng_hci_buffer_type 00000000000003f0 r ng_hci_buffer_type_fields 00000000000000e0 r ng_hci_cmdlist 00000000000066b0 t ng_hci_command_timeout 0000000000006120 t ng_hci_command_untimeout 0000000000006650 t ng_hci_con_by_bdaddr 0000000000006620 t ng_hci_con_by_handle 0000000000006720 t ng_hci_con_timeout 0000000000006170 t ng_hci_con_untimeout 0000000000000db0 t ng_hci_connect 0000000000000000 t ng_hci_constructor 00000000000000e0 t ng_hci_default_rcvmsg 0000000000000fc0 t ng_hci_disconnect 0000000000000e30 t ng_hci_drv_rcvdata 0000000000000378 r ng_hci_features_type 00000000000004c8 r ng_hci_features_type_info 00000000000062a0 t ng_hci_flush_neighbor_cache 00000000000061d0 t ng_hci_free_con 00000000000063a0 t ng_hci_free_neighbor 0000000000006400 t ng_hci_get_neighbor 0000000000004a90 t ng_hci_lp_con_cfm 0000000000004ea0 t ng_hci_lp_con_ind 0000000000003f00 t ng_hci_lp_con_req 0000000000005030 t ng_hci_lp_con_rsp 00000000000052f0 t ng_hci_lp_discon_ind 00000000000048e0 t ng_hci_lp_discon_req 0000000000004d50 t ng_hci_lp_enc_change 0000000000005780 t ng_hci_lp_qos_cfm 00000000000059f0 t ng_hci_lp_qos_ind 0000000000005560 t ng_hci_lp_qos_req 0000000000000158 d ng_hci_mod 0000000000005d50 t ng_hci_mtap 00000000000064e0 t ng_hci_neighbor_stale 0000000000006520 t ng_hci_new_con 000000000000020c d ng_hci_new_con.fake_con_handle 0000000000006320 t ng_hci_new_neighbor 0000000000000d00 t ng_hci_newhook 0000000000005df0 t ng_hci_node_is_up 0000000000001980 t ng_hci_process_command_complete 00000000000021a0 t ng_hci_process_command_status 0000000000002330 t ng_hci_process_command_timeout 0000000000005c30 t ng_hci_process_con_timeout 0000000000002430 t ng_hci_process_event 00000000000015f0 t ng_hci_raw_rcvdata 0000000000001350 t ng_hci_sco_rcvdata 00000000000017f0 t ng_hci_send_command 0000000000003af0 t ng_hci_send_data 0000000000000c60 t ng_hci_shutdown 00000000000003b0 r ng_hci_stat_type 00000000000004e0 r ng_hci_stat_type_fields 0000000000005fd0 t ng_hci_unit_clean 0000000000001060 t ng_hci_upper_rcvmsg 00000000000000e0 d ng_hcimodule_sys_init U ng_mod_event U ng_package_data U ng_package_msg U ng_parse_fixedarray_type U ng_parse_struct_type U ng_parse_uint16_type U ng_parse_uint32_type U ng_parse_uint8_type U ng_rmnode_self U ng_send_fn U ng_snd_item U ng_uncallout U ng_unref_node U panic U printf 0000000000001e50 t process_hc_baseband_params 0000000000001f30 t process_info_params 0000000000002160 t process_le_params 0000000000001cb0 t process_link_control_params 0000000000001d00 t process_link_policy_params 00000000000020e0 t process_status_params 0000000000002120 t process_testing_params 0000000000003b90 t send_data_packets U snprintf U strcmp U strncpy 0000000000000170 d typestruct U uma_zalloc_arg U zone_mbuf

Dependencies

4. ng_bluetooth.ko

• Placeholder for global Bluetooth variables

Size :	8.5K
Source path :	/usr/src/sys/netgraph/bluetooth/common
Binary path :	/usr/obj/usr/src/amd64.amd64/sys/modules/netgraph/bluetooth/bluetooth/ng_bluetooth.ko
List of C files :	ng_bluetooth.c
NM symbols list :	See the full content of nm output 0000000000000008 r __set_modmetadata_set_sym__mod_metadata_md_ng_bluetooth 0000000000000000 r __set_modmetadata_set_sym__mod_metadata_md_ng_bluetooth_on_kernel 0000000000000010 r __set_modmetadata_set_sym__mod_metadata_ng_bluetooth_version 0000000000000000 r __set_sysctl_set_sym_sysctl___net_bluetooth 0000000000000010 r __set_sysctl_set_sym_sysctl___net_bluetooth_hci 0000000000000018 r __set_sysctl_set_sym_sysctl___net_bluetooth_hci_command_timeout 0000000000000020 r __set_sysctl_set_sym_sysctl___net_bluetooth_hci_connection_timeout 0000000000000028 r __set_sysctl_set_sym_sysctl___net_bluetooth_hci_max_neighbor_age 0000000000000030 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap 0000000000000040 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap_ertx_timeout 0000000000000038 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap_rtx_timeout 0000000000000048 r __set_sysctl_set_sym_sysctl___net_bluetooth_rfcomm 0000000000000050 r __set_sysctl_set_sym_sysctl___net_bluetooth_sco 0000000000000058 r __set_sysctl_set_sym_sysctl___net_bluetooth_sco_rtx_timeout 0000000000000008 r __set_sysctl_set_sym_sysctl___net_bluetooth_version 0000000000000000 d __set_sysinit_set_sym_ng_bluetoothmodule_sys_init w __start_set_modmetadata_set U __start_set_pcpu w __start_set_sysctl_set w __start_set_sysinit_set w __stop_set_modmetadata_set U __stop_set_pcpu w __stop_set_sysctl_set w __stop_set_sysinit_set 0000000000000570 d _mod_metadata_md_ng_bluetooth 0000000000000558 d _mod_metadata_md_ng_bluetooth_on_kernel 00000000000005a8 d _mod_metadata_ng_bluetooth_version 00000000000005c0 d _ng_bluetooth_depend_on_kernel 00000000000005e8 d _ng_bluetooth_version 0000000000000000 T bluetooth_hci_command_timeout 00000000000003f0 d bluetooth_hci_command_timeout_value 0000000000000020 T bluetooth_hci_connect_timeout 00000000000003f4 d bluetooth_hci_connect_timeout_value 0000000000000040 T bluetooth_hci_max_neighbor_age 00000000000003f8 d bluetooth_hci_max_neighbor_age_value 0000000000000070 T bluetooth_l2cap_ertx_timeout 0000000000000400 d bluetooth_l2cap_ertx_timeout_value 0000000000000050 T bluetooth_l2cap_rtx_timeout 00000000000003fc d bluetooth_l2cap_rtx_timeout_value 00000000000005d0 d bluetooth_mod 0000000000000240 t bluetooth_modevent 0000000000000090 T bluetooth_sco_rtx_timeout 0000000000000404 d bluetooth_sco_rtx_timeout_value 00000000000000b0 t bluetooth_set_hci_command_timeout_value 0000000000000100 t bluetooth_set_hci_connect_timeout_value 00000000000001a0 t bluetooth_set_l2cap_ertx_timeout_value 0000000000000150 t bluetooth_set_l2cap_rtx_timeout_value 00000000000001f0 t bluetooth_set_sco_rtx_timeout_value U hz U module_register_init 0000000000000588 d ng_bluetoothmodule_sys_init U sysctl___net 0000000000000000 D sysctl___net_bluetooth 00000000000000e0 D sysctl___net_bluetooth_hci 0000000000000150 d sysctl___net_bluetooth_hci_command_timeout 00000000000001c0 d sysctl___net_bluetooth_hci_connection_timeout 0000000000000230 d sysctl___net_bluetooth_hci_max_neighbor_age 00000000000002a0 D sysctl___net_bluetooth_l2cap 0000000000000380 d sysctl___net_bluetooth_l2cap_ertx_timeout 0000000000000310 d sysctl___net_bluetooth_l2cap_rtx_timeout 0000000000000408 D sysctl___net_bluetooth_rfcomm 0000000000000478 D sysctl___net_bluetooth_sco 00000000000004e8 d sysctl___net_bluetooth_sco_rtx_timeout 0000000000000070 d sysctl___net_bluetooth_version U sysctl_handle_int

Dependencies

5. ng_btsocket.ko

• Bluetooth sockets layer. The ng_btsocket module implements three Netgraph node types. Each type in its turn implements one protocol within PF_BLUETOOTH domain.

Binary Name :	ng_btsocket.ko
Size :	101K
Source path :	/usr/src/sys/netgraph/bluetooth/socket
Binary path :	/usr/obj/usr/src/amd64.amd64/sys/modules/netgraph/bluetooth/socket/ng_btsocket.ko
List of c files :	ng_btsocket.c ng_btsocket_hci_raw.c ng_btsocket_l2cap_raw.c ng_btsocket_l2cap.c ng_btsocket_rfcomm.c ng_btsocket_sco.c
NM symbol list :	See the full content of nm output 0000000000000b40 d M_NETGRAPH_BTSOCKET_HCI_RAW 0000000000000840 d M_NETGRAPH_BTSOCKET_HCI_RAW_init_sys_init 0000000000000860 d M_NETGRAPH_BTSOCKET_HCI_RAW_uninit_sys_uninit 00000000000012b0 d M_NETGRAPH_BTSOCKET_L2CAP 0000000000000f30 d M_NETGRAPH_BTSOCKET_L2CAP_RAW 0000000000000c30 d M_NETGRAPH_BTSOCKET_L2CAP_RAW_init_sys_init 0000000000000c50 d M_NETGRAPH_BTSOCKET_L2CAP_RAW_uninit_sys_uninit 0000000000001020 d M_NETGRAPH_BTSOCKET_L2CAP_init_sys_init 0000000000001040 d M_NETGRAPH_BTSOCKET_L2CAP_uninit_sys_uninit 0000000000001550 d M_NETGRAPH_BTSOCKET_RFCOMM 00000000000013a0 d M_NETGRAPH_BTSOCKET_RFCOMM_init_sys_init 00000000000013c0 d M_NETGRAPH_BTSOCKET_RFCOMM_uninit_sys_uninit 0000000000001850 d M_NETGRAPH_BTSOCKET_SCO 00000000000015c0 d M_NETGRAPH_BTSOCKET_SCO_init_sys_init 00000000000015e0 d M_NETGRAPH_BTSOCKET_SCO_uninit_sys_uninit U M_NETGRAPH_MSG U __mtx_lock_flags U __mtx_unlock_flags 0000000000000008 r __set_modmetadata_set_sym__mod_metadata_md_ng_btsocket 0000000000000000 r __set_modmetadata_set_sym__mod_metadata_md_ng_btsocket_on_kernel 0000000000000020 r __set_modmetadata_set_sym__mod_metadata_md_ng_btsocket_on_netgraph 0000000000000018 r __set_modmetadata_set_sym__mod_metadata_md_ng_btsocket_on_ng_bluetooth 0000000000000010 r __set_modmetadata_set_sym__mod_metadata_ng_btsocket_version 0000000000000000 r __set_sysctl_set_sym_sysctl___net_bluetooth_hci_sockets 0000000000000020 r __set_sysctl_set_sym_sysctl___net_bluetooth_hci_sockets_raw 0000000000000028 r __set_sysctl_set_sym_sysctl___net_bluetooth_hci_sockets_raw_debug_level 0000000000000030 r __set_sysctl_set_sym_sysctl___net_bluetooth_hci_sockets_raw_ioctl_timeout 0000000000000048 r __set_sysctl_set_sym_sysctl___net_bluetooth_hci_sockets_raw_queue_drops 0000000000000038 r __set_sysctl_set_sym_sysctl___net_bluetooth_hci_sockets_raw_queue_len 0000000000000040 r __set_sysctl_set_sym_sysctl___net_bluetooth_hci_sockets_raw_queue_maxlen 0000000000000008 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap_sockets 0000000000000050 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap_sockets_raw 0000000000000058 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap_sockets_raw_debug_level 0000000000000060 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap_sockets_raw_ioctl_timeout 0000000000000078 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap_sockets_raw_queue_drops 0000000000000068 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap_sockets_raw_queue_len 0000000000000070 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap_sockets_raw_queue_maxlen 0000000000000080 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap_sockets_seq 0000000000000088 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap_sockets_seq_debug_level 00000000000000a0 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap_sockets_seq_queue_drops 0000000000000090 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap_sockets_seq_queue_len 0000000000000098 r __set_sysctl_set_sym_sysctl___net_bluetooth_l2cap_sockets_seq_queue_maxlen 0000000000000010 r __set_sysctl_set_sym_sysctl___net_bluetooth_rfcomm_sockets 00000000000000a8 r __set_sysctl_set_sym_sysctl___net_bluetooth_rfcomm_sockets_stream 00000000000000b0 r __set_sysctl_set_sym_sysctl___net_bluetooth_rfcomm_sockets_stream_debug_level 00000000000000b8 r __set_sysctl_set_sym_sysctl___net_bluetooth_rfcomm_sockets_stream_timeout 0000000000000018 r __set_sysctl_set_sym_sysctl___net_bluetooth_sco_sockets 00000000000000c0 r __set_sysctl_set_sym_sysctl___net_bluetooth_sco_sockets_seq 00000000000000c8 r __set_sysctl_set_sym_sysctl___net_bluetooth_sco_sockets_seq_debug_level 00000000000000e0 r __set_sysctl_set_sym_sysctl___net_bluetooth_sco_sockets_seq_queue_drops 00000000000000d0 r __set_sysctl_set_sym_sysctl___net_bluetooth_sco_sockets_seq_queue_len 00000000000000d8 r __set_sysctl_set_sym_sysctl___net_bluetooth_sco_sockets_seq_queue_maxlen 0000000000000010 d __set_sysinit_set_sym_M_NETGRAPH_BTSOCKET_HCI_RAW_init_sys_init 0000000000000020 d __set_sysinit_set_sym_M_NETGRAPH_BTSOCKET_L2CAP_RAW_init_sys_init 0000000000000030 d __set_sysinit_set_sym_M_NETGRAPH_BTSOCKET_L2CAP_init_sys_init 0000000000000040 d __set_sysinit_set_sym_M_NETGRAPH_BTSOCKET_RFCOMM_init_sys_init 0000000000000050 d __set_sysinit_set_sym_M_NETGRAPH_BTSOCKET_SCO_init_sys_init 0000000000000008 d __set_sysinit_set_sym_domain_add_ng_btsocket__sys_init 0000000000000018 d __set_sysinit_set_sym_ng_btsocket_hci_raw_init_sys_init 0000000000000038 d __set_sysinit_set_sym_ng_btsocket_l2cap_init_sys_init 0000000000000028 d __set_sysinit_set_sym_ng_btsocket_l2cap_raw_init_sys_init 0000000000000048 d __set_sysinit_set_sym_ng_btsocket_rfcomm_init_sys_init 0000000000000058 d __set_sysinit_set_sym_ng_btsocket_sco_init_sys_init 0000000000000000 d __set_sysinit_set_sym_ng_btsocketmodule_sys_init 0000000000000008 d __set_sysuninit_set_sym_M_NETGRAPH_BTSOCKET_HCI_RAW_uninit_sys_uninit 0000000000000010 d __set_sysuninit_set_sym_M_NETGRAPH_BTSOCKET_L2CAP_RAW_uninit_sys_uninit 0000000000000018 d __set_sysuninit_set_sym_M_NETGRAPH_BTSOCKET_L2CAP_uninit_sys_uninit 0000000000000020 d __set_sysuninit_set_sym_M_NETGRAPH_BTSOCKET_RFCOMM_uninit_sys_uninit 0000000000000028 d __set_sysuninit_set_sym_M_NETGRAPH_BTSOCKET_SCO_uninit_sys_uninit 0000000000000000 d __set_sysuninit_set_sym_domain_remove_ng_btsocket__sys_uninit U __stack_chk_fail U __stack_chk_guard w __start_set_modmetadata_set U __start_set_pcpu w __start_set_sysctl_set w __start_set_sysinit_set w __start_set_sysuninit_set U __start_set_vnet w __stop_set_modmetadata_set U __stop_set_pcpu w __stop_set_sysctl_set w __stop_set_sysinit_set w __stop_set_sysuninit_set U __stop_set_vnet U _callout_init_lock U _callout_stop_safe 00000000000001d8 d _mod_metadata_md_ng_btsocket 00000000000001c0 d _mod_metadata_md_ng_btsocket_on_kernel 0000000000000240 d _mod_metadata_md_ng_btsocket_on_netgraph 0000000000000228 d _mod_metadata_md_ng_btsocket_on_ng_bluetooth 0000000000000210 d _mod_metadata_ng_btsocket_version U _mtx_destroy U _mtx_init 0000000000000298 d _ng_btsocket_depend_on_kernel 00000000000002d0 d _ng_btsocket_depend_on_netgraph 00000000000002c4 d _ng_btsocket_depend_on_ng_bluetooth 00000000000002c0 d _ng_btsocket_version U _sleep U bluetooth_l2cap_ertx_timeout U bluetooth_l2cap_rtx_timeout U bluetooth_sco_rtx_timeout U callout_init U callout_reset_sbt_on U copyin U copyout U domain_add 0000000000000258 d domain_add_ng_btsocket__sys_init U domain_remove 0000000000000278 d domain_remove_ng_btsocket__sys_uninit U eventratecheck U free U hz U ifqmaxlen U m_adj U m_cat U m_dup U m_freem U m_prepend U m_pullup U malloc U malloc_init U malloc_uninit U memcmp U memmove U memset U microtime U module_register_init U ng_address_hook U ng_address_path 00000000000007b8 d ng_btsocket_domain 0000000000000020 T ng_btsocket_hci_raw_abort 0000000000000040 T ng_btsocket_hci_raw_attach 00000000000001f0 T ng_btsocket_hci_raw_bind 0000000000000030 T ng_btsocket_hci_raw_close 00000000000002b0 T ng_btsocket_hci_raw_connect 0000000000000390 T ng_btsocket_hci_raw_control 0000000000001150 T ng_btsocket_hci_raw_ctloutput 0000000000000068 b ng_btsocket_hci_raw_curpps 0000000000000034 b ng_btsocket_hci_raw_debug_level 0000000000001290 T ng_btsocket_hci_raw_detach 00000000000013e0 T ng_btsocket_hci_raw_disconnect 00000000000010f0 t ng_btsocket_hci_raw_get_token 0000000000001990 t ng_btsocket_hci_raw_init 0000000000000b20 d ng_btsocket_hci_raw_init_sys_init 0000000000001c70 t ng_btsocket_hci_raw_input 0000000000000030 b ng_btsocket_hci_raw_ioctl_timeout 0000000000000058 b ng_btsocket_hci_raw_lasttime 0000000000000000 b ng_btsocket_hci_raw_node 00000000000023f0 t ng_btsocket_hci_raw_node_connect 00000000000021b0 t ng_btsocket_hci_raw_node_constructor 00000000000025a0 t ng_btsocket_hci_raw_node_disconnect 00000000000023e0 t ng_btsocket_hci_raw_node_newhook 0000000000002400 t ng_btsocket_hci_raw_node_rcvdata 00000000000021c0 t ng_btsocket_hci_raw_node_rcvmsg 00000000000022f0 t ng_btsocket_hci_raw_node_shutdown 00000000000018d0 t ng_btsocket_hci_raw_output 0000000000001450 T ng_btsocket_hci_raw_peeraddr 00000000000002e0 d ng_btsocket_hci_raw_protosw 0000000000000038 b ng_btsocket_hci_raw_queue 0000000000000070 b ng_btsocket_hci_raw_queue_mtx 00000000000000d8 b ng_btsocket_hci_raw_sec_filter 0000000000001650 T ng_btsocket_hci_raw_send 0000000000001010 t ng_btsocket_hci_raw_send_ngmsg 0000000000000e10 t ng_btsocket_hci_raw_send_sync_ngmsg 0000000000001550 T ng_btsocket_hci_raw_sockaddr 0000000000000028 b ng_btsocket_hci_raw_sockets 0000000000000008 b ng_btsocket_hci_raw_sockets_mtx 0000000000000090 b ng_btsocket_hci_raw_task 00000000000000b0 b ng_btsocket_hci_raw_token 00000000000000b8 b ng_btsocket_hci_raw_token_mtx 00000000000047e0 T ng_btsocket_l2cap_abort 0000000000004940 T ng_btsocket_l2cap_accept 0000000000004a80 T ng_btsocket_l2cap_attach 0000000000000208 b ng_btsocket_l2cap_attach.token 0000000000004c50 T ng_btsocket_l2cap_bind 0000000000004930 T ng_btsocket_l2cap_close 0000000000004d70 T ng_btsocket_l2cap_connect 0000000000005200 T ng_btsocket_l2cap_control 0000000000005210 T ng_btsocket_l2cap_ctloutput 0000000000000278 b ng_btsocket_l2cap_curpps 0000000000000260 b ng_btsocket_l2cap_debug_level 0000000000005400 T ng_btsocket_l2cap_detach 0000000000004800 T ng_btsocket_l2cap_disconnect 0000000000005bb0 t ng_btsocket_l2cap_init 0000000000001290 d ng_btsocket_l2cap_init_sys_init 0000000000005de0 t ng_btsocket_l2cap_input 0000000000000268 b ng_btsocket_l2cap_lasttime 0000000000005680 T ng_btsocket_l2cap_listen 0000000000000200 b ng_btsocket_l2cap_node 0000000000008c80 t ng_btsocket_l2cap_node_connect 0000000000008a50 t ng_btsocket_l2cap_node_constructor 0000000000008dc0 t ng_btsocket_l2cap_node_disconnect 0000000000008c70 t ng_btsocket_l2cap_node_newhook 0000000000008cb0 t ng_btsocket_l2cap_node_rcvdata 0000000000008a60 t ng_btsocket_l2cap_node_rcvmsg 0000000000008b90 t ng_btsocket_l2cap_node_shutdown 00000000000049e0 T ng_btsocket_l2cap_peeraddr 0000000000009000 t ng_btsocket_l2cap_process_timeout 00000000000004d0 d ng_btsocket_l2cap_protosw 0000000000000280 b ng_btsocket_l2cap_queue 00000000000002a0 b ng_btsocket_l2cap_queue_mtx 00000000000002c0 b ng_btsocket_l2cap_queue_task 00000000000025b0 T ng_btsocket_l2cap_raw_abort 0000000000002730 T ng_btsocket_l2cap_raw_attach 00000000000028c0 T ng_btsocket_l2cap_raw_bind 00000000000026b0 T ng_btsocket_l2cap_raw_close 0000000000002a40 T ng_btsocket_l2cap_raw_connect 0000000000002c00 T ng_btsocket_l2cap_raw_control 0000000000000170 b ng_btsocket_l2cap_raw_curpps 000000000000013c b ng_btsocket_l2cap_raw_debug_level 0000000000003a60 T ng_btsocket_l2cap_raw_detach 0000000000002630 T ng_btsocket_l2cap_raw_disconnect 0000000000003a00 t ng_btsocket_l2cap_raw_get_token 0000000000003d50 t ng_btsocket_l2cap_raw_init 0000000000000f10 d ng_btsocket_l2cap_raw_init_sys_init 0000000000003fa0 t ng_btsocket_l2cap_raw_input 0000000000000138 b ng_btsocket_l2cap_raw_ioctl_timeout 0000000000000160 b ng_btsocket_l2cap_raw_lasttime 00000000000000e0 b ng_btsocket_l2cap_raw_node 0000000000004760 t ng_btsocket_l2cap_raw_node_connect 0000000000004510 t ng_btsocket_l2cap_raw_node_constructor 00000000000047b0 t ng_btsocket_l2cap_raw_node_disconnect 0000000000004750 t ng_btsocket_l2cap_raw_node_newhook 0000000000004790 t ng_btsocket_l2cap_raw_node_rcvdata 0000000000004520 t ng_btsocket_l2cap_raw_node_rcvmsg 0000000000004670 t ng_btsocket_l2cap_raw_node_shutdown 0000000000003ba0 T ng_btsocket_l2cap_raw_peeraddr 00000000000003d8 d ng_btsocket_l2cap_raw_protosw 0000000000000140 b ng_btsocket_l2cap_raw_queue 0000000000000178 b ng_btsocket_l2cap_raw_queue_mtx 0000000000000198 b ng_btsocket_l2cap_raw_queue_task 0000000000000130 b ng_btsocket_l2cap_raw_rt 0000000000000110 b ng_btsocket_l2cap_raw_rt_mtx 00000000000001e0 b ng_btsocket_l2cap_raw_rt_task 0000000000004380 t ng_btsocket_l2cap_raw_rtclean 0000000000003c60 T ng_btsocket_l2cap_raw_send 00000000000038f0 t ng_btsocket_l2cap_raw_send_ngmsg 0000000000003700 t ng_btsocket_l2cap_raw_send_sync_ngmsg 0000000000003c90 T ng_btsocket_l2cap_raw_sockaddr 0000000000000108 b ng_btsocket_l2cap_raw_sockets 00000000000000e8 b ng_btsocket_l2cap_raw_sockets_mtx 00000000000001b8 b ng_btsocket_l2cap_raw_token 00000000000001c0 b ng_btsocket_l2cap_raw_token_mtx 0000000000008f70 t ng_btsocket_l2cap_result2errno 0000000000000258 b ng_btsocket_l2cap_rt 0000000000000238 b ng_btsocket_l2cap_rt_mtx 00000000000002e0 b ng_btsocket_l2cap_rt_task 0000000000008880 t ng_btsocket_l2cap_rtclean 0000000000005740 T ng_btsocket_l2cap_send 0000000000005900 t ng_btsocket_l2cap_send2 0000000000008df0 t ng_btsocket_l2cap_send_l2ca_cfg_req 0000000000005030 t ng_btsocket_l2cap_send_l2ca_con_req 0000000000005530 t ng_btsocket_l2cap_send_l2ca_discon_req 0000000000005b30 T ng_btsocket_l2cap_sockaddr 0000000000000230 b ng_btsocket_l2cap_sockets 0000000000000210 b ng_btsocket_l2cap_sockets_mtx 00000000000051a0 t ng_btsocket_l2cap_timeout 00000000000002a8 d ng_btsocket_mod 0000000000000000 t ng_btsocket_modevent 00000000000090d0 T ng_btsocket_rfcomm_abort 0000000000009200 T ng_btsocket_rfcomm_accept 00000000000092c0 T ng_btsocket_rfcomm_attach 0000000000009420 T ng_btsocket_rfcomm_bind 00000000000091f0 T ng_btsocket_rfcomm_close 00000000000095a0 T ng_btsocket_rfcomm_connect 000000000000dc90 t ng_btsocket_rfcomm_connect_cfm 000000000000de50 t ng_btsocket_rfcomm_connect_ind 0000000000009f80 T ng_btsocket_rfcomm_control 0000000000004250 r ng_btsocket_rfcomm_crc_table 0000000000009f90 T ng_btsocket_rfcomm_ctloutput 0000000000000388 b ng_btsocket_rfcomm_curpps 0000000000000370 b ng_btsocket_rfcomm_debug_level 000000000000a080 T ng_btsocket_rfcomm_detach 00000000000090f0 T ng_btsocket_rfcomm_disconnect 000000000000a6f0 t ng_btsocket_rfcomm_init 0000000000001530 d ng_btsocket_rfcomm_init_sys_init 0000000000000378 b ng_btsocket_rfcomm_lasttime 000000000000a270 T ng_btsocket_rfcomm_listen 000000000000d3d0 t ng_btsocket_rfcomm_pcb_kill 000000000000d730 t ng_btsocket_rfcomm_pcb_send 0000000000009260 T ng_btsocket_rfcomm_peeraddr 000000000000e380 t ng_btsocket_rfcomm_process_timeout 00000000000005c8 d ng_btsocket_rfcomm_protosw 000000000000a580 T ng_btsocket_rfcomm_send 000000000000d5b0 t ng_btsocket_rfcomm_send_command 000000000000e0c0 t ng_btsocket_rfcomm_send_credits 000000000000dd50 t ng_btsocket_rfcomm_send_msc 0000000000009e40 t ng_btsocket_rfcomm_send_pn 000000000000da90 t ng_btsocket_rfcomm_send_uih 000000000000d190 t ng_btsocket_rfcomm_session_clean 0000000000009980 t ng_btsocket_rfcomm_session_create 000000000000d260 t ng_btsocket_rfcomm_session_process_pcb 000000000000a9d0 t ng_btsocket_rfcomm_session_task 0000000000000368 b ng_btsocket_rfcomm_sessions 0000000000000328 b ng_btsocket_rfcomm_sessions_mtx 000000000000a770 t ng_btsocket_rfcomm_sessions_task 000000000000a690 T ng_btsocket_rfcomm_sockaddr 0000000000000320 b ng_btsocket_rfcomm_sockets 0000000000000300 b ng_btsocket_rfcomm_sockets_mtx 0000000000000348 B ng_btsocket_rfcomm_task 0000000000009dd0 t ng_btsocket_rfcomm_timeout 0000000000000374 b ng_btsocket_rfcomm_timo 000000000000e300 t ng_btsocket_rfcomm_upcall 000000000000e440 T ng_btsocket_sco_abort 000000000000e5a0 T ng_btsocket_sco_accept 000000000000e710 T ng_btsocket_sco_attach 000000000000e870 T ng_btsocket_sco_bind 000000000000e590 T ng_btsocket_sco_close 000000000000ea00 T ng_btsocket_sco_connect 000000000000edf0 T ng_btsocket_sco_control 000000000000ee00 T ng_btsocket_sco_ctloutput 0000000000000400 b ng_btsocket_sco_curpps 00000000000003e8 b ng_btsocket_sco_debug_level 000000000000eee0 T ng_btsocket_sco_detach 000000000000e460 T ng_btsocket_sco_disconnect 000000000000f680 t ng_btsocket_sco_init 0000000000001830 d ng_btsocket_sco_init_sys_init 000000000000f8a0 t ng_btsocket_sco_input 00000000000003f0 b ng_btsocket_sco_lasttime 000000000000f160 T ng_btsocket_sco_listen 0000000000000390 b ng_btsocket_sco_node 00000000000111d0 t ng_btsocket_sco_node_connect 0000000000010fa0 t ng_btsocket_sco_node_constructor 0000000000011310 t ng_btsocket_sco_node_disconnect 00000000000111c0 t ng_btsocket_sco_node_newhook 0000000000011200 t ng_btsocket_sco_node_rcvdata 0000000000010fb0 t ng_btsocket_sco_node_rcvmsg 00000000000110e0 t ng_btsocket_sco_node_shutdown 000000000000e660 T ng_btsocket_sco_peeraddr 0000000000011340 t ng_btsocket_sco_process_timeout 00000000000006c0 d ng_btsocket_sco_protosw 0000000000000408 b ng_btsocket_sco_queue 0000000000000428 b ng_btsocket_sco_queue_mtx 0000000000000448 b ng_btsocket_sco_queue_task 00000000000003e0 b ng_btsocket_sco_rt 00000000000003c0 b ng_btsocket_sco_rt_mtx 0000000000000468 b ng_btsocket_sco_rt_task 0000000000010de0 t ng_btsocket_sco_rtclean 000000000000f230 T ng_btsocket_sco_send 000000000000f3f0 t ng_btsocket_sco_send2 000000000000ec60 t ng_btsocket_sco_send_lp_con_req 000000000000f040 t ng_btsocket_sco_send_lp_discon_req 000000000000f5d0 T ng_btsocket_sco_sockaddr 00000000000003b8 b ng_btsocket_sco_sockets 0000000000000398 b ng_btsocket_sco_sockets_mtx 000000000000ed90 t ng_btsocket_sco_timeout 000000000000f010 t ng_btsocket_sco_untimeout 00000000000001f0 d ng_btsocketmodule_sys_init U ng_free_item U ng_make_node_common U ng_name_node U ng_newtype U ng_package_data U ng_package_msg U ng_send_fn U ng_snd_item U ng_unref_hook U ng_unref_node U panic U printf U priv_check U sbappend U sbappendaddr U sbappendrecord U sbcreatecontrol U sbdrop U sbdroprecord U snprintf U soaccept U sobind U soclose U soconnect U socreate U sodupsockaddr U soisconnected U soisconnecting U soisdisconnected U soisdisconnecting U solisten U solisten_dequeue U solisten_proto U solisten_proto_abort U solisten_proto_check U sonewconn U sooptcopyin U sooptcopyout U soreceive U soreserve U soroverflow U sorwakeup_locked U sosetopt U soupcall_clear U soupcall_set U sowwakeup_locked U strcmp U strlcpy U strncpy U sysctl___net_bluetooth_hci 0000000000000000 D sysctl___net_bluetooth_hci_sockets 0000000000000880 d sysctl___net_bluetooth_hci_sockets_raw 00000000000008f0 d sysctl___net_bluetooth_hci_sockets_raw_debug_level 0000000000000960 d sysctl___net_bluetooth_hci_sockets_raw_ioctl_timeout 0000000000000ab0 d sysctl___net_bluetooth_hci_sockets_raw_queue_drops 00000000000009d0 d sysctl___net_bluetooth_hci_sockets_raw_queue_len 0000000000000a40 d sysctl___net_bluetooth_hci_sockets_raw_queue_maxlen U sysctl___net_bluetooth_l2cap 0000000000000070 D sysctl___net_bluetooth_l2cap_sockets 0000000000000c70 d sysctl___net_bluetooth_l2cap_sockets_raw 0000000000000ce0 d sysctl___net_bluetooth_l2cap_sockets_raw_debug_level 0000000000000d50 d sysctl___net_bluetooth_l2cap_sockets_raw_ioctl_timeout 0000000000000ea0 d sysctl___net_bluetooth_l2cap_sockets_raw_queue_drops 0000000000000dc0 d sysctl___net_bluetooth_l2cap_sockets_raw_queue_len 0000000000000e30 d sysctl___net_bluetooth_l2cap_sockets_raw_queue_maxlen 0000000000001060 d sysctl___net_bluetooth_l2cap_sockets_seq 00000000000010d0 d sysctl___net_bluetooth_l2cap_sockets_seq_debug_level 0000000000001220 d sysctl___net_bluetooth_l2cap_sockets_seq_queue_drops 0000000000001140 d sysctl___net_bluetooth_l2cap_sockets_seq_queue_len 00000000000011b0 d sysctl___net_bluetooth_l2cap_sockets_seq_queue_maxlen U sysctl___net_bluetooth_rfcomm 00000000000000e0 D sysctl___net_bluetooth_rfcomm_sockets 00000000000013e0 d sysctl___net_bluetooth_rfcomm_sockets_stream 0000000000001450 d sysctl___net_bluetooth_rfcomm_sockets_stream_debug_level 00000000000014c0 d sysctl___net_bluetooth_rfcomm_sockets_stream_timeout U sysctl___net_bluetooth_sco 0000000000000150 D sysctl___net_bluetooth_sco_sockets 0000000000001600 d sysctl___net_bluetooth_sco_sockets_seq 0000000000001670 d sysctl___net_bluetooth_sco_sockets_seq_debug_level 00000000000017c0 d sysctl___net_bluetooth_sco_sockets_seq_queue_drops 00000000000016e0 d sysctl___net_bluetooth_sco_sockets_seq_queue_len 0000000000001750 d sysctl___net_bluetooth_sco_sockets_seq_queue_maxlen U sysctl_handle_int U taskqueue_enqueue U taskqueue_swi U taskqueue_swi_giant U tick_sbt 0000000000000fa0 d typestruct 0000000000001320 d typestruct 00000000000018c0 d typestruct 0000000000000bb0 d typestruct U uma_zalloc_arg U wakeup U zone_mbuf

Dependencies

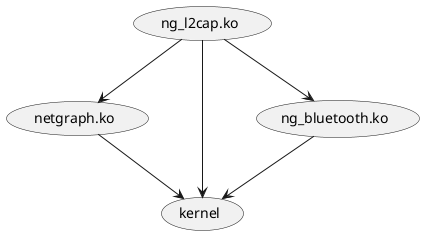

6. ng_l2cap.ko

• Bluetooth Logical Link Control and Adaptation Protocol (L2CAP)

Binary Name :	ng_l2cap.ko
Size :	41K
Source path :	/usr/src/sys/netgraph/bluetooth/l2cap
Binary path :	/usr/obj/usr/src/amd64.amd64/sys/modules/netgraph/bluetooth/l2cap/ng_l2cap.ko
List of c files :	ng_l2cap_main.c ng_l2cap_cmds.c ng_l2cap_evnt.c ng_l2cap_ulpi.c ng_l2cap_llpi.c ng_l2cap_misc.c
NM symbol list :	See the full content of nm output 0000000000000000 d M_NETGRAPH_L2CAP 0000000000000070 d M_NETGRAPH_L2CAP_init_sys_init 0000000000000090 d M_NETGRAPH_L2CAP_uninit_sys_uninit U M_NETGRAPH_MSG 0000000000000008 r __set_modmetadata_set_sym__mod_metadata_md_ng_l2cap 0000000000000000 r __set_modmetadata_set_sym__mod_metadata_md_ng_l2cap_on_kernel 0000000000000010 r __set_modmetadata_set_sym__mod_metadata_md_ng_l2cap_on_netgraph 0000000000000020 r __set_modmetadata_set_sym__mod_metadata_md_ng_l2cap_on_ng_bluetooth 0000000000000018 r __set_modmetadata_set_sym__mod_metadata_ng_l2cap_version 0000000000000000 d __set_sysinit_set_sym_M_NETGRAPH_L2CAP_init_sys_init 0000000000000008 d __set_sysinit_set_sym_ng_l2capmodule_sys_init 0000000000000000 d __set_sysuninit_set_sym_M_NETGRAPH_L2CAP_uninit_sys_uninit U __stack_chk_fail U __stack_chk_guard w __start_set_modmetadata_set U __start_set_pcpu w __start_set_sysinit_set w __start_set_sysuninit_set w __stop_set_modmetadata_set U __stop_set_pcpu w __stop_set_sysinit_set w __stop_set_sysuninit_set 00000000000000c8 d _mod_metadata_md_ng_l2cap 00000000000000b0 d _mod_metadata_md_ng_l2cap_on_kernel 0000000000000100 d _mod_metadata_md_ng_l2cap_on_netgraph 0000000000000130 d _mod_metadata_md_ng_l2cap_on_ng_bluetooth 0000000000000118 d _mod_metadata_ng_l2cap_version 0000000000000148 d _ng_l2cap_depend_on_kernel 00000000000001f0 d _ng_l2cap_depend_on_netgraph 0000000000000200 d _ng_l2cap_depend_on_ng_bluetooth 00000000000001fc d _ng_l2cap_version U bluetooth_hci_connect_timeout U bluetooth_l2cap_ertx_timeout U bluetooth_l2cap_rtx_timeout U callout_init U free 0000000000003630 t get_next_l2cap_opt U hz U m_adj U m_cat U m_copyback U m_copydata U m_freem U m_prepend U m_pullup U m_split U malloc U malloc_init U malloc_uninit U memcmp U memset U module_register_init U ng_address_ID U ng_address_hook U ng_callout U ng_free_item 0000000000008ed0 t ng_l2cap_chan_by_conhandle 0000000000008e70 t ng_l2cap_chan_by_scid 0000000000008ff0 t ng_l2cap_cmd_by_ident 0000000000000140 r ng_l2cap_cmdlist 0000000000009100 t ng_l2cap_command_timeout 0000000000008a80 t ng_l2cap_command_untimeout 0000000000008ae0 t ng_l2cap_con_by_addr 0000000000008b40 t ng_l2cap_con_by_handle 0000000000001070 t ng_l2cap_con_fail 00000000000084d0 t ng_l2cap_con_ref 00000000000085a0 t ng_l2cap_con_unref 0000000000000cd0 t ng_l2cap_con_wakeup 0000000000000830 t ng_l2cap_connect 0000000000000000 t ng_l2cap_constructor 0000000000008e60 t ng_l2cap_default_flow 0000000000000210 d ng_l2cap_default_flow.default_flow 0000000000000080 t ng_l2cap_default_rcvmsg 0000000000008650 t ng_l2cap_discon_timeout 0000000000008540 t ng_l2cap_discon_untimeout 0000000000000910 t ng_l2cap_disconnect 00000000000088c0 t ng_l2cap_free_chan 00000000000086d0 t ng_l2cap_free_con 0000000000009220 t ng_l2cap_get_ident 0000000000005040 t ng_l2cap_l2ca_cfg_ind 0000000000004450 t ng_l2cap_l2ca_cfg_req 0000000000004910 t ng_l2cap_l2ca_cfg_rsp 0000000000004ad0 t ng_l2cap_l2ca_cfg_rsp_req 0000000000004ef0 t ng_l2cap_l2ca_cfg_rsp_rsp 00000000000058e0 t ng_l2cap_l2ca_clt_receive 00000000000042d0 t ng_l2cap_l2ca_con_ind 0000000000003720 t ng_l2cap_l2ca_con_req 0000000000003b20 t ng_l2cap_l2ca_con_rsp 0000000000003cf0 t ng_l2cap_l2ca_con_rsp_req 0000000000004180 t ng_l2cap_l2ca_con_rsp_rsp 00000000000060e0 t ng_l2cap_l2ca_discon_ind 0000000000005c00 t ng_l2cap_l2ca_discon_req 0000000000005f90 t ng_l2cap_l2ca_discon_rsp 0000000000006b70 t ng_l2cap_l2ca_enable_clt 0000000000003fe0 t ng_l2cap_l2ca_encryption_change 0000000000006730 t ng_l2cap_l2ca_get_info_req 0000000000006a10 t ng_l2cap_l2ca_get_info_rsp 0000000000006260 t ng_l2cap_l2ca_grp_add_member_req 0000000000006270 t ng_l2cap_l2ca_grp_add_member_rsp 0000000000006250 t ng_l2cap_l2ca_grp_close 0000000000006240 t ng_l2cap_l2ca_grp_create 0000000000006290 t ng_l2cap_l2ca_grp_get_members 0000000000006280 t ng_l2cap_l2ca_grp_rem_member 00000000000062a0 t ng_l2cap_l2ca_ping_req 00000000000065b0 t ng_l2cap_l2ca_ping_rsp 0000000000005ab0 t ng_l2cap_l2ca_qos_ind 00000000000055c0 t ng_l2cap_l2ca_receive 00000000000051d0 t ng_l2cap_l2ca_write_req 0000000000005400 t ng_l2cap_l2ca_write_rsp 00000000000009e0 t ng_l2cap_lower_rcvmsg 0000000000006e50 t ng_l2cap_lp_con_cfm 0000000000007110 t ng_l2cap_lp_con_ind 0000000000006c50 t ng_l2cap_lp_con_req 0000000000006f50 t ng_l2cap_lp_deliver 0000000000007340 t ng_l2cap_lp_discon_ind 0000000000007740 t ng_l2cap_lp_enc_change 0000000000007640 t ng_l2cap_lp_qos_cfm 0000000000007680 t ng_l2cap_lp_qos_ind 0000000000007430 t ng_l2cap_lp_qos_req 0000000000007b40 t ng_l2cap_lp_receive 0000000000007850 t ng_l2cap_lp_send 0000000000009020 t ng_l2cap_lp_timeout 00000000000090a0 t ng_l2cap_lp_untimeout 0000000000000158 d ng_l2cap_mod 0000000000008b70 t ng_l2cap_new_chan 0000000000008f10 t ng_l2cap_new_cmd 00000000000083e0 t ng_l2cap_new_con 000000000000020c d ng_l2cap_new_con.fake_con_handle 00000000000007b0 t ng_l2cap_newhook 0000000000009180 t ng_l2cap_prepend 00000000000030c0 t ng_l2cap_process_cmd_rej 0000000000001280 t ng_l2cap_process_command_timeout 0000000000008020 t ng_l2cap_process_discon_timeout 0000000000007f30 t ng_l2cap_process_lp_timeout 0000000000000890 t ng_l2cap_rcvdata 00000000000014d0 t ng_l2cap_receive 0000000000008220 t ng_l2cap_send_hook_info 00000000000006e0 t ng_l2cap_shutdown 0000000000000c20 t ng_l2cap_upper_rcvmsg 00000000000000e0 d ng_l2capmodule_sys_init U ng_mod_event U ng_package_data U ng_package_msg U ng_parse_uint16_type U ng_rmnode_self U ng_send_fn U ng_snd_item U ng_uncallout U ng_unref_node U panic U printf 00000000000034c0 t send_l2cap_con_rej 0000000000003330 t send_l2cap_reject U snprintf U strcmp U strncpy 0000000000000170 d typestruct U uma_zalloc_arg U zone_mbuf

Dependencies

7. usb.ko

• Interfaces for directly managing a usb device

Binary Name :	usb.ko
Size :	129K
Source path :	/usr/src/sys/dev/usb
Binary path :	/usr/obj/usr/src/amd64.amd64/sys/modules/usb/usb/usb.ko
List of c files :	usb_if.c usb_busdma.c usb_controller.c usb_core.c usb_debug.c usb_dev.c usb_device.c usb_dynamic.c usb_error.c usb_generic.c usb_handle_request.c usb_hid.c usb_hub.c usb_lookup.c usb_mbuf.c usb_msctest.c usb_parse.c usb_pf.c usb_process.c usb_request.c usb_transfer.c usb_util.c
NM symbol list :	See the full content of nm output U Giant U M_TEMP 00000000000007c0 D M_USB 0000000000000870 D M_USBDEV 00000000000008e0 d M_USBDEV_init_sys_init 0000000000000900 d M_USBDEV_uninit_sys_uninit 0000000000000830 d M_USB_init_sys_init 0000000000000850 d M_USB_uninit_sys_uninit U __mtx_lock_flags U __mtx_lock_spin_flags U __mtx_unlock_flags U __mtx_unlock_spin_flags 00000000000000b0 r __set_modmetadata_set_sym__mod_metadata_md_uhub_uhub 00000000000000a8 r __set_modmetadata_set_sym__mod_metadata_md_uhub_uhub_on_kernel 00000000000000a0 r __set_modmetadata_set_sym__mod_metadata_md_uhub_usbus 0000000000000098 r __set_modmetadata_set_sym__mod_metadata_md_uhub_usbus_on_kernel 0000000000000078 r __set_modmetadata_set_sym__mod_metadata_md_usbus_dwcotg 0000000000000070 r __set_modmetadata_set_sym__mod_metadata_md_usbus_dwcotg_on_kernel 0000000000000028 r __set_modmetadata_set_sym__mod_metadata_md_usbus_ehci 0000000000000020 r __set_modmetadata_set_sym__mod_metadata_md_usbus_ehci_on_kernel 0000000000000048 r __set_modmetadata_set_sym__mod_metadata_md_usbus_musbotg 0000000000000040 r __set_modmetadata_set_sym__mod_metadata_md_usbus_musbotg_on_kernel 0000000000000068 r __set_modmetadata_set_sym__mod_metadata_md_usbus_octusb 0000000000000060 r __set_modmetadata_set_sym__mod_metadata_md_usbus_octusb_on_kernel 0000000000000008 r __set_modmetadata_set_sym__mod_metadata_md_usbus_ohci 0000000000000000 r __set_modmetadata_set_sym__mod_metadata_md_usbus_ohci_on_kernel 0000000000000088 r __set_modmetadata_set_sym__mod_metadata_md_usbus_saf1761otg 0000000000000080 r __set_modmetadata_set_sym__mod_metadata_md_usbus_saf1761otg_on_kernel 0000000000000018 r __set_modmetadata_set_sym__mod_metadata_md_usbus_uhci 0000000000000010 r __set_modmetadata_set_sym__mod_metadata_md_usbus_uhci_on_kernel 0000000000000058 r __set_modmetadata_set_sym__mod_metadata_md_usbus_uss820dci 0000000000000050 r __set_modmetadata_set_sym__mod_metadata_md_usbus_uss820dci_on_kernel 0000000000000038 r __set_modmetadata_set_sym__mod_metadata_md_usbus_xhci 0000000000000030 r __set_modmetadata_set_sym__mod_metadata_md_usbus_xhci_on_kernel 00000000000000b8 r __set_modmetadata_set_sym__mod_metadata_uhub_version 0000000000000090 r __set_modmetadata_set_sym__mod_metadata_usb_version 0000000000000018 r __set_sysctl_set_sym_sysctl___hw_usb 0000000000000020 r __set_sysctl_set_sym_sysctl___hw_usb_debug 0000000000000048 r __set_sysctl_set_sym_sysctl___hw_usb_disable_enumeration 0000000000000050 r __set_sysctl_set_sym_sysctl___hw_usb_disable_port_power 0000000000000060 r __set_sysctl_set_sym_sysctl___hw_usb_full_ddesc 0000000000000000 r __set_sysctl_set_sym_sysctl___hw_usb_no_boot_wait 0000000000000058 r __set_sysctl_set_sym_sysctl___hw_usb_no_cs_fail 0000000000000010 r __set_sysctl_set_sym_sysctl___hw_usb_no_shutdown_wait 0000000000000008 r __set_sysctl_set_sym_sysctl___hw_usb_no_suspend_wait 0000000000000040 r __set_sysctl_set_sym_sysctl___hw_usb_power_timeout 0000000000000028 r __set_sysctl_set_sym_sysctl___hw_usb_template 0000000000000030 r __set_sysctl_set_sym_sysctl___hw_usb_usb_lang_id 0000000000000038 r __set_sysctl_set_sym_sysctl___hw_usb_usb_lang_mask 0000000000000050 d __set_sysinit_set_sym_M_USBDEV_init_sys_init 0000000000000048 d __set_sysinit_set_sym_M_USB_init_sys_init 0000000000000070 d __set_sysinit_set_sym_uhub_uhubmodule_sys_init 0000000000000068 d __set_sysinit_set_sym_uhub_usbusmodule_sys_init 0000000000000060 d __set_sysinit_set_sym_usb_dev_init_post_sys_init 0000000000000058 d __set_sysinit_set_sym_usb_dev_init_sys_init 0000000000000078 d __set_sysinit_set_sym_usb_needs_explore_init_sys_init 0000000000000080 d __set_sysinit_set_sym_usbpf_init_sys_init 0000000000000038 d __set_sysinit_set_sym_usbus_dwcotgmodule_sys_init 0000000000000010 d __set_sysinit_set_sym_usbus_ehcimodule_sys_init 0000000000000020 d __set_sysinit_set_sym_usbus_musbotgmodule_sys_init 0000000000000030 d __set_sysinit_set_sym_usbus_octusbmodule_sys_init 0000000000000000 d __set_sysinit_set_sym_usbus_ohcimodule_sys_init 0000000000000040 d __set_sysinit_set_sym_usbus_saf1761otgmodule_sys_init 0000000000000008 d __set_sysinit_set_sym_usbus_uhcimodule_sys_init 0000000000000028 d __set_sysinit_set_sym_usbus_uss820dcimodule_sys_init 0000000000000018 d __set_sysinit_set_sym_usbus_xhcimodule_sys_init 0000000000000010 d __set_sysuninit_set_sym_M_USBDEV_uninit_sys_uninit 0000000000000008 d __set_sysuninit_set_sym_M_USB_uninit_sys_uninit 0000000000000000 d __set_sysuninit_set_sym_usb_bus_unload_sys_uninit 0000000000000018 d __set_sysuninit_set_sym_usb_dev_uninit_sys_uninit 0000000000000020 d __set_sysuninit_set_sym_usbpf_uninit_sys_uninit U __stack_chk_fail U __stack_chk_guard w __start_set_modmetadata_set U __start_set_pcpu w __start_set_sysctl_set w __start_set_sysinit_set w __start_set_sysuninit_set U __start_set_vnet w __stop_set_modmetadata_set U __stop_set_pcpu w __stop_set_sysctl_set w __stop_set_sysinit_set w __stop_set_sysuninit_set U __stop_set_vnet U _callout_init_lock U _callout_stop_safe U _cv_timedwait_sig_sbt U _cv_wait U _cv_wait_sig 0000000000001048 d _mod_metadata_md_uhub_uhub 0000000000001030 d _mod_metadata_md_uhub_uhub_on_kernel 0000000000000ff8 d _mod_metadata_md_uhub_usbus 0000000000000fe0 d _mod_metadata_md_uhub_usbus_on_kernel 00000000000003c8 d _mod_metadata_md_usbus_dwcotg 00000000000003b0 d _mod_metadata_md_usbus_dwcotg_on_kernel 0000000000000238 d _mod_metadata_md_usbus_ehci 0000000000000220 d _mod_metadata_md_usbus_ehci_on_kernel 00000000000002d8 d _mod_metadata_md_usbus_musbotg 00000000000002c0 d _mod_metadata_md_usbus_musbotg_on_kernel 0000000000000378 d _mod_metadata_md_usbus_octusb 0000000000000360 d _mod_metadata_md_usbus_octusb_on_kernel 0000000000000198 d _mod_metadata_md_usbus_ohci 0000000000000180 d _mod_metadata_md_usbus_ohci_on_kernel 0000000000000418 d _mod_metadata_md_usbus_saf1761otg 0000000000000400 d _mod_metadata_md_usbus_saf1761otg_on_kernel 00000000000001e8 d _mod_metadata_md_usbus_uhci 00000000000001d0 d _mod_metadata_md_usbus_uhci_on_kernel 0000000000000328 d _mod_metadata_md_usbus_uss820dci 0000000000000310 d _mod_metadata_md_usbus_uss820dci_on_kernel 0000000000000288 d _mod_metadata_md_usbus_xhci 0000000000000270 d _mod_metadata_md_usbus_xhci_on_kernel 0000000000001080 d _mod_metadata_uhub_version 0000000000000920 d _mod_metadata_usb_version U _mtx_destroy U _mtx_init U _sx_slock U _sx_sunlock U _sx_xlock U _sx_xunlock 0000000000001110 d _uhub_uhub_depend_on_kernel 00000000000010bc d _uhub_usbus_depend_on_kernel 0000000000001168 d _uhub_version 0000000000000938 d _usb_version 0000000000000708 d _usbus_dwcotg_depend_on_kernel 0000000000000550 d _usbus_ehci_depend_on_kernel 0000000000000600 d _usbus_musbotg_depend_on_kernel 00000000000006b0 d _usbus_octusb_depend_on_kernel 0000000000000470 d _usbus_ohci_depend_on_kernel 0000000000000760 d _usbus_saf1761otg_depend_on_kernel 00000000000004f8 d _usbus_uhci_depend_on_kernel 0000000000000658 d _usbus_uss820dci_depend_on_kernel 00000000000005a8 d _usbus_xhci_depend_on_kernel 0000000000011980 t bbb_attach 0000000000012790 t bbb_command_callback 0000000000011b60 t bbb_command_start 0000000000001b70 r bbb_config 0000000000012a10 t bbb_data_rd_cs_callback 0000000000012900 t bbb_data_read_callback 0000000000012b90 t bbb_data_wr_cs_callback 0000000000012a80 t bbb_data_write_callback 0000000000001c60 r bbb_raw_config 0000000000012cf0 t bbb_raw_write_callback 0000000000012c00 t bbb_status_callback U bootverbose U bpf_tap_if U bpfattach U bpfdetach U bus_child_location_desc U bus_child_pnpinfo_desc U bus_dma_tag_create U bus_dma_tag_destroy U bus_dmamap_load U bus_driver_added_desc U bus_generic_detach U bus_generic_get_device_path U bus_generic_shutdown U bus_get_device_path_desc U bus_topo_lock U bus_topo_unlock U callout_reset_sbt_on U cold U copyin U copyout U cv_broadcastpri U cv_destroy U cv_init U cv_signal U delist_dev U destroy_dev U devclass_find U devclass_get_device U devclass_get_devices U devclass_get_maxunit U devclass_get_softc U devctl_notify U devfs_get_cdevpriv U devfs_set_cdevpriv U device_add_child U device_attach_desc U device_delete_child U device_detach_desc U device_get_desc U device_get_ivars U device_get_nameunit U device_get_parent U device_get_softc U device_get_sysctl_ctx U device_get_sysctl_tree U device_get_unit U device_is_alive U device_is_attached U device_printf U device_probe_and_attach U device_probe_desc U device_quiet U device_resume_desc U device_set_desc_copy U device_set_ivars U device_set_softc 000000000001a930 T device_set_usb_desc U device_shutdown_desc U device_suspend_desc U driver_module_handler U eventhandler_find_list U eventhandler_prune_list U free U fueword U fueword32 000000000000e220 T hid_get_descriptor_from_usb U hz U if_alloc U if_attach U if_clone_detach U if_detach U if_free U if_getbpf U if_getdunit U if_getsoftc U if_initname U if_setflagbits U if_setioctlfn U if_setname U if_setsoftc U ifc_alloc_unit U ifc_attach_cloner) U ifc_free_unit U ifc_name2unit U kdb_active U kern_psignal -- Kernel (sys/kern/kern_sig.c) U knlist_add -- Kernel (sys/kern/kern_event.c) U knlist_cleardel -- Kernel (sys/kern/kern_event.c) U knlist_destroy -- Kernel (sys/kern/kern_event.c) U knlist_init_mtx -- Kernel (sys/kern/kern_event.c) U knlist_remove -- Kernel (sys/kern/kern_event.c) U knote -- Kernel (sys/kern/kern_event.c) U kobj_error_method -- Kernel (sys/kern/subr_kobj.c:) U kobj_lookup_method -- Kernel (sys/kern/subr_kobj.c:) U kproc_kthread_add -- Kernel (sys/kern/kern_kthread.c) U kthread_exit -- Kernel (sys/kern/kern_kthread.c) U kthread_suspend_check -- Kernel (sys/kern/kern_kthread.c) U m_apply U make_dev -- Kern (sys/kern/kern_conf.c:) U make_dev_alias -- Kern (sys/kern/kern_conf.c:) U make_dev_args_init_impl -- Kern (sys/kern/kern_conf.c:) U make_dev_s -- Kern (sys/kern/kern_conf.c:) U malloc -- Kernel (sys/kern/kern_malloc.c) U malloc_init -- Kernel (sys/kern/kern_malloc.c) U malloc_uninit -- Kernel (sys/kern/kern_malloc.c) U memcpy U memset U module_register_init -- Kernel (sys/kern/kern_module.c) U panic U pause_sbt -- Kernel (sys/kern/kern_synch.c:) U printf U priv_check U rebooting U root_mount_hold -- Kernel (sys/kern/vfs_mountroot.c:) U root_mount_rel -- Kernel (sys/kern/vfs_mountroot.c:) U rt_ifmsg -- Kernel(sys/net/route.c) // netstat U sbuf_data -- Kern (sys/kern/subr_sbuf.c) U sbuf_delete -- Kern (sys/kern/subr_sbuf.c) U sbuf_finish -- Kern (sys/kern/subr_sbuf.c) U sbuf_new -- Kern (sys/kern/subr_sbuf.c) U sbuf_printf -- Kern (sys/kern/subr_sbuf.c) U sched_prio -- Kern (sys/kern/sched_ule.c:) 000000000000117c d scsi_allow_removal 00000000000011ac d scsi_cmotech_eject 00000000000011f0 d scsi_huawei_eject 0000000000001200 d scsi_huawei_eject2 00000000000011c0 d scsi_huawei_eject3 0000000000001210 d scsi_huawei_eject4 0000000000001170 d scsi_inquiry 0000000000001176 d scsi_prevent_removal 00000000000011e0 d scsi_read_capacity 0000000000001188 d scsi_request_sense 000000000000119a d scsi_rezero_init 0000000000001182 d scsi_start_unit 0000000000001194 d scsi_stop_unit 00000000000011d6 d scsi_sync_cache 00000000000011d0 d scsi_tct_eject 0000000000000078 b scsi_test_unit_ready 00000000000011a0 d scsi_ztestor_eject U seldrain -- Kern (sys/kern/sys_generic.c) U selrecord -- Kern (sys/kern/sys_generic.c) U selwakeup -- Kern (sys/kern/sys_generic.c) U snprintf 0000000000001580 r statestr U strcmp U strdup U strlcpy U strlen U strncmp U suword16 U suword32 U sx_destroy -- Kern (sys/kern/kern_sx.c) U sx_init_flags -- Kern (sys/kern/kern_sx.c) U sysctl___hw 0000000000000940 D sysctl___hw_usb 00000000000009b0 d sysctl___hw_usb_debug 0000000000000ed0 d sysctl___hw_usb_disable_enumeration 0000000000000f40 d sysctl___hw_usb_disable_port_power 00000000000012d0 d sysctl___hw_usb_full_ddesc 0000000000000030 d sysctl___hw_usb_no_boot_wait 0000000000001260 d sysctl___hw_usb_no_cs_fail 0000000000000110 d sysctl___hw_usb_no_shutdown_wait 00000000000000a0 d sysctl___hw_usb_no_suspend_wait 0000000000000e60 d sysctl___hw_usb_power_timeout 0000000000000c48 d sysctl___hw_usb_template 0000000000000cb8 d sysctl___hw_usb_usb_lang_id 0000000000000d28 d sysctl___hw_usb_usb_lang_mask U sysctl_add_oid -- Kern (sys/kern/kern_sysctl.c) U sysctl_handle_int -- Kern (sys/kern/kern_sysctl.c) 000000000000a190 t sysctl_hw_usb_template U thread_lock_flags_ -- Kern (sys/kern/kern_mutex.c) U tick_sbt U ticks 000000000000a6a0 t ugen_close 000000000000d5e0 t ugen_ctrl_fs_callback 000000000000cf80 t ugen_ctrl_read_callback 000000000000d2c0 t ugen_ctrl_write_callback 000000000000cd80 T ugen_do_request 000000000000cbe0 T ugen_fill_deviceinfo 000000000000d430 t ugen_fs_getbuffer 000000000000ce10 t ugen_fs_uninit 000000000000d480 t ugen_fs_update 000000000000a730 t ugen_ioctl 000000000000b290 t ugen_ioctl_post 000000000000d190 t ugen_isoc_read_callback 000000000000d360 t ugen_isoc_write_callback 000000000000a5d0 t ugen_open 000000000000cf20 t ugen_read_clear_stall_callback 000000000000d510 t ugen_set_config 000000000000d560 t ugen_set_interface 000000000000c890 t ugen_start_read 000000000000ca50 t ugen_start_write 000000000000ca20 t ugen_stop_io 000000000000d090 t ugen_transfer_setup 000000000000d260 t ugen_write_clear_stall_callback 000000000000e8f0 T uhub_attach 000000000000fa90 T uhub_child_location 0000000000011120 t uhub_child_pnpinfo 0000000000001ac0 r uhub_config 000000000000e500 T uhub_count_active_host_ports 000000000000f850 T uhub_detach 0000000000000fb0 D uhub_driver 0000000000011340 t uhub_driver_added 000000000000ef20 t uhub_explore 000000000000e5c0 T uhub_explore_handle_re_enumerate 000000000000f9a0 T uhub_find_iface_index 000000000000fbf0 T uhub_get_device_path 00000000000113b0 t uhub_intr_callback 0000000000001a20 r uhub_methods 000000000000e7b0 T uhub_probe 000000000000e7f0 T uhub_query_info 0000000000011420 t uhub_reset_tt_callback 000000000000f710 t uhub_reset_tt_proc 0000000000011110 t uhub_resume 000000000000e6a0 T uhub_root_intr 0000000000011100 t uhub_suspend 000000000000e3d0 T uhub_tt_buffer_reset_async_locked 0000000000001138 d uhub_uhub_driver_mod 0000000000001120 d uhub_uhub_mod 0000000000001060 d uhub_uhubmodule_sys_init 00000000000010e0 d uhub_usbus_driver_mod 00000000000010c8 d uhub_usbus_mod 0000000000001010 d uhub_usbusmodule_sys_init U uiomove -- Kern (sys/kern/subr_uio.c:) 00000000000080c0 T usb_alloc_device 00000000000116e0 T usb_alloc_mbufs 0000000000004cf0 T usb_alloc_symlink 0000000000001b60 t usb_attach 00000000000015e0 T usb_bdma_done_event 0000000000001600 T usb_bdma_post_sync 0000000000001530 T usb_bdma_pre_sync 00000000000010c0 T usb_bdma_work_loop 00000000000023c0 t usb_bus_attach 0000000000002a20 t usb_bus_cleanup 0000000000002310 t usb_bus_detach 00000000000021b0 t usb_bus_explore 0000000000001880 T usb_bus_mem_alloc_all 00000000000019f0 t usb_bus_mem_alloc_all_cb 0000000000001850 T usb_bus_mem_flush_all 0000000000001870 t usb_bus_mem_flush_all_cb 0000000000001a30 T usb_bus_mem_free_all 0000000000001a80 t usb_bus_mem_free_all_cb 000000000000e590 T usb_bus_port_get_device 0000000000010440 T usb_bus_port_set_device 0000000000010540 T usb_bus_power_update 0000000000010740 T usb_bus_powerd 0000000000002880 t usb_bus_reset 00000000000017e0 T usb_bus_reset_async_locked 00000000000026c0 t usb_bus_resume 00000000000028c0 t usb_bus_shutdown 0000000000002560 t usb_bus_suspend 000000000000a530 T usb_bus_unload 0000000000000450 d usb_bus_unload_sys_uninit 00000000000182d0 t usb_callback_proc 0000000000006ed0 t usb_cdev_create 000000000000e1d0 t usb_check_alt_setting 000000000001abf0 T usb_check_request 0000000000005c70 t usb_close 00000000000192f0 T usb_command_wrapper 0000000000006a20 t usb_config_parse 0000000000001d10 r usb_control_ep_cfg 0000000000001cc0 r usb_control_ep_quirk_cfg 000000000000000c B usb_debug 0000000000012de0 T usb_desc_foreach 00000000000099e0 T usb_destroy_dev 00000000000099b0 T usb_destroy_dev_sync 0000000000001eb0 t usb_detach 0000000000007550 T usb_detach_device 0000000000000060 b usb_dev 0000000000005ce0 t usb_dev_get_ep 0000000000005d40 t usb_dev_init 0000000000005ea0 t usb_dev_init_post 0000000000000af8 d usb_dev_init_post_sys_init 0000000000000ad8 d usb_dev_init_sys_init 0000000000010a90 t usb_dev_resume_peer 0000000000010ca0 t usb_dev_suspend_peer 0000000000005fa0 t usb_dev_uninit 0000000000000b18 d usb_dev_uninit_sys_uninit 0000000000000068 B usb_devclass_ptr 0000000000009c00 T usb_devinfo 0000000000000a20 D usb_devsw 0000000000000074 b usb_disable_enumeration 0000000000000070 b usb_disable_port_power 0000000000019b70 T usb_dma_delay_done_cb 00000000000017d0 t usb_dma_lock_cb 0000000000000a70 T usb_dma_tag_find 0000000000000e70 T usb_dma_tag_setup 0000000000001040 T usb_dma_tag_unsetup 0000000000014070 T usb_do_clear_stall_callback 00000000000004c8 d usb_driver 0000000000002c20 T usb_dump_device 0000000000002e60 T usb_dump_endpoint 0000000000002bd0 T usb_dump_iface 0000000000002cb0 T usb_dump_queue 0000000000002ef0 T usb_dump_xfer 0000000000012400 T usb_dymo_eject 0000000000001b68 r usb_dymo_eject.data 0000000000012f40 T usb_ed_comp_foreach 0000000000012ee0 T usb_edesc_foreach 00000000000063e0 T usb_endpoint_foreach 00000000000015b0 r usb_errstr_table 0000000000004c60 t usb_fifo_alloc 0000000000004dd0 T usb_fifo_alloc_buffer 00000000000047a0 T usb_fifo_attach 0000000000004390 t usb_fifo_close 0000000000004fd0 T usb_fifo_detach 00000000000060f0 t usb_fifo_dummy_close 0000000000006110 t usb_fifo_dummy_cmd 0000000000006100 t usb_fifo_dummy_ioctl 00000000000060e0 t usb_fifo_dummy_open 0000000000004000 T usb_fifo_free 0000000000004f30 T usb_fifo_free_buffer 00000000000052d0 T usb_fifo_get_data 0000000000005590 T usb_fifo_get_data_buffer 00000000000055b0 T usb_fifo_get_data_error 0000000000005430 T usb_fifo_get_data_linear 0000000000005b10 t usb_fifo_open 0000000000005020 T usb_fifo_put_bytes_max 0000000000005040 T usb_fifo_put_data 0000000000005240 T usb_fifo_put_data_buffer 00000000000052b0 T usb_fifo_put_data_error 0000000000005140 T usb_fifo_put_data_linear 00000000000045f0 T usb_fifo_reset 0000000000005780 T usb_fifo_set_close_zlp 00000000000057a0 T usb_fifo_set_write_defrag 00000000000046c0 T usb_fifo_signal 00000000000057c0 T usb_fifo_softc 0000000000004670 T usb_fifo_wait 00000000000046f0 T usb_fifo_wakeup 0000000000005fe0 t usb_filter_detach 0000000000006060 t usb_filter_read 0000000000006000 t usb_filter_write 0000000000000c18 d usb_filtops_read 0000000000000bf0 d usb_filtops_write 0000000000009680 T usb_free_device 00000000000042f0 T usb_free_symlink 0000000000000098 b usb_full_ddesc 0000000000009dc0 T usb_get_device_state 0000000000007e40 T usb_get_langid 0000000000006140 T usb_get_manufacturer 0000000000006160 T usb_get_product 0000000000006180 T usb_get_serial 000000000000e130 t usb_handle_remote_wakeup 000000000000d730 t usb_handle_request 000000000000d690 T usb_handle_request_callback 0000000000000000 D usb_handle_request_desc 000000000000dfc0 t usb_handle_set_config 000000000000e090 t usb_handle_set_stall 000000000000fee0 t usb_hs_bandwidth_adjust 000000000000fd70 T usb_hs_bandwidth_alloc 0000000000010140 T usb_hs_bandwidth_free 0000000000012e30 T usb_idesc_foreach 0000000000011830 T usb_iface_is_cdrom 0000000000008de0 t usb_init_endpoint 00000000000039c0 t usb_ioctl 00000000000101e0 T usb_isoc_time_expand 0000000000003ef0 t usb_kqfilter 0000000000000d98 d usb_lang_id 0000000000000d9c d usb_lang_mask 0000000000000db0 D usb_linux_free_device_p 000000000000a440 t usb_linux_free_device_w 000000000000a570 T usb_linux_unload 0000000000008fe0 T usb_make_dev 000000000001aae0 T usb_make_str_desc 00000000000014d0 r usb_methods 0000000000011c70 T usb_msc_auto_quirk 0000000000012250 T usb_msc_eject 0000000000012520 T usb_msc_read_10 00000000000126d0 T usb_msc_read_capacity 00000000000125f0 T usb_msc_write_10 000000000000e6b0 T usb_needs_explore 00000000000104d0 T usb_needs_explore_all 0000000000011550 t usb_needs_explore_init 0000000000001098 d usb_needs_explore_init_sys_init 0000000000000000 b usb_no_boot_wait 0000000000000094 b usb_no_cs_fail 0000000000000008 b usb_no_shutdown_wait 0000000000000004 b usb_no_suspend_wait 00000000000093c0 t usb_notify_addq 0000000000002f90 t usb_open 000000000001a9d0 T usb_pause_mtx 0000000000000870 T usb_pc_alloc_mem 0000000000000b80 t usb_pc_alloc_mem_cb 00000000000000b0 T usb_pc_buffer_is_aligned 0000000000001680 t usb_pc_common_mem_cb 0000000000000b90 T usb_pc_cpu_flush 0000000000000d50 T usb_pc_cpu_invalidate 0000000000000db0 T usb_pc_dmamap_create 0000000000000e10 T usb_pc_dmamap_destroy 0000000000000bc0 T usb_pc_free_mem 0000000000000c30 T usb_pc_load_mem 0000000000000d40 t usb_pc_load_mem_cb 0000000000000090 b usb_pcount 0000000000009d90 T usb_peer_can_wakeup 0000000000003d00 t usb_poll 00000000000010b8 d usb_power_timeout 0000000000002ae0 t usb_power_wdog 000000000001aa60 T usb_printbcd 0000000000001b50 t usb_probe 0000000000007730 T usb_probe_and_attach 0000000000013ab0 T usb_proc_create 0000000000013d40 T usb_proc_drain 0000000000001ad0 T usb_proc_explore_lock 0000000000001ab0 T usb_proc_explore_msignal 0000000000001a90 T usb_proc_explore_mwait 0000000000001b10 T usb_proc_explore_unlock 0000000000013d00 T usb_proc_free 0000000000014010 T usb_proc_is_called_from 0000000000013f00 T usb_proc_is_gone 0000000000013e10 T usb_proc_msignal 0000000000013f10 T usb_proc_mwait 0000000000013fe0 T usb_proc_rewakeup 0000000000013b90 t usb_process 0000000000000dc8 D usb_quirk_ioctl_p 000000000000a490 t usb_quirk_ioctl_w 000000000000a4a0 T usb_quirk_unload 0000000000003450 t usb_read 00000000000055d0 T usb_read_symlink 00000000000057d0 t usb_ref_device 0000000000000010 B usb_ref_lock 000000000001a910 t usb_request_callback 00000000000074e0 T usb_reset_iface_endpoints 0000000000002080 t usb_resume 00000000000069b0 T usb_set_device_state 0000000000009130 T usb_set_device_strings 0000000000002100 t usb_shutdown 0000000000006120 T usb_statestr 0000000000000b38 d usb_static_devsw 0000000000005ee0 t usb_static_ioctl 000000000000157c R usb_string_lang_en 0000000000001fd0 t usb_suspend 0000000000007c80 T usb_suspend_resume 0000000000000050 b usb_sym_head 0000000000000030 b usb_sym_lock 0000000000000018 D usb_take_controller_desc 0000000000000da0 D usb_temp_get_desc_p 000000000000a420 t usb_temp_get_desc_w 0000000000000da8 D usb_temp_setup_by_index_p 000000000000a430 t usb_temp_setup_by_index_w 000000000000a4e0 T usb_temp_unload 0000000000000db8 D usb_temp_unsetup_p 000000000000a450 t usb_temp_unsetup_w 0000000000000c40 D usb_template 0000000000007c10 T usb_test_quirk 0000000000000dc0 D usb_test_quirk_p 000000000000a480 t usb_test_quirk_w 000000000000a220 t usb_trigger_reprobe_on_off 000000000001aa80 T usb_trim_spaces 0000000000000dd0 D usb_ugen_methods 00000000000004b0 T usb_uiomove 00000000000067e0 t usb_unconfigure 0000000000005a40 t usb_unref_device 00000000000036c0 t usb_write 0000000000009fa0 T usbd_add_dynamic_quirk 0000000000015420 T usbd_alloc_config_desc 0000000000017960 t usbd_callback_wrapper 000000000001a250 T usbd_clear_data_toggle 000000000001a300 T usbd_clear_stall_callback 000000000001a210 T usbd_clear_stall_locked 0000000000008d20 t usbd_clear_stall_proc 0000000000000190 T usbd_copy_in 0000000000000280 T usbd_copy_in_user 00000000000005b0 T usbd_copy_out 00000000000006a0 T usbd_copy_out_user 0000000000007fc0 T usbd_ctrl_lock 000000000001a090 T usbd_ctrl_transfer_setup 0000000000008050 T usbd_ctrl_unlock 0000000000009de0 T usbd_device_attached 0000000000014030 T usbd_do_request_callback 0000000000014370 T usbd_do_request_flags 0000000000014a00 T usbd_do_request_proc 0000000000002bc0 T usbd_dummy_timeout 0000000000009ef0 T usbd_enum_is_locked 0000000000006770 T usbd_enum_lock 0000000000009df0 T usbd_enum_lock_sig 0000000000007000 T usbd_enum_unlock 000000000000a5b0 T usbd_errstr 0000000000011040 T usbd_filter_power_mode 0000000000009b00 T usbd_find_descriptor 00000000000007a0 T usbd_frame_zero 0000000000015450 T usbd_free_config_desc 0000000000010210 T usbd_fs_isoc_schedule_alloc_slot 0000000000009d60 T usbd_get_bus_index 0000000000009bc0 T usbd_get_config_descriptor 0000000000009d30 T usbd_get_device_descriptor 0000000000009d80 T usbd_get_device_index 0000000000016370 T usbd_get_dma_delay 0000000000006230 T usbd_get_endpoint 000000000000a180 T usbd_get_endpoint_mode 00000000000061a0 T usbd_get_ep_by_addr 0000000000007210 T usbd_get_iface 0000000000009d50 T usbd_get_interface_altindex 0000000000009be0 T usbd_get_interface_descriptor 0000000000009d10 T usbd_get_isoc_fps 0000000000016820 T usbd_get_max_frame_length 0000000000009cf0 T usbd_get_mode 0000000000013010 T usbd_get_no_alts 0000000000012fa0 T usbd_get_no_descriptors 0000000000000000 T usbd_get_page 0000000000009d00 T usbd_get_speed 0000000000001d7e r usbd_get_std_packet_size.bulk_min 0000000000001d74 r usbd_get_std_packet_size.control_min 0000000000001d60 r usbd_get_std_packet_size.intr_range_max 0000000000001d6a r usbd_get_std_packet_size.isoc_range_max 0000000000002b90 T usbd_in_polling_mode 00000000000063b0 T usbd_interface_count 00000000000115c0 T usbd_lookup_id_by_info 00000000000116b0 T usbd_lookup_id_by_uaa 0000000000000380 T usbd_m_copy_in 00000000000003b0 t usbd_m_copy_in_cb 00000000000193d0 T usbd_pipe_enter 0000000000019e00 T usbd_pipe_start 0000000000016210 T usbd_req_clear_device_feature 0000000000015880 T usbd_req_clear_hub_feature 0000000000014c40 T usbd_req_clear_port_feature 0000000000016180 T usbd_req_clear_tt_buffer 00000000000155a0 T usbd_req_get_alt_interface_no 0000000000015cb0 T usbd_req_get_config 00000000000153d0 T usbd_req_get_config_desc 0000000000015470 T usbd_req_get_config_desc_full 0000000000014ee0 T usbd_req_get_desc 00000000000152d0 T usbd_req_get_descriptor_ptr 0000000000015570 T usbd_req_get_device_desc 00000000000156c0 T usbd_req_get_device_status 000000000000e260 T usbd_req_get_hid_desc 0000000000015700 T usbd_req_get_hub_descriptor 00000000000157a0 T usbd_req_get_hub_status 0000000000014cc0 T usbd_req_get_port_status 0000000000015ad0 T usbd_req_get_report 0000000000015bf0 T usbd_req_get_report_descriptor 0000000000015750 T usbd_req_get_ss_hub_descriptor 0000000000015150 T usbd_req_get_string_any 00000000000152a0 T usbd_req_get_string_desc 0000000000015e70 T usbd_req_re_enumerate 0000000000014ab0 T usbd_req_reset_port 0000000000016120 T usbd_req_reset_tt 00000000000157e0 T usbd_req_set_address 0000000000015620 T usbd_req_set_alt_interface_no 0000000000015c70 T usbd_req_set_config 0000000000016250 T usbd_req_set_device_feature 0000000000015980 T usbd_req_set_hub_depth 00000000000158c0 T usbd_req_set_hub_feature 0000000000015900 T usbd_req_set_hub_u1_timeout 0000000000015940 T usbd_req_set_hub_u2_timeout 0000000000015b60 T usbd_req_set_idle 00000000000162d0 T usbd_req_set_lpm_info 0000000000014c80 T usbd_req_set_port_feature 0000000000016290 T usbd_req_set_port_link_state 00000000000159c0 T usbd_req_set_protocol 0000000000015a40 T usbd_req_set_report 0000000000014d00 T usbd_req_warm_reset_port 0000000000007050 T usbd_set_alt_interface_index 0000000000006440 T usbd_set_config_index 000000000000a080 T usbd_set_endpoint_mode 0000000000007240 T usbd_set_endpoint_stall 00000000000076f0 T usbd_set_parent_iface 0000000000009f10 T usbd_set_pnpinfo 000000000000f7e0 T usbd_set_power_mode 0000000000015cf0 T usbd_setup_device_desc 0000000000009e90 T usbd_sr_lock 0000000000009ec0 T usbd_sr_unlock 0000000000011080 T usbd_start_re_enumerate 00000000000110b0 T usbd_start_set_config 0000000000019d80 T usbd_transfer_clear_stall 00000000000190c0 T usbd_transfer_dequeue 0000000000019100 T usbd_transfer_done 00000000000187d0 T usbd_transfer_drain 0000000000019b80 T usbd_transfer_enqueue 00000000000198d0 T usbd_transfer_pending 000000000001a3d0 T usbd_transfer_poll 0000000000010550 T usbd_transfer_power_ref 0000000000001b10 r usbd_transfer_power_ref.power_mask 00000000000171b0 T usbd_transfer_setup 00000000000168e0 T usbd_transfer_setup_sub 00000000000163c0 T usbd_transfer_setup_sub_malloc 0000000000019580 T usbd_transfer_start 000000000001a040 t usbd_transfer_start_cb 00000000000196e0 T usbd_transfer_stop 00000000000188a0 T usbd_transfer_submit 0000000000019fd0 T usbd_transfer_timeout_ms 0000000000018590 T usbd_transfer_unsetup 0000000000018440 t usbd_transfer_unsetup_sub 000000000001a760 T usbd_xfer_clr_flag 0000000000019a70 T usbd_xfer_frame_data 0000000000019a00 T usbd_xfer_frame_len 0000000000019c30 T usbd_xfer_get_and_clr_zlp 00000000000199f0 T usbd_xfer_get_fps_shift 00000000000199a0 T usbd_xfer_get_frame 00000000000199c0 T usbd_xfer_get_frame_buffer 000000000001a7d0 T usbd_xfer_get_isochronous_start_frame 000000000001a700 T usbd_xfer_get_priv 000000000001a7a0 T usbd_xfer_get_timestamp 0000000000019d60 T usbd_xfer_is_stalled 0000000000019b60 T usbd_xfer_max_framelen 0000000000019b40 T usbd_xfer_max_frames 0000000000019b50 T usbd_xfer_max_len 000000000001a7b0 T usbd_xfer_maxp_was_clamped 0000000000019ab0 T usbd_xfer_old_frame_length 000000000001a720 T usbd_xfer_set_flag 0000000000019a20 T usbd_xfer_set_frame_data 0000000000019a50 T usbd_xfer_set_frame_len 0000000000017180 T usbd_xfer_set_frame_offset 0000000000019b30 T usbd_xfer_set_frames 0000000000019b10 T usbd_xfer_set_interval 000000000001a710 T usbd_xfer_set_priv 0000000000019ce0 T usbd_xfer_set_stall 0000000000019b20 T usbd_xfer_set_timeout 0000000000019bb0 T usbd_xfer_set_zlp 000000000001a6f0 T usbd_xfer_softc 000000000001a3c0 T usbd_xfer_state 0000000000019ad0 T usbd_xfer_status 0000000000013090 T usbpf_attach 0000000000013840 t usbpf_clone_create 0000000000013110 t usbpf_clone_destroy 0000000000013810 t usbpf_clone_match 0000000000000080 b usbpf_cloner 00000000000130c0 T usbpf_detach 0000000000013990 t usbpf_ifname2ubus 00000000000137b0 t usbpf_init 0000000000001220 d usbpf_init_sys_init 0000000000013a00 t usbpf_ioctl 0000000000013a10 t usbpf_uninit 0000000000001240 d usbpf_uninit_sys_uninit 00000000000131c0 T usbpf_xfertap 0000000000000088 b usbproc 0000000000000730 d usbus_dwcotg_driver_mod 0000000000000718 d usbus_dwcotg_mod 00000000000003e0 d usbus_dwcotgmodule_sys_init 0000000000000578 d usbus_ehci_driver_mod 0000000000000560 d usbus_ehci_mod 0000000000000250 d usbus_ehcimodule_sys_init 0000000000000628 d usbus_musbotg_driver_mod 0000000000000610 d usbus_musbotg_mod 00000000000002f0 d usbus_musbotgmodule_sys_init 00000000000006d8 d usbus_octusb_driver_mod 00000000000006c0 d usbus_octusb_mod 0000000000000390 d usbus_octusbmodule_sys_init 0000000000000498 d usbus_ohci_driver_mod 0000000000000480 d usbus_ohci_mod 00000000000001b0 d usbus_ohcimodule_sys_init 0000000000000788 d usbus_saf1761otg_driver_mod 0000000000000770 d usbus_saf1761otg_mod 0000000000000430 d usbus_saf1761otgmodule_sys_init 0000000000000520 d usbus_uhci_driver_mod 0000000000000508 d usbus_uhci_mod 0000000000000200 d usbus_uhcimodule_sys_init 0000000000000680 d usbus_uss820dci_driver_mod 0000000000000668 d usbus_uss820dci_mod 0000000000000340 d usbus_uss820dcimodule_sys_init 00000000000005d0 d usbus_xhci_driver_mod 00000000000005b8 d usbus_xhci_mod 00000000000002a0 d usbus_xhcimodule_sys_init 0000000000001cb0 r usbusname

Dependencies

8. xhci.ko

• USB extensible host controller driver

Binary Name :	xhci.ko
Size :	33K
Source path :	/usr/src/sys/dev/usb/controller
Binary path :	/usr/obj/usr/src/amd64.amd64/sys/modules/usb/xhci.ko
List of c files :	xhci_pci.c xhci.c
NM symbol list :	See the full content of nm output 0000000000000098 d __Tunable_init_244_sys_init 00000000000000b8 d __Tunable_init_246_sys_init U __mtx_lock_flags U __mtx_unlock_flags 0000000000000010 r __set_modmetadata_set_sym__mod_metadata_md_xhci_on_usb 0000000000000008 r __set_modmetadata_set_sym__mod_metadata_md_xhci_pci 0000000000000000 r __set_modmetadata_set_sym__mod_metadata_md_xhci_pci_on_kernel 0000000000000000 r __set_sysctl_set_sym_sysctl___hw_usb_xhci 0000000000000010 r __set_sysctl_set_sym_sysctl___hw_usb_xhci_ctlquirk 0000000000000018 r __set_sysctl_set_sym_sysctl___hw_usb_xhci_dcepquirk 0000000000000008 r __set_sysctl_set_sym_sysctl___hw_usb_xhci_streams 0000000000000008 d __set_sysinit_set_sym___Tunable_init_244_sys_init 0000000000000010 d __set_sysinit_set_sym___Tunable_init_246_sys_init 0000000000000000 d __set_sysinit_set_sym_xhci_pcimodule_sys_init w __start_set_modmetadata_set U __start_set_pcpu w __start_set_sysctl_set w __start_set_sysinit_set w __stop_set_modmetadata_set U __stop_set_pcpu w __stop_set_sysctl_set w __stop_set_sysinit_set 0000000000000148 d __tunable_int_244 0000000000000158 d __tunable_int_246 U _callout_init_lock U _callout_stop_safe U _cv_timedwait_sbt 0000000000000080 d _mod_metadata_md_xhci_on_usb 0000000000000048 d _mod_metadata_md_xhci_pci 0000000000000030 d _mod_metadata_md_xhci_pci_on_kernel U _sx_xlock U _sx_xunlock 0000000000000138 d _xhci_depend_on_usb 00000000000000e0 d _xhci_pci_depend_on_kernel U bootverbose U bus_alloc_resource U bus_generic_resume U bus_generic_shutdown U bus_generic_suspend U bus_get_dma_tag U bus_read_ivar_desc U bus_release_resource U bus_setup_intr U bus_teardown_intr U callout_reset_sbt_on U cv_destroy U cv_init U cv_signal U device_add_child U device_attach_desc U device_delete_children U device_detach_desc U device_get_parent U device_get_softc U device_printf U device_probe_and_attach U device_probe_desc U device_resume_desc U device_set_desc U device_set_ivars U device_shutdown_desc U device_suspend_desc U driver_module_handler U hz U kobj_lookup_method U memset U module_register_init U panic U pci_alloc_msi_desc U pci_alloc_msix_desc U pci_disable_busmaster_desc U pci_enable_busmaster_desc 00000000000015b0 t pci_get_class 0000000000000880 t pci_get_devid 0000000000001690 t pci_get_progif 0000000000001620 t pci_get_subclass U pci_msix_table_bar_desc U pci_read_config_desc U pci_release_msi_desc U pci_write_config_desc U printf U rman_get_bushandle U rman_get_bustag U rman_get_rid U rman_get_size U snprintf U strlcpy U sx_destroy U sx_init_flags U sysctl___hw_usb 0000000000000168 d sysctl___hw_usb_xhci 0000000000000248 d sysctl___hw_usb_xhci_ctlquirk 00000000000002b8 d sysctl___hw_usb_xhci_dcepquirk 00000000000001d8 d sysctl___hw_usb_xhci_streams U sysctl_handle_int U tick_sbt U tunable_int_init U uhub_query_info U uhub_root_intr U usb_bus_mem_alloc_all U usb_bus_mem_flush_all U usb_bus_mem_free_all U usb_bus_reset_async_locked U usb_dma_delay_done_cb U usb_get_device_state U usb_make_str_desc U usb_pause_mtx U usb_pc_alloc_mem U usb_pc_cpu_flush U usb_pc_cpu_invalidate U usb_pc_free_mem U usb_proc_msignal U usb_take_controller_desc U usbd_copy_out U usbd_get_page U usbd_get_speed U usbd_in_polling_mode U usbd_transfer_dequeue U usbd_transfer_done U usbd_transfer_enqueue U usbd_transfer_setup_sub U usbd_transfer_setup_sub_malloc U usbd_transfer_timeout_ms U usbd_xfer_get_fps_shift U usbd_xfer_get_isochronous_start_frame U usbd_xfer_set_frame_len 0000000000003790 t xhci_activate_transfer 0000000000000ff2 r xhci_bosd 0000000000000f30 r xhci_bus_methods 000000000000100d r xhci_confd 0000000000007210 t xhci_configure_device 0000000000003d80 t xhci_configure_endpoint 0000000000002300 t xhci_configure_msg 0000000000000fe0 r xhci_devd 0000000000003930 t xhci_device_done 0000000000006660 t xhci_device_generic_close 0000000000006670 t xhci_device_generic_enter 0000000000001058 r xhci_device_generic_methods 0000000000006650 t xhci_device_generic_open 0000000000006ad0 t xhci_device_generic_start 0000000000005a30 t xhci_device_init 0000000000000bd0 r xhci_device_methods 0000000000005430 t xhci_device_resume 0000000000005e40 t xhci_device_state_change 0000000000005360 t xhci_device_suspend 0000000000005d20 t xhci_device_uninit 0000000000004030 t xhci_do_command 0000000000001da0 t xhci_do_poll 00000000000056e0 t xhci_ep_clear_stall 0000000000005030 t xhci_ep_init 0000000000005810 t xhci_ep_uninit 0000000000006f90 t xhci_free_device_ext 00000000000036d0 t xhci_generic_done 0000000000003840 t xhci_generic_done_sub 0000000000005350 t xhci_get_dma_delay 0000000000001e10 t xhci_halt_controller 000000000000102c r xhci_hubd 0000000000001fa0 t xhci_init 0000000000002ef0 t xhci_interrupt 0000000000003150 t xhci_interrupt_poll 0000000000000b20 t xhci_interrupt_poll 0000000000001cf0 t xhci_iterate_hw_softc 0000000000000000 t xhci_pci_attach 0000000000000d80 t xhci_pci_detach 0000000000000000 d xhci_pci_driver 0000000000000108 d xhci_pci_driver_mod 00000000000000f0 d xhci_pci_mod 00000000000008f0 t xhci_pci_port_route 0000000000000f30 t xhci_pci_probe 0000000000000bc0 t xhci_pci_take_controller 0000000000000060 d xhci_pcimodule_sys_init 0000000000001c00 t xhci_reset_controller 0000000000004450 t xhci_roothub_exec 00000000000061d0 t xhci_set_address 0000000000006600 t xhci_set_endpoint_mode 0000000000005680 t xhci_set_hw_power 0000000000005690 t xhci_set_hw_power_sleep 0000000000006b50 t xhci_setup_generic_chain_sub 0000000000001710 t xhci_start_controller 0000000000005df0 t xhci_start_dma_delay 0000000000006f80 t xhci_timeout 0000000000003a70 t xhci_transfer_insert 0000000000002eb0 t xhci_uninit 00000000000000dc d xhci_use_msi 00000000000000d8 d xhci_use_msix 0000000000001700 t xhci_use_polling 0000000000005190 t xhci_xfer_setup 0000000000005340 t xhci_xfer_unsetup 0000000000000328 d xhcictlquirk 0000000000000004 b xhcidcepquirk 0000000000000000 b xhcistreams

Dependencies

8. sound.ko

• FreeBSD PCM audio device infrastructure

• The sound drivers may create the following device nodes:

• 1. /dev/dsp%d: Audio device. The number represents the unit number of the device.

• 2. /dev/dsp: Alias of /dev/dsp${hw.snd.default_unit}. Available only if hw.snd.basename_clone is set.

• 3. /dev/sndstat: Current sound status, including all channels and drivers

• sndstat : nvlist-based PCM audio device enumeration interface. The ioctl interface provided by /dev/sndstat device allows callers to enumerate PCM audio devices available for use.

Binary Name :	sound.ko
Size :	233K
Source path :	/usr/src/sys/dev/sound
Binary path :	/usr/obj/usr/src/amd64.amd64/sys/modules/sound/sound/sound.ko
List of c files :	ac97.c ac97_if.c ac97_patch.c buffer.c channel.c channel_if.c dsp.c feeder.c feeder_chain.c feeder_eq.c feeder_format.c feeder_if.c feeder_matrix.c feeder_mixer.c feeder_rate.c feeder_volume.c midi.c mixer.c mixer_if.c mpu401.c mpu_if.c mpufoi_if.c sequencer.c sndstat.c sound.c synth_if.c unit.c vchan.c
NM symbol list :	See the full content of nm output 000000000001ebb0 t CHANNEL_SETSPEED U DELAY U Giant 0000000000018b80 t MIXER_SET 00000000000092b0 d M_AC97 0000000000009270 d M_AC97_init_sys_init 0000000000009290 d M_AC97_uninit_sys_uninit U M_DEVBUF 0000000000000300 d M_FEEDER 00000000000002c0 d M_FEEDER_init_sys_init 00000000000002e0 d M_FEEDER_uninit_sys_uninit 000000000000a130 D M_MIDI 000000000000a1a0 d M_MIDI_init_sys_init 000000000000a1c0 d M_MIDI_uninit_sys_uninit 0000000000009ad0 d M_MIXER 0000000000009a20 d M_MIXER_init_sys_init 0000000000009a40 d M_MIXER_uninit_sys_uninit U M_NVLIST U M_TEMP U __mtx_lock_flags U __mtx_unlock_flags 0000000000000020 r __set_modmetadata_set_sym__mod_metadata_md_midi 0000000000000018 r __set_modmetadata_set_sym__mod_metadata_md_midi_on_kernel 0000000000000008 r __set_modmetadata_set_sym__mod_metadata_md_sound 0000000000000000 r __set_modmetadata_set_sym__mod_metadata_md_sound_on_kernel 0000000000000028 r __set_modmetadata_set_sym__mod_metadata_midi_version 0000000000000010 r __set_modmetadata_set_sym__mod_metadata_sound_version 00000000000000d8 r __set_sysctl_set_sym_sysctl___hw_midi 00000000000000e8 r __set_sysctl_set_sym_sysctl___hw_midi_debug 00000000000000f0 r __set_sysctl_set_sym_sysctl___hw_midi_dumpraw 00000000000000f8 r __set_sysctl_set_sym_sysctl___hw_midi_instroff 0000000000000108 r __set_sysctl_set_sym_sysctl___hw_midi_seq 0000000000000110 r __set_sysctl_set_sym_sysctl___hw_midi_seq_debug 00000000000000e0 r __set_sysctl_set_sym_sysctl___hw_midi_stat 0000000000000100 r __set_sysctl_set_sym_sysctl___hw_midi_stat_verbose 00000000000000b8 r __set_sysctl_set_sym_sysctl___hw_snd 0000000000000098 r __set_sysctl_set_sym_sysctl___hw_snd_basename_clone 0000000000000090 r __set_sysctl_set_sym_sysctl___hw_snd_compat_linux_mmap 00000000000000b0 r __set_sysctl_set_sym_sysctl___hw_snd_default_auto 00000000000000c8 r __set_sysctl_set_sym_sysctl___hw_snd_default_unit 0000000000000038 r __set_sysctl_set_sym_sysctl___hw_snd_feeder_eq_exact_rate 0000000000000030 r __set_sysctl_set_sym_sysctl___hw_snd_feeder_eq_presets 0000000000000018 r __set_sysctl_set_sym_sysctl___hw_snd_feeder_rate_max 0000000000000010 r __set_sysctl_set_sym_sysctl___hw_snd_feeder_rate_min 0000000000000008 r __set_sysctl_set_sym_sysctl___hw_snd_feeder_rate_polyphase_max 0000000000000000 r __set_sysctl_set_sym_sysctl___hw_snd_feeder_rate_presets 0000000000000028 r __set_sysctl_set_sym_sysctl___hw_snd_feeder_rate_quality 0000000000000020 r __set_sysctl_set_sym_sysctl___hw_snd_feeder_rate_round 0000000000000050 r __set_sysctl_set_sym_sysctl___hw_snd_latency 0000000000000058 r __set_sysctl_set_sym_sysctl___hw_snd_latency_profile 00000000000000d0 r __set_sysctl_set_sym_sysctl___hw_snd_maxautovchans 0000000000000040 r __set_sysctl_set_sym_sysctl___hw_snd_report_soft_formats 0000000000000048 r __set_sysctl_set_sym_sysctl___hw_snd_report_soft_matrix 0000000000000088 r __set_sysctl_set_sym_sysctl___hw_snd_syncdelay 0000000000000060 r __set_sysctl_set_sym_sysctl___hw_snd_timeout 0000000000000080 r __set_sysctl_set_sym_sysctl___hw_snd_usefrags 00000000000000a8 r __set_sysctl_set_sym_sysctl___hw_snd_verbose 00000000000000c0 r __set_sysctl_set_sym_sysctl___hw_snd_version 0000000000000070 r __set_sysctl_set_sym_sysctl___hw_snd_vpc_0db 0000000000000068 r __set_sysctl_set_sym_sysctl___hw_snd_vpc_autoreset 00000000000000a0 r __set_sysctl_set_sym_sysctl___hw_snd_vpc_mixer_bypass 0000000000000078 r __set_sysctl_set_sym_sysctl___hw_snd_vpc_reset 0000000000000040 d __set_sysinit_set_sym_M_AC97_init_sys_init 0000000000000000 d __set_sysinit_set_sym_M_FEEDER_init_sys_init 0000000000000078 d __set_sysinit_set_sym_M_MIDI_init_sys_init 0000000000000058 d __set_sysinit_set_sym_M_MIXER_init_sys_init 0000000000000050 d __set_sysinit_set_sym_dsp_sysinit_sys_init 0000000000000020 d __set_sysinit_set_sym_feeder_eq_sys_init 0000000000000028 d __set_sysinit_set_sym_feeder_format_sys_init 0000000000000030 d __set_sysinit_set_sym_feeder_matrix_sys_init 0000000000000038 d __set_sysinit_set_sym_feeder_mixer_sys_init 0000000000000010 d __set_sysinit_set_sym_feeder_rate_sys_init 0000000000000008 d __set_sysinit_set_sym_feeder_root_sys_init 0000000000000018 d __set_sysinit_set_sym_feeder_volume_sys_init 0000000000000080 d __set_sysinit_set_sym_midimodule_sys_init 0000000000000060 d __set_sysinit_set_sym_mixer_sysinit_sys_init 0000000000000048 d __set_sysinit_set_sym_pcm_syncgroup_mtx_sysinit_sys_init 0000000000000068 d __set_sysinit_set_sym_sndstat_sysinit_sys_init 0000000000000070 d __set_sysinit_set_sym_soundmodule_sys_init 0000000000000010 d __set_sysuninit_set_sym_M_AC97_uninit_sys_uninit 0000000000000000 d __set_sysuninit_set_sym_M_FEEDER_uninit_sys_uninit 0000000000000040 d __set_sysuninit_set_sym_M_MIDI_uninit_sys_uninit 0000000000000028 d __set_sysuninit_set_sym_M_MIXER_uninit_sys_uninit 0000000000000020 d __set_sysuninit_set_sym_dsp_sysuninit_sys_uninit 0000000000000008 d __set_sysuninit_set_sym_feeder_root_sys_uninit 0000000000000030 d __set_sysuninit_set_sym_mixer_sysuninit_sys_uninit 0000000000000018 d __set_sysuninit_set_sym_pcm_syncgroup_mtx_sysuninit_sys_uninit 0000000000000038 d __set_sysuninit_set_sym_sndstat_sysuninit_sys_uninit U __stack_chk_fail U __stack_chk_guard w __start_set_modmetadata_set U __start_set_pcpu w __start_set_sysctl_set w __start_set_sysinit_set w __start_set_sysuninit_set w __stop_set_modmetadata_set U __stop_set_pcpu w __stop_set_sysctl_set w __stop_set_sysinit_set w __stop_set_sysuninit_set U _cv_timedwait_sbt U _cv_timedwait_sig_sbt U _cv_wait U _cv_wait_sig 000000000000a5d0 d _midi_depend_on_kernel 000000000000a6b0 d _midi_version 000000000000a580 d _mod_metadata_md_midi 000000000000a568 d _mod_metadata_md_midi_on_kernel 000000000000a060 d _mod_metadata_md_sound 000000000000a048 d _mod_metadata_md_sound_on_kernel 000000000000a5b8 d _mod_metadata_midi_version 000000000000a098 d _mod_metadata_sound_version U _mtx_destroy U _mtx_init U _mtx_trylock_flags_ U _sleep 000000000000a0c4 d _sound_depend_on_kernel 000000000000a0e8 d _sound_version U _sx_sunlock U _sx_xlock U _sx_xunlock 0000000000008dd0 T ac97_create 0000000000008f10 T ac97_destroy 0000000000008db0 T ac97_getcaps 0000000000008da0 T ac97_getextcaps 0000000000008d90 T ac97_getextmode 0000000000008f80 T ac97_getflags 0000000000008f90 T ac97_getmixerclass 0000000000008dc0 T ac97_getsubvendor 0000000000000000 D ac97_init_desc 0000000000000000 t ac97_noinit 00000000000089c0 T ac97_rdcd 0000000000000018 D ac97_read_desc 000000000000aa20 t ac97_reset 0000000000008ca0 T ac97_setextmode 0000000000008f70 T ac97_setflags 0000000000008ba0 T ac97_setrate 0000000000008b40 T ac97_wrcd 0000000000000030 D ac97_write_desc 0000000000004fc0 r ac97codecid 0000000000005aa0 r ac97enhancement 0000000000005ba0 r ac97extfeature 0000000000008fa0 t ac97mix_init 000000000000a360 t ac97mix_reinit 000000000000a5a0 t ac97mix_set 000000000000a7a0 t ac97mix_setrecsrc 000000000000a2e0 t ac97mix_uninit 0000000000009320 d ac97mixer_class 0000000000004f60 r ac97mixer_methods 0000000000005910 r ac97vendorid 000000000000ac10 T ad1886_patch 000000000000ac80 T ad1981b_patch 000000000000ac30 T ad198x_patch 0000000000006e30 r afmt_tab 000000000000ad30 T alc655_patch U alloc_unr U bootverbose U bus_dmamap_load U bus_read_ivar_desc U bus_setup_intr U bus_topo_lock U bus_topo_unlock U callout_init U callout_reset_sbt_on 0000000000000060 D channel_free_desc 0000000000000138 D channel_getcaps_desc 0000000000000198 D channel_getmatrix_desc 0000000000000168 D channel_getpeaks_desc 0000000000000120 D channel_getptr_desc 0000000000000180 D channel_getrates_desc 0000000000000048 D channel_init_desc 0000000000000010 t channel_nofree 0000000000000090 t channel_nogetmatrix 0000000000000070 t channel_nogetpeaks 0000000000000050 t channel_nogetptr 0000000000000080 t channel_nogetrates 0000000000000060 t channel_nonotify 0000000000000020 t channel_noreset 0000000000000030 t channel_noresetdone 0000000000000040 t channel_nosetfragments 00000000000000b0 t channel_nosetmatrix 0000000000000150 D channel_notify_desc 0000000000000078 D channel_reset_desc 0000000000000090 D channel_resetdone_desc 00000000000000d8 D channel_setblocksize_desc 00000000000000a8 D channel_setformat_desc 00000000000000f0 D channel_setfragments_desc 00000000000001b0 D channel_setmatrix_desc 00000000000000c0 D channel_setspeed_desc 0000000000000108 D channel_trigger_desc 000000000000d180 T chn_abort 0000000000000440 T chn_addfeeder 0000000000010d40 t chn_calclatency 0000000000007070 r chn_calclatency.pblkcnts 00000000000070d0 r chn_calclatency.pbufszs 0000000000007130 r chn_calclatency.rblkcnts 0000000000007190 r chn_calclatency.rbufszs 000000000000d1f0 t chn_dmaupdate 0000000000000610 T chn_findfeeder 000000000000d3b0 T chn_flush 000000000000ef60 T chn_getcaps 000000000000ff70 T chn_getformats 000000000000ec10 T chn_getmatrix 000000000000ebf0 T chn_getmute_matrix 000000000000fef0 T chn_getptr 0000000000010810 T chn_getrates 000000000000ea10 T chn_getvolume_matrix 000000000000dd90 T chn_init 000000000000c810 T chn_intr 000000000000c5f0 T chn_intr_locked 000000000000e420 T chn_kill 0000000000009440 D chn_latency 00000000000094b8 D chn_latency_profile 0000000000010010 T chn_notify 000000000000ede0 T chn_oss_getmask 000000000000ed20 T chn_oss_getorder 000000000000ed50 T chn_oss_setorder 000000000000d0a0 T chn_poll 000000000000c3c0 T chn_read 00000000000005a0 T chn_removefeeder 000000000000d890 T chn_reset 000000000000cb80 T chn_resetbuf 000000000000efb0 t chn_resizebuf 000000000000fad0 T chn_setblocksize 000000000000dc60 T chn_setformat 000000000000dd70 T chn_setlatency 000000000000ec30 T chn_setmatrix 000000000000eaf0 T chn_setmute_matrix 000000000000ea30 T chn_setmute_multi 000000000000dad0 T chn_setparam 000000000000dd00 T chn_setspeed 000000000000e8f0 T chn_setvolume_matrix 000000000000e6d0 T chn_setvolume_multi 000000000000e580 T chn_shutdown 000000000000c100 T chn_start 000000000000cbb0 T chn_sync 0000000000009814 d chn_syncdelay 0000000000010870 T chn_syncdestroy 000000000000faf0 T chn_syncstate 0000000000009810 d chn_timeout 000000000000c890 T chn_trigger 0000000000000040 b chn_usefrags 0000000000009818 d chn_vol_0db_pcm 000000000000981c d chn_vpc_autoreset 0000000000010a70 t chn_vpc_proc 000000000000e340 T chn_vpc_reset 000000000000e5a0 t chn_wakeup 000000000000bed0 T chn_write 000000000000aca0 D cmdtab_seqccmn 000000000000ac60 D cmdtab_seqcv 000000000000a7d0 D cmdtab_seqevent 000000000000a930 D cmdtab_seqioctl 000000000000abb0 D cmdtab_timer 000000000000acd0 T cmi9739_patch U copyin U copyout U cv_broadcastpri U cv_destroy U cv_init U delete_unrhdr U destroy_dev U destroy_dev_sched U dev_ref U devclass_create U devclass_get_maxunit U devclass_get_softc U devfs_foreach_cdevpriv U devfs_get_cdevpriv U devfs_set_cdevpriv U device_get_desc U device_get_name U device_get_nameunit U device_get_parent U device_get_softc U device_get_sysctl_ctx U device_get_sysctl_tree U device_get_unit U device_is_attached U device_printf U dnvlist_get_string 0000000000009a10 d dsp_basename_clone 00000000000077f0 r dsp_cdevs 0000000000009918 D dsp_cdevsw 0000000000016a60 t dsp_clone 0000000000015270 t dsp_close 0000000000014d40 T dsp_destroy_dev 0000000000000050 b dsp_ehtag 0000000000015660 t dsp_io_ops 0000000000011680 t dsp_ioctl 0000000000015be0 t dsp_ioctl_channel 0000000000014c90 T dsp_make_dev 00000000000149a0 t dsp_mmap 0000000000000048 b dsp_mmap_allow_prot_exec 00000000000149c0 t dsp_mmap_single 0000000000010f40 t dsp_open 0000000000014e00 T dsp_oss_audioinfo 0000000000015220 t dsp_oss_audioinfo_cb 0000000000016750 t dsp_oss_cookedmode 0000000000016990 t dsp_oss_getchannelmask 0000000000016840 t dsp_oss_getchnorder 0000000000016660 t dsp_oss_policy 00000000000168b0 t dsp_oss_setchnorder 0000000000016070 t dsp_oss_syncgroup 00000000000163d0 t dsp_oss_syncstart 0000000000014800 t dsp_poll 0000000000011620 t dsp_read 0000000000016a20 t dsp_sysinit 00000000000099d0 d dsp_sysinit_sys_init 0000000000016b50 t dsp_sysuninit 00000000000099f0 d dsp_sysuninit_sys_uninit 0000000000014d60 T dsp_unit2name 0000000000011650 t dsp_write 0000000000007e10 d eq_176400 0000000000008110 d eq_192000 0000000000007210 d eq_44100 0000000000007510 d eq_48000 0000000000007810 d eq_88200 0000000000007b10 d eq_96000 U eventhandler_deregister U eventhandler_find_list U eventhandler_register 0000000000005770 t feed_eq_biquad_S16LE 00000000000059f0 t feed_eq_biquad_S32LE 0000000000005490 t feed_eq_feed 0000000000005190 t feed_eq_free 0000000000005050 t feed_eq_init 0000000000004390 r feed_eq_preamp 0000000000004810 t feed_eq_scan_preamp_arg 00000000000051c0 t feed_eq_set 00000000000055f0 t feed_eq_setup 00000000000042e0 r feed_eq_tab 0000000000006150 t feed_format_feed 00000000000060f0 t feed_format_free 0000000000005f10 t feed_format_init 0000000000004630 r feed_format_ops 0000000000006120 t feed_format_set 00000000000075c0 t feed_matrix_S16LE 00000000000076d0 t feed_matrix_S32LE 00000000000073f0 t feed_matrix_feed 00000000000073c0 t feed_matrix_free 0000000000007220 t feed_matrix_init 00000000000066a0 t feed_matrix_setup 0000000000008180 t feed_mixer_S16BE 00000000000080d0 t feed_mixer_S16LE 00000000000082e0 t feed_mixer_S24BE 0000000000008250 t feed_mixer_S24LE 00000000000081f0 t feed_mixer_S32BE 0000000000008130 t feed_mixer_S32LE 0000000000008020 t feed_mixer_S8NE 0000000000008530 t feed_mixer_U16BE 00000000000083d0 t feed_mixer_U16LE 00000000000085c0 t feed_mixer_U24BE 0000000000008440 t feed_mixer_U24LE 0000000000008670 t feed_mixer_U32BE 00000000000084d0 t feed_mixer_U32LE 0000000000008380 t feed_mixer_U8NE 0000000000007960 t feed_mixer_feed 0000000000004e50 r feed_mixer_info_tab 00000000000077c0 t feed_mixer_init 0000000000007930 t feed_mixer_set 0000000000000c00 t feed_root 0000000000003100 t feed_volume_S16LE 0000000000003210 t feed_volume_S32LE 0000000000002ea0 t feed_volume_feed 0000000000002e00 t feed_volume_free 0000000000004290 r feed_volume_info_tab 0000000000002cb0 t feed_volume_init 0000000000002e30 t feed_volume_set 0000000000003e00 t feeder_build_eq 0000000000004500 t feeder_build_format 00000000000041d0 t feeder_build_matrix 0000000000003d60 t feeder_build_mixer 0000000000003f90 t feeder_build_rate 0000000000004350 t feeder_build_volume 0000000000003330 T feeder_chain 00000000000070a8 d feeder_chain_formats_lean 0000000000008408 d feeder_eq_class 0000000000008450 d feeder_eq_desc 0000000000000010 b feeder_eq_exact_rate 0000000000004680 T feeder_eq_initsys 0000000000004340 r feeder_eq_methods 00000000000071c0 d feeder_eq_presets 00000000000071a0 d feeder_eq_sys_init 00000000000045b0 T feeder_eq_validrate 0000000000000228 D feeder_feed_desc 00000000000084a0 d feeder_format_class 00000000000084e0 d feeder_format_desc 00000000000047d0 r feeder_format_methods 0000000000005c70 T feeder_format_read_op 0000000000008480 d feeder_format_sys_init 0000000000005dc0 T feeder_format_write_op 00000000000001e0 D feeder_free_desc 0000000000000210 D feeder_get_desc 00000000000003d0 T feeder_getclass 00000000000001c8 D feeder_init_desc 0000000000008530 d feeder_matrix_class 0000000000006e50 T feeder_matrix_compare 00000000000068f0 T feeder_matrix_default_channel_map 0000000000006930 T feeder_matrix_default_format 00000000000068b0 T feeder_matrix_default_id 0000000000004c20 r feeder_matrix_default_ids 0000000000008570 d feeder_matrix_desc 0000000000006ad0 T feeder_matrix_format_id 0000000000006c80 T feeder_matrix_format_map 0000000000006e30 T feeder_matrix_id_map 00000000000085a0 d feeder_matrix_maps 0000000000004cd0 r feeder_matrix_methods 0000000000006ee0 T feeder_matrix_oss_get_channel_order 0000000000007040 T feeder_matrix_oss_set_channel_order 0000000000006670 T feeder_matrix_setup 0000000000008510 d feeder_matrix_sys_init 0000000000008f20 d feeder_mixer_class 0000000000008f60 d feeder_mixer_desc 0000000000004e10 r feeder_mixer_methods 0000000000008f00 d feeder_mixer_sys_init 00000000000000d0 t feeder_nofree 00000000000000f0 t feeder_noget 00000000000000c0 t feeder_noinit 00000000000000e0 t feeder_noset 0000000000000ba0 T feeder_printchain 00000000000006e8 d feeder_rate_class 0000000000000730 d feeder_rate_desc 00000000000003f4 D feeder_rate_max 0000000000004140 r feeder_rate_methods 00000000000003f0 D feeder_rate_min 00000000000006e4 d feeder_rate_polyphase_max 00000000000006c0 d feeder_rate_presets 00000000000003fc D feeder_rate_quality 00000000000003f8 D feeder_rate_round 00000000000006a0 d feeder_rate_sys_init 0000000000000110 T feeder_register 0000000000000000 b feeder_register.feedercnt 00000000000003b0 d feeder_root_class 00000000000040e0 r feeder_root_methods 0000000000000370 d feeder_root_sys_init 0000000000000390 d feeder_root_sys_uninit 00000000000001f8 D feeder_set_desc 0000000000000d90 t feeder_unregisterall 0000000000002be0 T feeder_volume_apply_matrix 0000000000007040 d feeder_volume_class 0000000000007080 d feeder_volume_desc 0000000000004240 r feeder_volume_methods 0000000000007020 d feeder_volume_sys_init 0000000000000008 b feedertab.0 U free U free_unr 0000000000015950 t getchns U getenv_int U getmicrotime U hz 0000000000004820 r intpcm_conv_tables 0000000000006370 t intpcm_read_S16BE 00000000000062f0 t intpcm_read_S16LE 00000000000063b0 t intpcm_read_S24BE 0000000000006310 t intpcm_read_S24LE 00000000000063f0 t intpcm_read_S32BE 0000000000006350 t intpcm_read_S32LE 00000000000062d0 t intpcm_read_S8NE 00000000000064e0 t intpcm_read_U16BE 0000000000006440 t intpcm_read_U16LE 0000000000006520 t intpcm_read_U24BE 0000000000006480 t intpcm_read_U24LE 0000000000006570 t intpcm_read_U32BE 00000000000064c0 t intpcm_read_U32LE 0000000000006410 t intpcm_read_U8NE 0000000000006610 t intpcm_read_alaw 0000000000006650 t intpcm_read_null 00000000000065d0 t intpcm_read_ulaw 0000000000006390 t intpcm_write_S16BE 0000000000006300 t intpcm_write_S16LE 00000000000063d0 t intpcm_write_S24BE 0000000000006330 t intpcm_write_S24LE 0000000000006400 t intpcm_write_S32BE 0000000000006360 t intpcm_write_S32LE 00000000000062e0 t intpcm_write_S8NE 0000000000006500 t intpcm_write_U16BE 0000000000006460 t intpcm_write_U16LE 0000000000006550 t intpcm_write_U24BE 00000000000064a0 t intpcm_write_U24LE 00000000000065a0 t intpcm_write_U32BE 00000000000064d0 t intpcm_write_U32LE 0000000000006430 t intpcm_write_U8NE 0000000000006630 t intpcm_write_alaw 0000000000006660 t intpcm_write_null 00000000000065f0 t intpcm_write_ulaw U kern_psignal U kobj_create U kobj_delete U kobj_error_method U kobj_init U kobj_lookup_method U kproc_create U kproc_exit U make_dev U make_dev_args_init_impl U make_dev_s U malloc U malloc_init U malloc_uninit U memcpy U memmove U memset 000000000000a4b0 d midi_cdevsw 0000000000021e90 t midi_close 0000000000023d60 T midi_cmdname 00000000000000b0 B midi_debug 0000000000020d20 t midi_destroy 00000000000000d8 B midi_devs 00000000000000e8 B midi_dumpraw 0000000000020e60 T midi_in 0000000000020720 T midi_init 00000000000000ec B midi_instroff 0000000000022720 t midi_ioctl 000000000000a5e0 d midi_mod 0000000000022800 t midi_modevent 0000000000021cc0 t midi_open 0000000000021070 T midi_out 0000000000022730 t midi_poll 0000000000022020 t midi_read 0000000000020c30 T midi_uninit 0000000000022380 t midi_write 0000000000021320 T midimapper_addseq 0000000000021390 T midimapper_close 00000000000213a0 T midimapper_fetch_synth 0000000000021330 T midimapper_open 000000000000a598 d midimodule_sys_init 000000000000a5f8 d midistat_cdevsw 0000000000022c20 t midistat_close 00000000000000f8 b midistat_dev 0000000000000100 b midistat_isopen 00000000000000b8 b midistat_lock 00000000000229c0 t midistat_open 0000000000022cb0 t midistat_read 0000000000000108 b midistat_sbuf 00000000000000f0 B midistat_verbose 0000000000021c20 t midisynth_alloc 0000000000021c70 t midisynth_bender 000000000000a1e0 D midisynth_class 00000000000215f0 t midisynth_close 0000000000021c30 t midisynth_controller 0000000000021bc0 t midisynth_killnote 0000000000007e00 r midisynth_methods 0000000000021430 t midisynth_open 0000000000021b30 t midisynth_setinstr 0000000000021b70 t midisynth_startnote 0000000000021780 t midisynth_writeraw 00000000000180d0 T mix_get 0000000000018240 T mix_get_dev 0000000000018940 T mix_get_locked 0000000000018230 T mix_get_type 0000000000017250 T mix_getchild 00000000000172a0 T mix_getdevinfo 0000000000017270 T mix_getdevs 0000000000017280 T mix_getmutedevs 0000000000017230 T mix_getparent 0000000000017290 T mix_getrecdevs 00000000000181d0 T mix_getrecsrc 0000000000018050 T mix_set 00000000000189a0 T mix_set_locked 0000000000016fe0 T mix_setdevs 0000000000016b90 T mix_setmutedevs 0000000000017180 T mix_setparentchild 0000000000017200 T mix_setrealdev 0000000000017090 T mix_setrecdevs 0000000000018160 T mix_setrecsrc 0000000000018040 T mixer_busy 0000000000009c38 d mixer_bypass 0000000000009b40 d mixer_cdevsw 0000000000019410 t mixer_clone 0000000000018e80 t mixer_close 0000000000000058 B mixer_count 0000000000017320 T mixer_create 00000000000172b0 T mixer_delete 0000000000000060 b mixer_ehtag 0000000000018920 T mixer_get_lock 0000000000017b10 T mixer_hwvol_init 0000000000017df0 T mixer_hwvol_mute 0000000000017d60 T mixer_hwvol_mute_locked 0000000000017f50 T mixer_hwvol_step 0000000000017ec0 T mixer_hwvol_step_locked 00000000000174e0 T mixer_init 0000000000000240 D mixer_init_desc 0000000000018f30 t mixer_ioctl 0000000000018250 T mixer_ioctl_cmd 0000000000000100 t mixer_noreinit 0000000000017340 t mixer_obj_create 0000000000018de0 t mixer_open 00000000000186f0 T mixer_oss_mixerinfo 0000000000017a30 T mixer_reinit 0000000000000258 D mixer_reinit_desc 0000000000016c10 t mixer_set 0000000000000288 D mixer_set_desc 0000000000018bf0 t mixer_set_eq 00000000000189c0 t mixer_set_softpcmvol 00000000000177c0 t mixer_setrecsrc 00000000000002a0 D mixer_setrecsrc_desc 00000000000193d0 t mixer_sysinit 0000000000009bf8 d mixer_sysinit_sys_init 0000000000019490 t mixer_sysuninit 0000000000009c18 d mixer_sysuninit_sys_uninit 0000000000017900 T mixer_uninit 0000000000000270 D mixer_uninit_desc U module_register_init 000000000000a6b8 D mpu401_class 0000000000022da0 T mpu401_init 0000000000022ee0 t mpu401_intr 00000000000232c0 t mpu401_mcallback 0000000000023320 t mpu401_mcallbackp 0000000000023380 t mpu401_mdescr 0000000000007ea0 r mpu401_methods 00000000000231b0 t mpu401_minit 00000000000232a0 t mpu401_minqsize 00000000000232b0 t mpu401_moutqsize 0000000000023390 t mpu401_mprovider 0000000000023250 t mpu401_muninit 00000000000233a0 t mpu401_timeout 0000000000023130 T mpu401_uninit 0000000000008fe8 D mpu_callback_desc 0000000000008fd0 D mpu_callbackp_desc 0000000000009018 D mpu_descr_desc 0000000000008fb8 D mpu_init_desc 0000000000008f88 D mpu_inqsize_desc 0000000000008fa0 D mpu_outqsize_desc 0000000000009000 D mpu_provider_desc 0000000000009030 D mpu_uninit_desc 0000000000009048 D mpufoi_read_desc 0000000000009078 D mpufoi_uninit_desc 0000000000009060 D mpufoi_write_desc 0000000000024360 t mseq_close 0000000000024d50 t mseq_ioctl 0000000000023ff0 t mseq_open 0000000000025660 t mseq_poll 00000000000244e0 t mseq_read 00000000000247b0 t mseq_write U mtx_sysinit U new_unrhdr 0000000000008800 T noaftertouch 00000000000089a0 T noalloc 00000000000088e0 T noallocvoice 0000000000008880 T nobender 0000000000008960 T noclose 0000000000008840 T nocontroller 00000000000087e0 T nohwcontrol 0000000000008980 T noinsync 0000000000008740 T nokillnote 0000000000008760 T noopen 0000000000008820 T nopanning 0000000000008780 T noquery 0000000000008920 T noreset 00000000000088c0 T nosendsysex 00000000000087c0 T nosetinstr 00000000000088a0 T nosetupvoice 0000000000008940 T noshortname 00000000000087a0 T nostartnote 0000000000008860 T novolumemethod 0000000000008900 T nowriteraw 0000000000000170 b nseq U nvlist_add_bool U nvlist_add_number U nvlist_add_nvlist U nvlist_add_string U nvlist_add_stringf U nvlist_append_nvlist_array U nvlist_clone U nvlist_create U nvlist_destroy U nvlist_error U nvlist_exists_number U nvlist_exists_nvlist U nvlist_exists_nvlist_array U nvlist_exists_string U nvlist_get_number U nvlist_get_nvlist U nvlist_get_nvlist_array U nvlist_get_string U nvlist_move_nvlist U nvlist_pack U nvlist_set_error U nvlist_unpack 0000000000004ca0 r oss_to_snd_chn U panic U pause_sbt 000000000001cc40 T pcm_addchan 000000000001caf0 T pcm_chn_add 000000000001c710 T pcm_chn_create 000000000001ca90 T pcm_chn_destroy 000000000001cba0 T pcm_chn_remove 000000000001c3a0 T pcm_chnalloc 000000000001c700 T pcm_chnref 000000000001c6a0 T pcm_chnrelease 00000000000000a0 B pcm_devclass 000000000001d160 T pcm_getbuffersize 000000000001d150 T pcm_getdevinfo 000000000001d120 T pcm_getflags 00000000000205f0 t pcm_getparentchannel 000000000001d240 T pcm_register 000000000001d130 T pcm_setflags 000000000001cd70 T pcm_setstatus 000000000001c020 T pcm_setvchans 0000000000009820 d pcm_syncgroup_args 00000000000097d0 d pcm_syncgroup_mtx_sysinit_sys_init 00000000000097f0 d pcm_syncgroup_mtx_sysuninit_sys_uninit 000000000001d5a0 T pcm_unregister 0000000000009dd0 D pcm_veto_load 0000000000000098 B pcmsg_unrhdr U pmap_kextract U printf 0000000000015b60 t relchns 0000000000009350 D report_soft_formats 00000000000093c8 D report_soft_matrix U resource_int_value U resource_string_value U sbuf_bcat U sbuf_clear U sbuf_data U sbuf_delete U sbuf_finish U sbuf_len U sbuf_new U sbuf_printf U seldrain U selrecord U selwakeup U selwakeuppri 000000000000ad30 d seq_cdevsw 0000000000025d10 t seq_convertold 0000000000023c40 T seq_copytoinput 0000000000000178 B seq_debug 0000000000023db0 t seq_eventthread 0000000000007fd0 r seq_methods 00000000000233c0 T seq_modevent 0000000000025ec0 t seq_processevent 00000000000257d0 t seq_reset 00000000000259d0 t seq_sync 0000000000000150 b seqinfo_mtx 0000000000000180 B seqs 000000000000ad00 D sequencer_class 000000000000d680 T snd_afmt2str 000000000001e490 T snd_c2unit 000000000000a0f0 d snd_c_shift 0000000000004c50 r snd_chn_to_oss 000000000001e470 T snd_d2unit 000000000000a0b0 d snd_driver_version 0000000000000a30 T snd_fmtbest 00000000000006c0 T snd_fmtbestbit 0000000000000a20 T snd_fmtbestchannel 00000000000006d0 t snd_fmtbestfunc 0000000000000640 T snd_fmtscore 000000000000d3f0 T snd_fmtvalid 0000000000005c10 R snd_fxdiv_table 000000000001e3b0 T snd_max_c 000000000001e3a0 T snd_max_d 000000000001e380 T snd_max_u 0000000000009e48 D snd_maxautovchans 0000000000007ca0 r snd_mixerdefaults 0000000000007bd0 r snd_mixernames 000000000001e4b0 T snd_mkunit 000000000001bfa0 T snd_mtxassert 000000000001bf00 T snd_mtxcreate 000000000001bf70 T snd_mtxfree 0000000000000018 B snd_pcm_syncgroups 0000000000000020 B snd_pcm_syncgroups_mtx 000000000001bfb0 T snd_setup_intr 000000000000d440 T snd_str2afmt 000000000001e440 T snd_u2unit 000000000000a0ec d snd_u_shift 0000000000009dd4 D snd_unit 000000000001e420 T snd_unit2c 000000000001e400 T snd_unit2d 000000000001e3d0 T snd_unit2u 000000000000a010 d snd_unit_auto 000000000001e500 T snd_unit_init 00000000000000a8 b snd_unit_initialized 0000000000000068 B snd_verbose 000000000000bb20 T sndbuf_acquire 000000000000af50 T sndbuf_alloc 000000000000b5b0 T sndbuf_clear 000000000000b830 T sndbuf_clearshadow 000000000000adc0 T sndbuf_create 000000000000ae40 T sndbuf_destroy 000000000000bbb0 T sndbuf_dispose 000000000000bdb0 T sndbuf_dump 000000000000bc40 T sndbuf_feed 000000000000b6b0 T sndbuf_fillsilence 000000000000b710 T sndbuf_fillsilence_rl 000000000000ae70 T sndbuf_free 000000000000b900 T sndbuf_getalign 000000000000b990 T sndbuf_getallocsize 000000000000b910 T sndbuf_getblkcnt 000000000000b930 T sndbuf_getblksz 000000000000ba40 T sndbuf_getblocks 000000000000b950 T sndbuf_getbps 000000000000b6a0 T sndbuf_getbuf 000000000000af40 T sndbuf_getbufaddr 000000000000b960 T sndbuf_getbufofs 000000000000bea0 T sndbuf_getflags 000000000000b880 T sndbuf_getfmt 000000000000ba30 T sndbuf_getfree 000000000000b680 T sndbuf_getfreeptr 000000000000b9f0 T sndbuf_gethwptr 000000000000b980 T sndbuf_getmaxsize 000000000000ba70 T sndbuf_getprevblocks 000000000000bab0 T sndbuf_getprevtotal 000000000000ba10 T sndbuf_getready 000000000000ba20 T sndbuf_getreadyptr 000000000000b2c0 T sndbuf_getsel 000000000000b970 T sndbuf_getsize 000000000000b8e0 T sndbuf_getspd 000000000000baa0 T sndbuf_gettotal 000000000000b9d0 T sndbuf_getxrun 000000000000b3e0 T sndbuf_remalloc 000000000000b2d0 T sndbuf_reset 000000000000b080 T sndbuf_resize 000000000000b9a0 T sndbuf_runsz 000000000000b920 T sndbuf_setblkcnt 000000000000b940 T sndbuf_setblksz 000000000000beb0 T sndbuf_setflags 000000000000b890 T sndbuf_setfmt 000000000000ba00 T sndbuf_sethwptr 000000000000b010 t sndbuf_setmap 000000000000b9b0 T sndbuf_setrun 000000000000b8f0 T sndbuf_setspd 000000000000b290 T sndbuf_setup 000000000000b9e0 T sndbuf_setxrun 000000000000b780 T sndbuf_softreset 000000000000bac0 T sndbuf_updateprevtotal 000000000000bad0 T sndbuf_xbytes 000000000000b650 T sndbuf_zerodata 0000000000009d00 d sndstat_cdevsw 000000000001bb50 t sndstat_close 0000000000000090 b sndstat_dev 0000000000009cb0 d sndstat_devlist 000000000001be60 t sndstat_diinfo_is_sane 0000000000009db8 d sndstat_filelist 000000000001bce0 t sndstat_get_caps 000000000001a7c0 t sndstat_ioctl 0000000000000070 b sndstat_lock 0000000000019770 t sndstat_open 0000000000019880 t sndstat_read 00000000000194d0 T sndstat_register 000000000001bc20 t sndstat_remove_all_userdevs 0000000000019720 t sndstat_sysinit 0000000000009cc0 d sndstat_sysinit_sys_init 000000000001bed0 t sndstat_sysuninit 0000000000009ce0 d sndstat_sysuninit_sys_uninit 0000000000019630 T sndstat_unregister 000000000001a370 t sndstat_write U snprintf 000000000000a0d0 d sound_mod 000000000001e300 t sound_modevent 000000000001dd20 T sound_oss_card_info 000000000001daa0 T sound_oss_sysinfo 000000000000a03f d sound_oss_sysinfo.si_license 000000000000a020 d sound_oss_sysinfo.si_product 000000000000a037 d sound_oss_sysinfo.si_version 000000000000a078 d soundmodule_sys_init U sprintf U sscanf U strcasecmp U strchr U strcmp U strdup U strlcat U strlcpy U strlen U strncmp U strndup U strrchr U strsep U strstr U sx_destroy U sx_init_flags 00000000000090f0 D synth_aftertouch_desc 0000000000009258 D synth_alloc_desc 0000000000009198 D synth_allocvoice_desc 0000000000009150 D synth_bender_desc 0000000000009210 D synth_close_desc 0000000000009120 D synth_controller_desc 00000000000090d8 D synth_hwcontrol_desc 0000000000009240 D synth_insync_desc 0000000000009090 D synth_killnote_desc 00000000000091f8 D synth_open_desc 0000000000009108 D synth_panning_desc 0000000000009228 D synth_query_desc 00000000000091c8 D synth_reset_desc 0000000000009180 D synth_sendsysex_desc 00000000000090c0 D synth_setinstr_desc 0000000000009168 D synth_setupvoice_desc 00000000000091e0 D synth_shortname_desc 00000000000090a8 D synth_startnote_desc 0000000000009138 D synth_volumemethod_desc 00000000000091b0 D synth_writeraw_desc U sysctl___hw 000000000000a210 D sysctl___hw_midi 000000000000a2f0 d sysctl___hw_midi_debug 000000000000a360 d sysctl___hw_midi_dumpraw 000000000000a3d0 d sysctl___hw_midi_instroff 000000000000a6f0 D sysctl___hw_midi_seq 000000000000a760 d sysctl___hw_midi_seq_debug 000000000000a280 d sysctl___hw_midi_stat 000000000000a440 d sysctl___hw_midi_stat_verbose 0000000000009e50 D sysctl___hw_snd 00000000000098a8 d sysctl___hw_snd_basename_clone 0000000000009838 d sysctl___hw_snd_compat_linux_mmap 0000000000009dd8 d sysctl___hw_snd_default_auto 0000000000009f30 d sysctl___hw_snd_default_unit 0000000000007130 d sysctl___hw_snd_feeder_eq_exact_rate 00000000000070c0 d sysctl___hw_snd_feeder_eq_presets 0000000000000550 d sysctl___hw_snd_feeder_rate_max 00000000000004e0 d sysctl___hw_snd_feeder_rate_min 0000000000000470 d sysctl___hw_snd_feeder_rate_polyphase_max 0000000000000400 d sysctl___hw_snd_feeder_rate_presets 0000000000000630 d sysctl___hw_snd_feeder_rate_quality 00000000000005c0 d sysctl___hw_snd_feeder_rate_round 0000000000009448 d sysctl___hw_snd_latency 00000000000094c0 d sysctl___hw_snd_latency_profile 0000000000009fa0 d sysctl___hw_snd_maxautovchans 0000000000009358 d sysctl___hw_snd_report_soft_formats 00000000000093d0 d sysctl___hw_snd_report_soft_matrix 0000000000009760 d sysctl___hw_snd_syncdelay 0000000000009530 d sysctl___hw_snd_timeout 00000000000096f0 d sysctl___hw_snd_usefrags 0000000000009c40 d sysctl___hw_snd_verbose 0000000000009ec0 d sysctl___hw_snd_version 0000000000009610 d sysctl___hw_snd_vpc_0db 00000000000095a0 d sysctl___hw_snd_vpc_autoreset 0000000000009a60 d sysctl___hw_snd_vpc_mixer_bypass 0000000000009680 d sysctl___hw_snd_vpc_reset U sysctl_add_oid U sysctl_ctx_free U sysctl_ctx_init 000000000001e120 t sysctl_dev_pcm_bitperfect 0000000000004a20 t sysctl_dev_pcm_eq 0000000000004d20 t sysctl_dev_pcm_eq_preamp 000000000001fc60 t sysctl_dev_pcm_vchanformat 000000000001f270 t sysctl_dev_pcm_vchanmode 000000000001f730 t sysctl_dev_pcm_vchanrate 000000000001f020 t sysctl_dev_pcm_vchans U sysctl_handle_int U sysctl_handle_string 000000000000aad0 t sysctl_hw_snd_ac97_eapd 000000000001de70 t sysctl_hw_snd_default_unit 0000000000000e30 t sysctl_hw_snd_feeder_rate_max 0000000000000dd0 t sysctl_hw_snd_feeder_rate_min 0000000000000f10 t sysctl_hw_snd_feeder_rate_quality 0000000000000e90 t sysctl_hw_snd_feeder_rate_round 0000000000017bf0 t sysctl_hw_snd_hwvol_mixer 0000000000010920 t sysctl_hw_snd_latency 0000000000010970 t sysctl_hw_snd_latency_profile 000000000001def0 t sysctl_hw_snd_maxautovchans 00000000000109c0 t sysctl_hw_snd_timeout 0000000000010a10 t sysctl_hw_snd_vpc_0db 0000000000010cf0 t sysctl_hw_snd_vpc_reset 00000000000196d0 t sysctl_hw_sndverbose U tick_sbt 00000000000267c0 t timer_wait U timevaladd U timevalsub U uiomove 000000000000a0f8 d vchan_class 000000000001e600 T vchan_create 000000000001ec20 T vchan_destroy 00000000000202e0 t vchan_free 0000000000020540 t vchan_getcaps 00000000000205e0 t vchan_getmatrix 00000000000201b0 t vchan_init 000000000001edd0 T vchan_initsys 0000000000007d80 r vchan_methods 0000000000020300 t vchan_setformat 0000000000020320 t vchan_setspeed 000000000001ed80 T vchan_sync 0000000000020330 t vchan_trigger U vm_pager_allocate U wakeup 0000000000002a40 t z_coeff_interpolate 0000000000000760 d z_coeff_q2 0000000000000ba0 d z_coeff_q3 0000000000001de0 d z_coeff_q4 00000000000041a0 r z_coeff_tab 0000000000000990 d z_dcoeff_q2 00000000000014d0 d z_dcoeff_q3 0000000000004710 d z_dcoeff_q4 00000000000020d0 t z_feed_linear_S16LE 0000000000002580 t z_feed_linear_S32LE 0000000000002190 t z_feed_sinc_S16LE 0000000000002650 t z_feed_sinc_S32LE 00000000000023e0 t z_feed_sinc_polyphase_S16LE 0000000000002890 t z_feed_sinc_polyphase_S32LE 0000000000002010 t z_feed_zoh 0000000000001410 t z_resampler_feed 00000000000012b0 t z_resampler_free 00000000000013e0 t z_resampler_get 0000000000001150 t z_resampler_init 0000000000001310 t z_resampler_set 00000000000017a0 t z_resampler_setup 00000000000041f0 r z_resampler_tab

Dependencies

9. snd_hda.ko

• Intel High Definition Audio bridge device driver

Binary Name :	snd_hda.ko
Size :	145K
Source path :	/usr/src/sys/dev/sound/pci/hda
Binary path :	/usr/obj/usr/src/amd64.amd64/sys/modules/sound/driver/hda/snd_hda.ko
List of c files :	hdaa.c hdaa_patches.c hdac.c hdac_if.c hdac_if.c hdacc.c
NM symbol list :	See the full content of nm output 0000000000000310 d .compoundliteral 0000000000000a40 d .compoundliteral.102 0000000000000aa0 d .compoundliteral.103 0000000000000aa8 d .compoundliteral.106 0000000000000ad8 d .compoundliteral.107 0000000000000c10 d .compoundliteral.108 0000000000000c28 d .compoundliteral.112 0000000000000c78 d .compoundliteral.113 0000000000000ca8 d .compoundliteral.114 0000000000000cb8 d .compoundliteral.115 0000000000000cf8 d .compoundliteral.116 0000000000000d28 d .compoundliteral.117 0000000000000d30 d .compoundliteral.121 0000000000000de0 d .compoundliteral.122 0000000000000e10 d .compoundliteral.123 0000000000000e20 d .compoundliteral.124 0000000000000e40 d .compoundliteral.125 0000000000000e70 d .compoundliteral.126 0000000000000e80 d .compoundliteral.127 0000000000000ea0 d .compoundliteral.128 0000000000000ed0 d .compoundliteral.129 0000000000000f10 d .compoundliteral.130 0000000000000f40 d .compoundliteral.131 0000000000000f50 d .compoundliteral.135 0000000000000fb0 d .compoundliteral.136 0000000000000fe0 d .compoundliteral.137 0000000000000fe8 d .compoundliteral.138 0000000000001008 d .compoundliteral.139 0000000000001038 d .compoundliteral.140 0000000000001068 d .compoundliteral.141 0000000000001098 d .compoundliteral.142 00000000000010c8 d .compoundliteral.143 00000000000010d0 d .compoundliteral.144 00000000000010d8 d .compoundliteral.145 0000000000001108 d .compoundliteral.146 0000000000001150 d .compoundliteral.147 0000000000001158 d .compoundliteral.148 0000000000001160 d .compoundliteral.149 00000000000011a8 d .compoundliteral.150 00000000000011b0 d .compoundliteral.151 00000000000011bc d .compoundliteral.152 00000000000011d0 d .compoundliteral.153 0000000000001210 d .compoundliteral.154 0000000000001220 d .compoundliteral.155 0000000000001240 d .compoundliteral.156 0000000000001250 d .compoundliteral.160 0000000000001310 d .compoundliteral.161 0000000000001320 d .compoundliteral.163 00000000000013e0 d .compoundliteral.164 00000000000013e8 d .compoundliteral.167 0000000000001418 d .compoundliteral.168 0000000000001420 d .compoundliteral.170 0000000000001460 d .compoundliteral.171 0000000000001468 d .compoundliteral.172 00000000000014b8 d .compoundliteral.173 00000000000014c0 d .compoundliteral.175 0000000000001540 d .compoundliteral.176 0000000000001548 d .compoundliteral.178 0000000000001608 d .compoundliteral.179 0000000000000320 d .compoundliteral.18 0000000000001618 d .compoundliteral.183 00000000000016e8 d .compoundliteral.184 0000000000001700 d .compoundliteral.186 00000000000017d0 d .compoundliteral.187 0000000000000340 d .compoundliteral.19 00000000000017e0 d .compoundliteral.190 00000000000018b0 d .compoundliteral.191 00000000000018e8 d .compoundliteral.192 00000000000019b8 d .compoundliteral.193 00000000000019c0 d .compoundliteral.195 0000000000001a90 d .compoundliteral.196 0000000000001ab0 d .compoundliteral.197 0000000000001b80 d .compoundliteral.198 0000000000001d30 d .compoundliteral.199 0000000000001d38 d .compoundliteral.200 0000000000001d68 d .compoundliteral.201 0000000000001d70 d .compoundliteral.202 0000000000001d90 d .compoundliteral.203 0000000000000348 d .compoundliteral.21 0000000000000378 d .compoundliteral.22 00000000000003c0 d .compoundliteral.23 00000000000003d0 d .compoundliteral.25 00000000000003f0 d .compoundliteral.26 0000000000000410 d .compoundliteral.29 0000000000000440 d .compoundliteral.30 0000000000000488 d .compoundliteral.31 0000000000000490 d .compoundliteral.33 00000000000004b0 d .compoundliteral.34 00000000000004b8 d .compoundliteral.36 00000000000004d8 d .compoundliteral.37 00000000000004e0 d .compoundliteral.39 0000000000000500 d .compoundliteral.40 0000000000000508 d .compoundliteral.45 00000000000005c8 d .compoundliteral.46 0000000000000640 d .compoundliteral.47 0000000000000648 d .compoundliteral.51 0000000000000688 d .compoundliteral.52 0000000000000690 d .compoundliteral.54 00000000000006b0 d .compoundliteral.55 00000000000006b8 d .compoundliteral.57 00000000000006d8 d .compoundliteral.58 00000000000006e0 d .compoundliteral.60 0000000000000700 d .compoundliteral.61 0000000000000708 d .compoundliteral.63 0000000000000728 d .compoundliteral.64 00000000000007b8 d .compoundliteral.65 00000000000007c0 d .compoundliteral.66 00000000000007e0 d .compoundliteral.67 00000000000007e8 d .compoundliteral.69 0000000000000808 d .compoundliteral.70 0000000000000850 d .compoundliteral.71 0000000000000858 d .compoundliteral.72 0000000000000878 d .compoundliteral.73 0000000000000890 d .compoundliteral.76 00000000000008c0 d .compoundliteral.77 00000000000008c8 d .compoundliteral.78 00000000000008e8 d .compoundliteral.79 00000000000008f0 d .compoundliteral.81 0000000000000910 d .compoundliteral.82 0000000000000918 d .compoundliteral.84 0000000000000948 d .compoundliteral.85 0000000000000950 d .compoundliteral.87 0000000000000970 d .compoundliteral.88 0000000000000980 d .compoundliteral.90 00000000000009a0 d .compoundliteral.91 00000000000009b0 d .compoundliteral.92 00000000000009e0 d .compoundliteral.93 00000000000009f0 d .compoundliteral.94 0000000000000a10 d .compoundliteral.95 0000000000000a18 d .compoundliteral.97 0000000000000a38 d .compoundliteral.98 U DELAY 0000000000002f60 t HDAC_CODEC_COMMAND 00000000000001d0 r HDA_COLORS 0000000000000250 r HDA_CONNECTORS 0000000000000550 r HDA_CONNS 00000000000002d0 r HDA_DEVS 0000000000000570 r HDA_GPIO_ACTIONS 00000000000013c0 r HDA_HDMI_CODING_TYPES 0000000000000350 r HDA_LOCS 0000000000000000 d M_HDAA 0000000000000070 d M_HDAA_init_sys_init 0000000000000090 d M_HDAA_uninit_sys_uninit 0000000000001f20 d M_HDAC 00000000000021e0 d M_HDACC 0000000000002250 d M_HDACC_init_sys_init 0000000000002270 d M_HDACC_uninit_sys_uninit 0000000000001f90 d M_HDAC_init_sys_init 0000000000001fb0 d M_HDAC_uninit_sys_uninit U M_TEMP U __mtx_lock_sleep U __mtx_unlock_sleep 0000000000000048 r __set_modmetadata_set_sym__mod_metadata_md_snd_hda_hdac 0000000000000040 r __set_modmetadata_set_sym__mod_metadata_md_snd_hda_hdac_on_kernel 0000000000000008 r __set_modmetadata_set_sym__mod_metadata_md_snd_hda_hdacc 0000000000000000 r __set_modmetadata_set_sym__mod_metadata_md_snd_hda_hdacc_on_kernel 0000000000000020 r __set_modmetadata_set_sym__mod_metadata_md_snd_hda_on_sound 0000000000000038 r __set_modmetadata_set_sym__mod_metadata_md_snd_hda_pci 0000000000000030 r __set_modmetadata_set_sym__mod_metadata_md_snd_hda_pci_on_kernel 0000000000000018 r __set_modmetadata_set_sym__mod_metadata_md_snd_hda_pcm_hdaa 0000000000000010 r __set_modmetadata_set_sym__mod_metadata_md_snd_hda_pcm_hdaa_on_kernel 0000000000000028 r __set_modmetadata_set_sym__mod_metadata_snd_hda_version 0000000000000000 d __set_sysinit_set_sym_M_HDAA_init_sys_init 0000000000000028 d __set_sysinit_set_sym_M_HDACC_init_sys_init 0000000000000018 d __set_sysinit_set_sym_M_HDAC_init_sys_init 0000000000000008 d __set_sysinit_set_sym_snd_hda_hdaccmodule_sys_init 0000000000000030 d __set_sysinit_set_sym_snd_hda_hdacmodule_sys_init 0000000000000020 d __set_sysinit_set_sym_snd_hda_pcimodule_sys_init 0000000000000010 d __set_sysinit_set_sym_snd_hda_pcm_hdaamodule_sys_init 0000000000000000 d __set_sysuninit_set_sym_M_HDAA_uninit_sys_uninit 0000000000000010 d __set_sysuninit_set_sym_M_HDACC_uninit_sys_uninit 0000000000000008 d __set_sysuninit_set_sym_M_HDAC_uninit_sys_uninit U __stack_chk_fail U __stack_chk_guard w __start_set_modmetadata_set U __start_set_pcpu w __start_set_sysinit_set w __start_set_sysuninit_set w __stop_set_modmetadata_set U __stop_set_pcpu w __stop_set_sysinit_set w __stop_set_sysuninit_set U _callout_stop_safe 00000000000022a8 d _mod_metadata_md_snd_hda_hdac 0000000000002290 d _mod_metadata_md_snd_hda_hdac_on_kernel 00000000000000c8 d _mod_metadata_md_snd_hda_hdacc 00000000000000b0 d _mod_metadata_md_snd_hda_hdacc_on_kernel 0000000000000150 d _mod_metadata_md_snd_hda_on_sound 0000000000001fe8 d _mod_metadata_md_snd_hda_pci 0000000000001fd0 d _mod_metadata_md_snd_hda_pci_on_kernel 0000000000000118 d _mod_metadata_md_snd_hda_pcm_hdaa 0000000000000100 d _mod_metadata_md_snd_hda_pcm_hdaa_on_kernel 0000000000000168 d _mod_metadata_snd_hda_version 00000000000002f8 d _snd_hda_depend_on_sound 00000000000022e0 d _snd_hda_hdac_depend_on_kernel 0000000000000180 d _snd_hda_hdacc_depend_on_kernel 0000000000002020 d _snd_hda_pci_depend_on_kernel 0000000000000210 d _snd_hda_pcm_hdaa_depend_on_kernel 0000000000000304 d _snd_hda_version U bootverbose U bus_alloc_resource U bus_child_location_desc U bus_child_pnpinfo_desc U bus_dma_tag_create U bus_dma_tag_destroy U bus_dmamap_load U bus_generic_attach U bus_generic_resume U bus_generic_suspend U bus_get_dma_tag U bus_get_dma_tag_desc U bus_print_child_desc U bus_print_child_footer U bus_print_child_header U bus_probe_nomatch_desc U bus_read_ivar_desc U bus_release_resource U bus_setup_intr U bus_teardown_intr U bus_topo_lock U bus_topo_unlock U callout_init U callout_reset_sbt_on U channel_getcaps_desc U channel_getptr_desc U channel_init_desc 00000000000009a0 r channel_names U channel_setblocksize_desc U channel_setformat_desc U channel_setfragments_desc U channel_setspeed_desc U channel_trigger_desc U chn_intr U cold U config_intrhook_disestablish U config_intrhook_establish U device_add_child U device_attach_desc U device_delete_child U device_delete_children U device_detach_desc U device_get_children U device_get_desc U device_get_ivars U device_get_name U device_get_nameunit U device_get_parent U device_get_softc U device_get_sysctl_ctx U device_get_sysctl_tree U device_get_unit U device_is_attached U device_printf U device_probe_desc U device_resume_desc U device_set_descf U device_set_ivars U device_suspend_desc U driver_module_handler U free 0000000000001450 r hda_rate_tab 0000000000006a90 r hdaa_allowed_stripes.bits 0000000000000ca0 t hdaa_attach 0000000000000830 r hdaa_audio_assign_names.types 000000000000b270 t hdaa_audio_commit 000000000000d680 t hdaa_audio_ctl_amp_set 000000000000d760 t hdaa_audio_ctl_amp_set_internal 000000000000ccb0 t hdaa_audio_ctl_dest_amp 0000000000012af0 t hdaa_audio_ctl_dest_volume 0000000000013240 t hdaa_audio_ctl_dev_set 0000000000012800 t hdaa_audio_ctl_dev_volume 0000000000000298 d hdaa_audio_ctl_ossmixer_class 0000000000011ef0 t hdaa_audio_ctl_ossmixer_init 000000000000ad50 t hdaa_audio_ctl_ossmixer_mask2allname 0000000000001720 r hdaa_audio_ctl_ossmixer_methods 0000000000012220 t hdaa_audio_ctl_ossmixer_set 0000000000012470 t hdaa_audio_ctl_ossmixer_setrecsrc 0000000000013400 t hdaa_audio_ctl_recsel_comm 000000000000c840 t hdaa_audio_ctl_source_amp 0000000000012ed0 t hdaa_audio_ctl_source_volume 000000000000ade0 t hdaa_audio_disable_useless 0000000000001680 r hdaa_audio_setup.convmap 0000000000006ab0 r hdaa_audio_setup.hdmica 00000000000016a0 r hdaa_audio_setup.hdmich 000000000000c190 t hdaa_audio_trace_adc 000000000000bb80 t hdaa_audio_trace_as_in_mch 000000000000b880 t hdaa_audio_trace_as_out 000000000000be10 t hdaa_audio_trace_dac 000000000000c5a0 t hdaa_audio_trace_to_out 000000000000e320 t hdaa_autorecsrc_handler 0000000000000810 r hdaa_caps 00000000000115c0 t hdaa_chan_formula 00000000000002c8 d hdaa_channel_class 0000000000013f20 t hdaa_channel_getcaps 0000000000013de0 t hdaa_channel_getptr 0000000000013900 t hdaa_channel_init 0000000000001760 r hdaa_channel_methods 0000000000013b90 t hdaa_channel_setblocksize 0000000000013ac0 t hdaa_channel_setformat 0000000000013bc0 t hdaa_channel_setfragments 0000000000013b00 t hdaa_channel_setspeed 000000000000f4c0 t hdaa_channel_start 000000000000f260 t hdaa_channel_stop 0000000000013d10 t hdaa_channel_trigger 000000000000e560 t hdaa_channels_handler 0000000000002800 t hdaa_child_location 000000000000b720 t hdaa_config_fetch 0000000000003230 t hdaa_configure 00000000000020a0 t hdaa_detach 00000000000001d8 d hdaa_driver 000000000000ec40 t hdaa_dump_audio_formats 00000000000116f0 t hdaa_dump_ctls 0000000000011c10 t hdaa_dump_dst_nid 0000000000009790 t hdaa_dump_gpi 00000000000099b0 t hdaa_dump_gpio 0000000000009cd0 t hdaa_dump_gpo 00000000000030e0 t hdaa_dump_pin_configs 000000000000e900 t hdaa_eld_dump 000000000000dab0 t hdaa_eld_handler 0000000000000208 d hdaa_fmt 000000000000d1c0 t hdaa_gpio_commit 0000000000000a10 t hdaa_gpio_patch 000000000000d500 t hdaa_gpo_commit 000000000000dec0 t hdaa_hpredir_handler 000000000000dd50 t hdaa_jack_poll_callback 00000000000005b0 r hdaa_methods 0000000000013f30 t hdaa_patch 0000000000015120 t hdaa_patch_direct 0000000000010a50 t hdaa_pcm_attach 0000000000011590 t hdaa_pcm_detach 0000000000000268 d hdaa_pcm_driver 00000000000016e0 r hdaa_pcm_methods 00000000000106b0 t hdaa_pcm_probe 0000000000002b50 t hdaa_pindump 0000000000002fd0 t hdaa_powerup 000000000000d920 t hdaa_presence_handler 0000000000002680 t hdaa_print_child 0000000000000be0 t hdaa_probe 0000000000000730 r hdaa_quirks_tab 0000000000015600 t hdaa_read_coef 0000000000002380 t hdaa_resume 000000000000b4b0 t hdaa_sense_init 0000000000002930 t hdaa_stream_intr 0000000000002190 t hdaa_suspend 0000000000011ad0 t hdaa_sysctl_32bit 0000000000009d90 t hdaa_sysctl_caps 000000000000abe0 t hdaa_sysctl_config 0000000000008b40 t hdaa_sysctl_gpi_state 0000000000009070 t hdaa_sysctl_gpio_config 0000000000008d30 t hdaa_sysctl_gpio_state 0000000000009450 t hdaa_sysctl_gpo_config 0000000000009260 t hdaa_sysctl_gpo_state 00000000000089c0 t hdaa_sysctl_quirks 0000000000009640 t hdaa_sysctl_reconfig 000000000000ef30 t hdaa_unconfigure 0000000000002a50 t hdaa_unsol_intr 000000000000d0f0 t hdaa_widget_connection_select 0000000000000ba0 t hdaa_widget_get 0000000000000000 t hdaa_widget_pin_patch 0000000000015540 t hdaa_write_coef 0000000000015a00 t hdac_attach 0000000000018d20 t hdac_attach2 0000000000006a90 r hdac_bdata_rate.bbits 00000000000174c0 t hdac_child_location 00000000000174f0 t hdac_child_pnpinfo_method 00000000000176e0 t hdac_codec_command 00000000000020c0 d hdac_codec_command_desc 00000000000189b0 t hdac_corb_init 0000000000016c40 t hdac_detach 00000000000070a0 r hdac_devices 0000000000018530 t hdac_dma_alloc 0000000000019290 t hdac_dma_cb 0000000000002078 d hdac_driver 0000000000017450 t hdac_get_dma_tag 00000000000176d0 t hdac_get_mtx 00000000000020a8 d hdac_get_mtx_desc 00000000000192b0 t hdac_intr_handler 0000000000018ba0 t hdac_irq_alloc 00000000000191e0 t hdac_irq_free 0000000000006a70 r hdac_mdata_rate.mbits 0000000000006f50 r hdac_methods 0000000000007db0 r hdac_pcie_snoop 00000000000021c8 d hdac_pindump_desc 0000000000019df0 t hdac_poll_callback 0000000000019c50 t hdac_poll_reinit 0000000000017470 t hdac_print_child 00000000000156b0 t hdac_probe 0000000000006b20 r hdac_quirks 0000000000007dd0 r hdac_quirks_tab 0000000000017560 t hdac_read_ivar 0000000000018730 t hdac_reset 00000000000171e0 t hdac_resume 0000000000019530 t hdac_rirb_flush 0000000000018a90 t hdac_rirb_init 00000000000196a0 t hdac_send_command 0000000000017720 t hdac_stream_alloc 00000000000020d8 d hdac_stream_alloc_desc 0000000000017a20 t hdac_stream_free 00000000000020f0 d hdac_stream_free_desc 0000000000018270 t hdac_stream_getptr 0000000000002150 d hdac_stream_getptr_desc 0000000000002168 d hdac_stream_intr_desc 0000000000018080 t hdac_stream_reset 0000000000002138 d hdac_stream_reset_desc 0000000000017b70 t hdac_stream_start 0000000000002108 d hdac_stream_start_desc 0000000000017f00 t hdac_stream_stop 0000000000002120 d hdac_stream_stop_desc 00000000000170a0 t hdac_suspend 0000000000018340 t hdac_unsol_alloc 0000000000002180 d hdac_unsol_alloc_desc 0000000000018370 t hdac_unsol_free 0000000000002198 d hdac_unsol_free_desc 00000000000021b0 d hdac_unsol_intr_desc 0000000000018390 t hdac_unsolq_task 000000000001a210 t hdacc_attach 000000000001a690 t hdacc_child_location 000000000001a6c0 t hdacc_child_pnpinfo_method 000000000001aa20 t hdacc_codec_command 0000000000007f80 r hdacc_codecs 000000000001a5b0 t hdacc_detach 0000000000002338 d hdacc_driver 000000000001aa10 t hdacc_get_mtx 0000000000007e00 r hdacc_methods 000000000001afa0 t hdacc_pindump 000000000001a700 t hdacc_print_child 0000000000019f00 t hdacc_probe 000000000001a760 t hdacc_probe_nomatch 000000000001a970 t hdacc_read_ivar 000000000001a640 t hdacc_resume 000000000001aa80 t hdacc_stream_alloc 000000000001ab30 t hdacc_stream_free 000000000001ad10 t hdacc_stream_getptr 000000000001ad80 t hdacc_stream_intr 000000000001aca0 t hdacc_stream_reset 000000000001abb0 t hdacc_stream_start 000000000001ac30 t hdacc_stream_stop 000000000001a5f0 t hdacc_suspend 000000000001ae00 t hdacc_unsol_alloc 000000000001aea0 t hdacc_unsol_free 000000000001af20 t hdacc_unsol_intr U hz U kobj_error_method U kobj_lookup_method U lockstat_enabled U malloc U malloc_init U malloc_uninit 0000000000000a30 r matrixes U memcmp U memset U mix_getdevinfo U mix_getrecdevs U mix_set U mix_setdevs U mix_setparentchild U mix_setrealdev U mix_setrecdevs U mix_setrecsrc U mixer_init U mixer_init_desc U mixer_reinit U mixer_set_desc U mixer_setrecsrc_desc U module_register_init 0000000000000660 r ossnames U panic U pci_alloc_msi_desc U pci_enable_busmaster_desc U pci_msi_count_desc U pci_read_config_desc U pci_release_msi_desc U pci_write_config_desc U pcm_addchan U pcm_getbuffersize U pcm_getflags U pcm_register U pcm_setflags U pcm_setstatus U pcm_unregister 0000000000001dc0 d pin_patches_asus_w6f 0000000000001e90 d pin_patches_clevo_d900t_asus_m5200 0000000000000ee0 d pin_patches_dell_xps_jack 0000000000001e60 d pin_patches_lg_lw20 0000000000001ef0 d pin_patches_msi_ms034a 0000000000001e40 d pin_patches_uniwill_9075 U printf U realloc 0000000000006db0 r realtek_model_pin_patches U resource_int_value U resource_string_value U rman_get_bushandle U rman_get_bustag U sbuf_delete U sbuf_finish U sbuf_new_for_sysctl U sbuf_printf 0000000000002308 d snd_hda_hdac_driver_mod 00000000000022f0 d snd_hda_hdac_mod 00000000000001a8 d snd_hda_hdacc_driver_mod 0000000000000190 d snd_hda_hdacc_mod 00000000000000e0 d snd_hda_hdaccmodule_sys_init 00000000000022c0 d snd_hda_hdacmodule_sys_init 0000000000002048 d snd_hda_pci_driver_mod 0000000000002030 d snd_hda_pci_mod 0000000000002000 d snd_hda_pcimodule_sys_init 0000000000000238 d snd_hda_pcm_hdaa_driver_mod 0000000000000220 d snd_hda_pcm_hdaa_mod 0000000000000130 d snd_hda_pcm_hdaamodule_sys_init U snd_mtxassert U snd_mtxcreate U snd_mtxfree U snd_verbose U sndbuf_alloc U sndbuf_getalign U sndbuf_getblkcnt U sndbuf_getblksz U sndbuf_getbufaddr U sndbuf_getmaxsize U sndbuf_resize U snprintf U strcasecmp U strcmp U strlcat U strlcpy U strlen U strncmp U strsep U strtol U sysctl_add_oid U sysctl_handle_int U sysctl_handle_string 0000000000019810 t sysctl_hdac_pindump 00000000000199b0 t sysctl_hdac_polling U taskqueue_drain U taskqueue_enqueue U taskqueue_thread U tick_sbt

Dependencies

10. cuse.ko

• Userland character device driver

Binary Name :	cuse.ko
Size :	41K
Source path :	/usr/src/sys/fs/cuse
Binary path :	/usr/obj/usr/src/amd64.amd64/sys/modules/cuse/cuse.ko
List of c files :	cuse.c
NM symbol list :	See the full content of nm output 00000000000001a0 d M_CUSE 00000000000000f0 d M_CUSE_init_sys_init 0000000000000110 d M_CUSE_uninit_sys_uninit U __mtx_lock_sleep U __mtx_unlock_sleep 0000000000000018 r __set_modmetadata_set_sym__mod_metadata_cuse4bsd_version 0000000000000010 r __set_modmetadata_set_sym__mod_metadata_cuse_version 0000000000000008 r __set_modmetadata_set_sym__mod_metadata_md_cuse 0000000000000000 r __set_modmetadata_set_sym__mod_metadata_md_cuse_on_kernel 0000000000000000 r __set_sysctl_set_sym_sysctl___kern_features_cuse 0000000000000008 d __set_sysinit_set_sym_M_CUSE_init_sys_init 0000000000000010 d __set_sysinit_set_sym_cuse_kern_init_sys_init 0000000000000000 d __set_sysinit_set_sym_cusemodule_sys_init 0000000000000000 d __set_sysuninit_set_sym_M_CUSE_uninit_sys_uninit 0000000000000008 d __set_sysuninit_set_sym_cuse_kern_uninit_sys_uninit w __start_set_modmetadata_set U __start_set_pcpu w __start_set_sysctl_set w __start_set_sysinit_set w __start_set_sysuninit_set w __stop_set_modmetadata_set U __stop_set_pcpu w __stop_set_sysctl_set w __stop_set_sysinit_set w __stop_set_sysuninit_set 000000000000019c d _cuse4bsd_version 0000000000000170 d _cuse_depend_on_kernel 0000000000000198 d _cuse_version U _cv_wait U _cv_wait_sig 0000000000000068 d _mod_metadata_cuse4bsd_version 0000000000000050 d _mod_metadata_cuse_version 0000000000000018 d _mod_metadata_md_cuse 0000000000000000 d _mod_metadata_md_cuse_on_kernel U _mtx_destroy U _mtx_init U _sx_xlock_hard U _sx_xunlock_hard U copyin U copyout 0000000000000040 b cuse_alloc_unit 0000000000000240 b cuse_alloc_unit_id 00000000000027b0 t cuse_client_close 00000000000002c8 d cuse_client_devsw 00000000000038b0 t cuse_client_free 0000000000003130 t cuse_client_ioctl 0000000000003700 t cuse_client_kqfilter 0000000000003c60 t cuse_client_kqfilter_poll 0000000000003df0 t cuse_client_kqfilter_read_detach 0000000000003e80 t cuse_client_kqfilter_read_event 0000000000000380 d cuse_client_kqfilter_read_ops 0000000000003ea0 t cuse_client_kqfilter_write_detach 0000000000003f30 t cuse_client_kqfilter_write_event 00000000000003a8 d cuse_client_kqfilter_write_ops 0000000000003850 t cuse_client_mmap_single 0000000000002320 t cuse_client_open 0000000000003460 t cuse_client_poll 0000000000002a20 t cuse_client_read 0000000000003ad0 t cuse_client_receive_command_locked 0000000000002da0 t cuse_client_write 0000000000003f50 t cuse_common_mmap_single 0000000000000030 b cuse_dev 0000000000000010 b cuse_global_mtx 0000000000000020 t cuse_kern_init 0000000000000130 d cuse_kern_init_sys_init 0000000000004380 t cuse_kern_uninit 0000000000000150 d cuse_kern_uninit_sys_uninit 0000000000000180 d cuse_mod 0000000000000000 t cuse_modevent 0000000000004080 t cuse_proc2proc_copy 0000000000001c30 t cuse_server_alloc_memory 0000000000000230 t cuse_server_close 00000000000020c0 t cuse_server_data_copy_optimized_locked 0000000000000210 d cuse_server_devsw 0000000000001440 t cuse_server_do_close 00000000000013f0 t cuse_server_free 0000000000001ac0 t cuse_server_free_dev 0000000000001dd0 t cuse_server_free_memory 0000000000000000 b cuse_server_head 0000000000000280 t cuse_server_ioctl 0000000000001f40 t cuse_server_ioctl_copy_locked 0000000000001a50 t cuse_server_lock 00000000000013a0 t cuse_server_mmap_single 00000000000000a0 t cuse_server_open 0000000000001390 t cuse_server_poll 0000000000000260 t cuse_server_read 0000000000001a90 t cuse_server_unlock 00000000000015d0 t cuse_server_unref 0000000000000270 t cuse_server_write 0000000000001ee0 t cuse_str_filter 0000000000000030 d cusemodule_sys_init U cv_broadcastpri U cv_destroy U cv_init U cv_signal U destroy_dev U devfs_clear_cdevpriv U devfs_get_cdevpriv U devfs_set_cdevpriv U faultin U free U hz U knlist_add U knlist_cleardel U knlist_destroy U knlist_init_mtx U knlist_remove U knote U lockstat_enabled U make_dev U make_dev_credf U malloc U malloc_init U malloc_uninit U memcpy U memset U module_register_init U pause_sbt U printf U priv_check U proc_rwmem U seldrain U selrecord U selwakeup U sx_destroy U sx_init_flags U sysctl___kern_features 0000000000000080 d sysctl___kern_features_cuse U sysctl_handle_int U tick_sbt U uiomove U vm_object_deallocate U vm_object_reference U vm_pager_allocate U wakeup

Dependencies

Use case

1. Check if your FreeBSD laptop has an Intel Bluetooth chipset

test:~$ usbconfig
ugen0.1: <Intel XHCI root HUB> at usbus0, cfg=0 md=HOST spd=SUPER (5.0Gbps) pwr=SAVE (0mA)
ugen0.2: <Chicony HP Wide Vision HD Camera> at usbus0, cfg=0 md=HOST spd=HIGH (480Mbps) pwr=ON (500mA)
ugen0.3: <Wireless-AC 3168 Bluetooth Intel Corp.> at usbus0, cfg=0 md=HOST spd=FULL (12Mbps) pwr=ON (100mA)
ugen0.4: <ELAN Touchscreen> at usbus0, cfg=0 md=HOST spd=FULL (12Mbps) pwr=ON (100mA)

• From above output we know ‘Wireless-AC 3168 Bluetooth Intel Corp’ chip and ‘Intel XHCI root HUB’ is used

2. Install the Intel BT firmware binary, iwmbt-firmware

test:~$ pkg install iwmbt-firmware

3. After installing the firmware, reboot or restart ‘devd’ to enable it

test:~$ service devd restart

4. Install Virtual OSS which is required for Bluetooth audio to work on FreeBSD

test:~$ pkg install virtual_oss

5. Virtual OSS requires the user space character device driver (CUSE) to be loaded.

• Load it manually and enable loading for every boot

test:~$ kldload cuse

test:~$ sysrc kld_list+="cuse"

6. Start Bluetooth Stack

test:~$ service hcsecd onestart

• If this fails, do it again

test:~$ service bluetooth start ubt0

• If Bluetooth is started successfully, below logs should be seen in dmesg

test:~$ dmesg | grep ubt0
ubt0 on uhub0
ubt0: <vendor 0x8087 product 0x0aa7, class 224/1, rev 2.00/0.01, addr 3> on usbus0

• Output of ngctl

test:~$ ngctl list
There are 8 total nodes:
  Name: ubt0            Type: ubt             ID: 00000001   Num hooks: 1
  Name: btsock_l2c      Type: btsock_l2c      ID: 00000002   Num hooks: 1
  Name: ubt0hci         Type: hci             ID: 00000023   Num hooks: 3
  Name: btsock_l2c_raw  Type: btsock_l2c_raw  ID: 00000003   Num hooks: 1
  Name: btsock_hci_raw  Type: btsock_hci_raw  ID: 00000004   Num hooks: 1
  Name: btsock_sco      Type: btsock_sco      ID: 00000005   Num hooks: 0
  Name: ubt0l2cap       Type: l2cap           ID: 00000027   Num hooks: 3
  Name: ngctl3789       Type: socket          ID: 0000002d   Num hooks: 0

7. Find your Bluetooth headphones (put your headphones in pairing mode)

test:~$ hccontrol -n ubt0hci inquiry
Inquiry result, num_responses=1
Inquiry result #0
        BD_ADDR: f8:9e:94:ee:99:c3
        Page Scan Rep. Mode: 0x1
        Page Scan Period Mode: 00
        Page Scan Mode: 00
        Class: 2a:01:0c
        Clock offset: 0x333b
Inquiry complete. Status: No error [00]

8. Find out the name assigned to Bluetooth device to check if the scanned device is Bluetooth headphone

test:~$ hccontrol -n ubt0hci remote_name_request f8:9e:94:ee:99:c3
BD_ADDR: f8:9e:94:ee:99:c3
Name: OnePlus Buds

9. Edit ‘/etc/bluetooth/hcsecd.conf’ and add your Bluetooth device

• Headphones does not require a key or pin so I add nokey and 0000 as the pin

test:~$ vim /etc/bluetooth/hcsecd.conf

device {
    bdaddr  f8:9e:94:ee:99:c3;
    name    "OnePlus Buds";
    key     nokey;
    pin     "0000";
}

10. Edit ‘/etc/bluetooth/hosts’ to assign an alias to your Bluetooth device

• This step is optional, ‘/etc/bluetooth/hosts’ allows you to alias BD_ADDR addresses to names making it much easier to remember

test:~$ vim /etc/bluetooth/hosts

f8:9e:94:ee:99:c3 headphones

11. Create connection to your Bluetooth headphones (Make sure headphones are in pairing mode)

test:~$ hccontrol -n ubt0hci create_connection headphones

• Note:  Enable “write_authentication” on the HCI node, if you observe below error

• Error message:

test:~$ hccontrol -n ubt0hci create_connection headphones
BD_ADDR: headphones
Connection handle: 256
Encryption mode: Disabled [0]

• Resolution:

test:~$ hccontrol -n ubt0hci write_authentication_enable 1

test:~$ hccontrol -n ubt0hci create_connection headphones

12. Check if headphones are connected

test:~$ hccontrol -n ubt0hci read_connection_list
Remote BD_ADDR    Handle Type Mode Role Encrypt Pending Queue State
headphones           256  ACL    0 MAST    NONE       0     0 OPEN

13. Create a virtual sound device so you can use your bluetooth headphones as a sound sink

• Meaning of the below command:

• To expose virtual device to other apps, install entry in /dev/sndstat. (-T /dev/sndstat)

• Enabled automatic resampling to fix bad sound quality when playing audio with a different sample-rate than default. (-S)

• If the default volume is too high, set a negative output amplification. (-a o,-4)

• Sample rate of 44100 Hz is chosen, you can use 48000 Hz instead if that’s better for your hardware. (-r 44100)

• To use laptop’s internal mic simultaneously while using my headphones. ( -R /dev/dsp0). You can disable the recording device by setting “-R /dev/null” instead.

test:~$ virtual_oss -T /dev/sndstat -S -a o,-4 -C 2 -c 2 -r 44100 -b 16 -s 1024 -R /dev/dsp0 -P /dev/bluetooth/headphones -d dsp -t vdsp.ctl

• Now we should have another DSP device listed in /dev/sndstat

test:~$ cat /dev/sndstat
Installed devices:
pcm0: <Realtek ALC257 (Analog 2.0+HP/2.0)> (play/rec) default
pcm1: <Realtek ALC257 (Right Analog Mic)> (rec)
pcm2: <Intel Kaby Lake (HDMI/DP 8ch)> (play)
Installed devices from userspace:
dsp: <Virtual OSS> (play/rec)

• Above steps works great for programs that use OSS as sound backend. However, other backends need additional steps

14. To fix applications that use sndio as backend (e.g. Chromium), enable the sndiod service

test:~$  sysrc sndiod_enable=YES

test:~$ service sndiod start

15. To fix applications that use a pulseaudio as backend (e.g. Firefox and linux Brave)

• Method-1: Configure firefox to use OSS instead of pulseaudio

• Open up firefox and put about:config in the URL line

• Then add the following entry

• media.cubeb.backend: oss

• Method-2: Redirect all OSS output into pulseaudio. It adds latency to the audio but works

test:~$ pacat --record -d oss_output.dsp0.monitor

Driver Development

Custom build of driver modules

test:~$

Load custom built driver modules

test:~$

Init path

Device structure

• Abstract representation of a device

• Defined in /usr/src/stand/kshim/bsd_kernel.h

typedef struct device *device_t;

struct device {
        TAILQ_HEAD(device_list, device) dev_children;
        TAILQ_ENTRY(device) dev_link;

        struct device *dev_parent;
        const struct module_data *dev_module;
        void   *dev_sc;
        void   *dev_aux;
        driver_filter_t *dev_irq_filter;
        driver_intr_t *dev_irq_fn;
        void   *dev_irq_arg;

        uint16_t dev_unit;

        char    dev_nameunit[64];
        char    dev_desc[64];

        uint8_t dev_res_alloc:1;
        uint8_t dev_quiet:1;
        uint8_t dev_softc_set:1;
        uint8_t dev_softc_alloc:1;
        uint8_t dev_attached:1;
        uint8_t dev_fixed_class:1;
        uint8_t dev_unit_manual:1;
};

• The device object represents a piece of hardware attached to the system.

• Ex: expansion card, the bus which that card is plugged into, disk drives attached to the expansion card, …

• The system defines one device, - root_bus.

• All other devices are created dynamically during auto configuration.

• device_probe_and_attach()

  • initialise a device

  • This function is called during autoconfiguration to initialise the devices in the system.

  • For each device, the DEVICE_PROBE method of each suitable driver is called and if a probe succeeds, a description of the device is printed and the DEVICE_ATTACH method is called

• DEVICE_PROBE

  • probe for device existence

  • method should probe to see if the device is present.

• DEVICE_ATTACH

  • attach a device

  • Attach a device to the system after the DEVICE_PROBE() method has been called and has indicated that the device exists

Driver structure

• structure describing a device driver

• Defined in /usr/src/stand/kshim/bsd_kernel.h

typedef struct driver driver_t;

struct driver {
        const char * name;
        const struct device_method *methods;
        uint32_t size;
};

• Driver is registered with the system by the DRIVER_MODULE macro

• Each driver will implement one or more sets of methods called interfaces.

• Ex: methods from Device interface, methods from Bus interface

Communication

• ng_ubt(BT driver/host controller) –> usb.ko(USB client driver) –> xhci.ko(USB host controller) –> pci(client driver) –> pci host controller

Init Path

device_probe_and_attach()
        device_probe()
                pci_probe() // pci controller
                xhci_probe() // USB host controller
                uhub_probe() // hub connected to usb
                ubt_probe() // USB Bluetooth device
        device_attach()
                pci_attach() // pci controller
                xhci_attach() // USB host controller
                ubt_attach() // // USB Bluetooth device
                uhub_attach() // hub connected to usb
                        uhub_explore_sub()
                                usb_probe_and_attach()

Control path

test:~$

Data path

test:~$

Contexts

test:~$

Threads

test:~$

Timers

test:~$

Interrupts

test:~$

Data Structures

test:~$

FAQs

• 1. Which codec?

• 2. Which BT version?

• 3. Which Freebsd version?

• 4. Which BT profile is being used? HSP/HFP?

• 5. Are you using AVRCP?

• 6. Downloaded audio file is played? different audio file formats?

• 7. File play to listening — sw modules and HW modules involved(Including BT and Audio)

• 8. Are we using BLE here?

• 9. Frames exchanged for device pairing, unpair? can we confirm using prints Tx/Rx in application or driver?

• 10. How is Reliability achieved? similar to Ack mechanism in wifi is reliablity maintainted at Application level(VLC media player/Youtube) or at BT level?

• 11. The BT driver modules, are they native to FreeBSD or ported from Linux?

Reference links

• Networking Basics: WiFi and Bluetooth

• Configure Bluetooth Headphones on FreeBSD 13.1

• How to connect and use Bluetooth headphones on FreeBSD

• Port details
