Message queues raeder writer program with Epoll system call

  • In this program, you are going to learn

  • How to open a message queue ?

  • How to get/set message queue attributes ?

  • How to receive a message from a message queue?

  • How to send a message to a message queue?

Topics in this section,

Let us answer few basic questions in this socket

What does mq_open do in this context?

See Answer

mq_open is used to open or create a message queue. It creates a new message queue or opens an existing one identified by queue_name.

Why use O_CREAT | O_RDWR as flags?

See Answer

O_CREAT ensures the creation of the message queue if it does not exist, and O_RDWR grants read and write access to the message queue.

What is the significance of the 0666 permission parameter?

See Answer

It sets the permission bits for the message queue, allowing read and write access for all users.

Can mq_open open an existing queue?

See Answer

Yes, if the queue with the specified name already exists, mq_open will open that existing queue.

What happens if the queue with queue_name does not exist?

See Answer

If the queue does not exist, and O_CREAT is specified, mq_open will create a new queue with the given name.

How does mq_open handle errors during queue creation?

See Answer

mq_open returns -1 on failure. You can check errno for specific error details. Common issues include insufficient permissions or system resources.

Why pass NULL as the last parameter?

See Answer

The last parameter (struct mq_attr) is used for setting message queue attributes. Passing NULL indicates using default attributes.

Can multiple processes open the same message queue?

See Answer

Yes, multiple processes can open the same message queue by using the same queue_name.

What is the lifetime of the message queue created with mq_open?

See Answer

The message queue persists until it is explicitly closed using mq_close or until the system is shut down.

How do I unlink (delete) a message queue created with mq_open?

See Answer
You can use mq_unlink(queue_name) to unlink (delete) the message queue.
This does not close the queue but removes its reference in the file system.

What is the primary purpose of the epoll system call?

See Answer

To efficiently monitor multiple file descriptors for I/O events

What types of file descriptors can be monitored using epoll?

See Answer

sockets, files, timerfd, socketpair, message_queue, Namedpipes and shared_memory.

What data structure is used by epoll to store events?

See Answer

Hash table

How do you handle errors when using the epoll system call?

See Answer

Check the return value for -1 to detect errors, Use perror to print error messages.

How does epoll handle a set of file descriptors with different states (e.g., reading, writing, exception)?

See Answer
Create the epoll Instance:

Before monitoring file descriptors, the application creates an epoll instance using the epoll_create system call.

int epoll_fd = epoll_create1(0);
Register File Discriptors:

The application registers file descriptors with the epoll instance using the epoll_ctl system call. It specifies the file descriptor, the events it is interested in (EPOLLIN for readability, EPOLLOUT for writability, etc.), and a user-defined data associated with the file descriptor.

struct epoll_event event;
event.events = EPOLLIN | EPOLLOUT;  // Interested in readability and writability
event.data.fd = my_file_descriptor; // File descriptor to monitor

epoll_ctl(epoll_fd, EPOLL_CTL_ADD, my_file_descriptor, &event);
Wait for Events:

The application enters a loop where it calls epoll_wait to wait for events. This call blocks until one or more registered file descriptors become ready or until a timeout occurs.

#define MAX_EVENTS 10
struct epoll_event events[MAX_EVENTS];

int num_events = epoll_wait(epoll_fd, events, MAX_EVENTS, timeout_ms);
Modify or Remove File Descriptors:

The application can dynamically modify or remove file descriptors from the epoll set using the epoll_ctl system call. For example, to modify events for an existing file descriptor:

struct epoll_event new_event;
new_event.events = EPOLLOUT;  // Modify to be interested in writability

epoll_ctl(epoll_fd, EPOLL_CTL_MOD, my_file_descriptor, &new_event);

To remove a file descriptor from the epoll set:

epoll_ctl(epoll_fd, EPOLL_CTL_DEL, my_file_descriptor, NULL);

How does epoll Checking Ready File Descriptors?

See Answer

After epoll_wait returns, the application iterates through the returned events to identify which file descriptors are ready and for what types of events.

for (int i = 0; i < num_events; ++i) {
        if (events[i].events & EPOLLIN) {
                // File descriptor i is ready for reading
        }

        if (events[i].events & EPOLLOUT) {
                // File descriptor i is ready for writing
        }
        // Check other events if needed (e.g., EPOLLERR, EPOLLHUP)
}

What does it mean if epoll returns 0?

See Answer

No file descriptors are ready within the specified timeout.

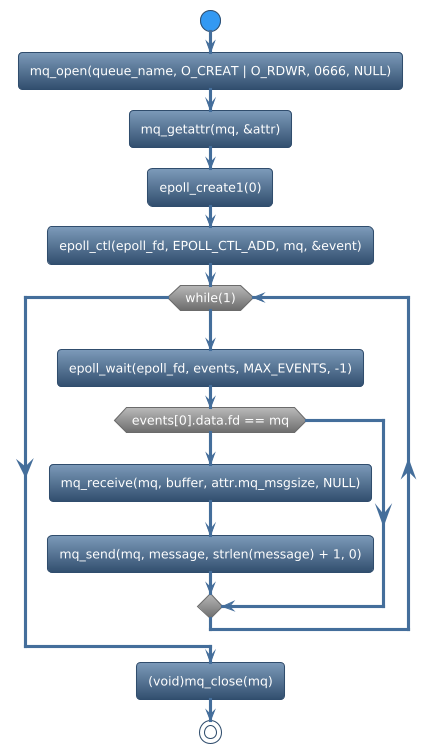

https://www.plantuml.com/plantuml/svg/JP7BRi8m44Nt-OhffhA5YyY6HIia46INGfMc3wcgB9DCm9Bp87P0hVhn7HjQuOKzziovzXtFhLEz6seJtRWzrWYsKmKQjOr28hgl3xBji6670GUKZQfHm4OkisIHmmz5sUej4p2PJgS2rYzfoXy2iqEddEjPVH1mwoD_ZbrhZ2nwL0vZDhawSeQTeweKa3njqbGkyrGkLYi1GGAFs3W2Jdjj45XOMCmvQ0li2ot_apefxQwq0cS5F2xUPVAQhFDd0NSn2UaAs3dvCVaSbygfSLN2R4RNSQ1MD1TPyCCxwh50VSJWQ3jK5VO2lB4nvMgxi_eR_plm3rbioa3KQAtQKOLrlQ5sNlOSHX1J-uX1OybOq_A865tv-M9scMVfg227xDZgafDiOLhhNqAOTMqNpQcO_l0N

  • There are many functions used in message queues. We can classify those functions based on functionalities.

    • mq_open

    • mq_getattr

    • epoll create1

    • epoll_ctl

    • epoll_wait

    • mq_receive

    • mq_send

    • mq_close

  • mq_open is used to open message queues. For example,

mq = mq_open(queue_name, O_CREAT | O_RDWR, 0666, NULL);

  • mq_getattr is used to get message queue attributes. For example,

mq_getattr(mq, &attr);

  • epoll_create1() creating an epoll instance using epoll_create1, The size parameter is an advisory hint for the kernel regarding the number of file descriptors expected to be monitored, For example,

epoll_fd = epoll_create1(0);

  • epoll_ctl() After creating an epoll instance, file descriptors are added to it using epoll_ctl, For example,

ret = epoll_ctl(epoll_fd, EPOLL_CTL_ADD, mq, &event);

  • epoll_wait() The application then enters a loop where it waits for events using epoll_wait, For example,

ready_fds = epoll_wait(epoll_fd, events, MAX_EVENTS, -1);

  • mq_receive is used to receive a message from a message queue. For example,

ret = mq_receive(mq, buffer, attr.mq_msgsize, NULL);;

  • mq_send is used to send a message to a message queue. For example,

ret = mq_send(mq, message, strlen(message) + 1, 0);

  • mq_close is used to close the opened message queues. For example,

mq_close(mq);

  • See the full program below,

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <mqueue.h>
#include <unistd.h>
#include <signal.h>
#include <sys/epoll.h>

#define MAX_EVENTS 2

mqd_t mq;
int epoll_fd;
const char* queue_name = "/my_queue";

static void sigint_handler(
int signo)
{
  int ret;

  (void)close(mq);
  (void)close(epoll_fd);
  ret = mq_close(mq);

  if (ret < 0) {
     perror("mq_close");
     exit(EXIT_SUCCESS);
  }

  ret = mq_unlink(
  queue_name);

  if (ret < 0) {
    perror("mq_unlink");
    exit(EXIT_SUCCESS);
  }
  sleep(2);
  printf("Caught sigINT!\n");
  exit(EXIT_SUCCESS);
}

void register_signal_handler(
int signum,
void (*handler)(int))
{
  if (signal(signum, handler) ==
  SIG_ERR) {
     printf("Cannot handle signal\n");
     exit(EXIT_FAILURE);
  }
}

int main(void)
{
  struct mq_attr attr;
  char* buffer;
  int ret;
  int ready_fds;
  struct epoll_event events[MAX_EVENTS];
  const char* message = "Hello, Writer!";

  register_signal_handler(SIGINT,
  sigint_handler);

  mq = mq_open(queue_name,
  O_CREAT | O_RDWR, 0666, NULL);

  if (mq == (mqd_t)-1) {
    perror("mq_open");
    return -1;
  }

  ret = mq_getattr(mq, &attr);

  if (ret < 0) {
    perror("mq_getattr");
    (void)close(mq);
    return -2;
  }

  if ((epoll_fd = epoll_create1(0)) == -1) {
	  perror("Epoll creation failed");
	  exit(EXIT_FAILURE);
  }

  struct epoll_event event;
  event.events = EPOLLIN;
  event.data.fd = mq;
  ret = epoll_ctl(epoll_fd,
  EPOLL_CTL_ADD, mq, &event);

  if (ret < 0) {
     perror("Epoll_ctl failed");
     exit(EXIT_FAILURE);
  }

  while(1) {
    ready_fds = epoll_wait(epoll_fd,
    events, MAX_EVENTS, -1);

    if (ready_fds == -1) {
	perror("Epoll wait failed");
	exit(EXIT_FAILURE);
    }

    if (events[0].data.fd == mq) {
      buffer = (char*)malloc(
      attr.mq_msgsize);

      if (buffer == NULL) {
        perror("malloc");
        (void)close(mq);
        return -4;
      }

      ret = mq_receive(mq,
      buffer, attr.mq_msgsize, NULL);

      if (ret < 0) {
        perror("mq_receive");
        (void)close(mq);
        return -5;
      }
      printf("Received message: %s\n",
      buffer);
      free(buffer);

      ret = mq_send(mq, message,
      strlen(message) + 1, 0);

      if (ret < 0) {
        perror("mq_send");
        (void)close(mq);
        return -6;
      } else {
        printf("message = %s\n",
        message);
      }
    }
  }

  (void)mq_close(mq);

  return 0;
}


 1$ gcc -o reader reader.c -lrt
 2
 3$ sudo ./reader
 4
 5Received message: Hello, reader!
 6message = Hello, Writer!
 7Received message: Hello, reader!
 8message = Hello, Writer!
 9Received message: Hello, Writer!
10message = Hello, Writer!
11Received message: Hello, Writer!
12message = Hello, Writer!
13Received message: Hello, Writer!
14message = Hello, Writer!
15Received message: Hello, Writer!
16message = Hello, Writer!
17Received message: Hello, Writer!
18message = Hello, Writer!
19Received message: Hello, Writer!
20message = Hello, Writer!
21Received message: Hello, reader!
22message = Hello, Writer!
23Received message: Hello, reader!
24message = Hello, Writer!
25^CCaught sigINT!

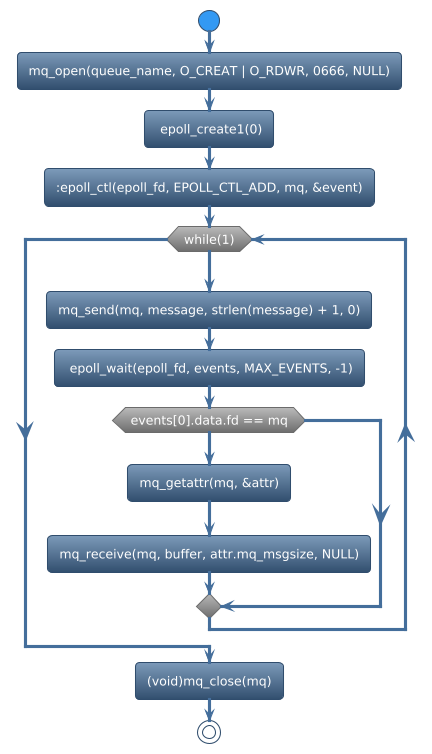

https://www.plantuml.com/plantuml/svg/JP5DRy8m38Rl_HNU1IKYG_J2WGa91BrrC7NTXpHDKMXTY9IqfKb1c_RZvvPk8eV4oUkFnyxIUTNurfhWpX_H8hXQPMZKFkY5O6vFiggnPASMMvIbiYXW9zT9j4hXXwnayvO8cCvcCm7RbpZc3y4SiAwCaLc3ocF8fjtRV7ZpXbsj8XSGFUtYMAxJMAus6m7s9624PomzHLoEsY2m_c0Xvw0Ti2zql6ToMEQiyxVed3eGbFED8SxXpc4C8N7Tu5oKzZUr-pfEmEFgNKQlqJPz5d0VahykW5t5Z-dd95TUJOeS5Wl2uq13AWSCeDMX7D0hxvkUPjHPbEDFQp13VSPUsxT5WOs0pcL2cdK7fx_nVsne7FLRLZoWtdJHxSCCrcaIZpDgd9qhdNEApKpbkgmKvdnL1qjofa_y1G==

  • There are many functions used in message queues. We can classify those functions based on functionalities.

    • mq_open

    • mq_send

    • epoll create1

    • epoll_ctl

    • epoll_wait

    • mq_getattr

    • mq_receive

    • mq_close

  • mq_open is used to open message queues. For example,

mq = mq_open(queue_name, O_CREAT | O_RDWR, 0666, NULL);

  • mq_send is used to send a message to a message queue. For example,

ret = mq_send(mq, message, strlen(message) + 1, 0);

  • epoll_create1() creating an epoll instance using epoll_create1, The size parameter is an advisory hint for the kernel regarding the number of file descriptors expected to be monitored, For example,

epoll_fd = epoll_create1(0);

  • epoll_ctl() After creating an epoll instance, file descriptors are added to it using epoll_ctl, For example,

ret = epoll_ctl(epoll_fd, EPOLL_CTL_ADD, mq, &event);

  • epoll_wait() The application then enters a loop where it waits for events using epoll_wait, For example,

ready_fds = epoll_wait(epoll_fd, events, MAX_EVENTS, -1);

  • mq_getattr is used to get message queue attributes. For example,

ret = mq_getattr(mq, &attr);

  • mq_receive is used to receive a message from a message queue. For example,

ret = mq_receive(mq, buffer, attr.mq_msgsize, NULL);;

  • mq_close is used to close the opened message queues. For example,

mq_close(mq);

  • See the full program below,

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <mqueue.h>
#include <unistd.h>
#include <signal.h>
#include <sys/epoll.h>

#define MAX_EVENTS 2

mqd_t mq;
int epoll_fd;

static void sigint_handler(
int signo)
{
  int ret;

  (void)close(mq);
  (void)close(epoll_fd);
  ret = mq_close(mq);

  if (ret < 0) {
   perror("mq_close");
   exit(EXIT_SUCCESS);
  }
  sleep(2);
  printf("Caught sigINT!\n");
  exit(EXIT_SUCCESS);
}

void register_signal_handler(
int signum,
void (*handler)(int))
{
  if (signal(signum, handler) ==
  SIG_ERR) {
     printf("Cannot handle signal\n");
     exit(EXIT_FAILURE);
  }
}

int main(void)
{
  const char* queue_name = "/my_queue";
  const char* message = "Hello, reader!";
  int ret;
  int ready_fds;
  char *buffer;
  struct mq_attr attr;
  struct epoll_event events[MAX_EVENTS];

  register_signal_handler(SIGINT,
  sigint_handler);

  mq = mq_open(queue_name,
  O_CREAT | O_RDWR, 0666, NULL);

  if (mq == (mqd_t)-1) {
    perror("mq_open");
    return -1;
  }

  if ((epoll_fd = epoll_create1(0)) == -1) {
          perror("Epoll creation failed");
          exit(EXIT_FAILURE);
  }

  struct epoll_event event;
  event.events = EPOLLIN;
  event.data.fd = mq;
  ret = epoll_ctl(epoll_fd,
  EPOLL_CTL_ADD, mq, &event);

  if (ret < 0) {
     perror("Epoll_ctl failed");
     exit(EXIT_FAILURE);
  }

  while (1) {
    ret = mq_send(mq, message,
    strlen(message) + 1, 0);

    if (ret < 0) {
      perror("mq_send");
      (void)close(mq);
      return -2;
    } else {
      printf("message = %s\n",
      message);
    }

    ready_fds = epoll_wait(epoll_fd,
    events, MAX_EVENTS, -1);

    if (ready_fds < 0) {
      perror("ready_fds");
      (void)close(mq);
      return -3;
    }

    if (events[0].data.fd == mq) {
      ret = mq_getattr(mq, &attr);

      if (ret < 0) {
        perror("mq_getattr");
        (void)close(mq);
        return -4;
      }

      buffer = (char*)malloc(
      attr.mq_msgsize);

      if (buffer == NULL) {
        perror("malloc");
        (void)close(mq);
        return -5;
      }

      memset(buffer, 0,
      sizeof(buffer));
      ret = mq_receive(mq, buffer,
      attr.mq_msgsize, NULL);

      if (ret < 0) {
        perror("mq_receive");
        (void)close(mq);
        return -6;
      }

      printf("Received message: %s\n",
      buffer);
      free(buffer);
    }
  }

  (void)mq_close(mq);

  return 0;
}


 1$ gcc -o writer writer.c -lrt
 2
 3$ sudo ./writer
 4
 5messageSent = Hello, reader!
 6Received message: Hello, Writer!
 7message = Hello, reader!
 8Received message: Hello, reader!
 9message = Hello, reader!
10Received message: Hello, reader!
11message = Hello, reader!
12Received message: Hello, reader!
13message = Hello, reader!
14Received message: Hello, reader!
15message = Hello, reader!
16Received message: Hello, reader!
17message = Hello, reader!
18Received message: Hello, reader!
19message = Hello, reader!
20Received message: Hello, reader!
21message = Hello, reader!
22Received message: Hello, Writer!
23message = Hello, reader!
24^CCaught sigINT!

Message queues API

Learning

mq_open

creates a new message queue or opens an existing one, depending on the specified flags and parameters.

mq_getattr

is employed to obtain the attributes of an open message queue, including its current state and configuration.

epoll

handles a set of file descriptors with different states, such as reading, writing, and exceptions, by using the struct epoll_event structure and the associated event flags..

mq_receive

receiving (reading) messages from a message queue.

mq_send

sending (writing) messages to a message queue.

mq_close

used to close a message queue descriptor.
See Also
