Namedpipe server client program with Epoll system call

Namedpipe

• In this program, you are going to learn

• How to open namedpipes for reading and writing ?

• How to read data ?

• How to write data ?

• How to use Namedpipe APIs ?

  • mkfifo

  • open

  • epoll_create1

  • epoll_ctl

  • epoll_wait

  • read

  • write

Topics in this section,

• namedpipe socket FAQs

• Step 1: Sequence Diagram for SERVER.c

• Step 2: Program for Server.c

• Step 3: Compile and Execute Server.c

• Step 4: Sequence Diagram for CLIENT.c

• Step 5: Program for Client.c

• Step 6: Compile and Execute Client.c

• Summary

namedpipe : FAQs

Let us answer few basic questions in this namedpipe

What is the purpose of mkfifo in the code?

See Answer

mkfifo is used to create a named pipe with a specific path and permission mode.

Why is O_RDONLY used when opening server_fifo for the first time?

See Answer

O_RDONLY indicates that the server is opening the named pipe for reading, expecting input from a client.

What happens if the server tries to open a non-existent named pipe using O_RDONLY?

See Answer

If the named pipe doesn’t exist, the open call will block until another process creates it. This is common in inter-process communication.

Why is O_WRONLY used when reopening client_fifo for writing?

See Answer

After receiving data from the client, the server reopens the named pipe for writing (O_WRONLY) to send a response back.

What is the significance of using O_WRONLY for the second open call?

See Answer

It designates the server’s intention to write to the named pipe, indicating a shift from reading to writing mode.

How does the server handle errors when opening the named pipe for reading or writing?

See Answer

The code checks the return value of the open call and prints an error message using perror if the operation fails.

How does the server handle cases where the named pipe is never opened for writing by the client?

See Answer

The server would block indefinitely at the write operation until the client opens the named pipe for reading.

What is the significance of using unlink(FIFO_PATH) in the signal handler?

See Answer

It removes the named pipe from the file system, ensuring that resources are properly cleaned up when the server exits.

Why are there multiple calls to close(server_fifo) and close(client_fifo) in the code?

See Answer

File descriptors need to be closed after usage to release system resources. Multiple calls ensure all relevant file descriptors are closed.

What is the primary purpose of the epoll system call?

See Answer

To efficiently monitor multiple file descriptors for I/O events

What types of file descriptors can be monitored using epoll?

See Answer

sockets, files, timerfd, socketpair, message_queue, Namedpipes and shared_memory.

What data structure is used by epoll to store events?

See Answer

Hash table

How do you handle errors when using the epoll system call?

See Answer

Check the return value for -1 to detect errors, Use perror to print error messages.

How does epoll handle a set of file descriptors with different states (e.g., reading, writing, exception)?

See Answer

Create the epoll Instance:

Before monitoring file descriptors, the application creates an epoll instance using the epoll_create system call.

int epoll_fd = epoll_create1(0);

Register File Discriptors:

The application registers file descriptors with the epoll instance using the epoll_ctl system call. It specifies the file descriptor, the events it is interested in (EPOLLIN for readability, EPOLLOUT for writability, etc.), and a user-defined data associated with the file descriptor.

struct epoll_event event;
event.events = EPOLLIN | EPOLLOUT;  // Interested in readability and writability
event.data.fd = my_file_descriptor; // File descriptor to monitor

epoll_ctl(epoll_fd, EPOLL_CTL_ADD, my_file_descriptor, &event);

Wait for Events:

The application enters a loop where it calls epoll_wait to wait for events. This call blocks until one or more registered file descriptors become ready or until a timeout occurs.

#define MAX_EVENTS 10
struct epoll_event events[MAX_EVENTS];

int num_events = epoll_wait(epoll_fd, events, MAX_EVENTS, timeout_ms);

Modify or Remove File Descriptors:

The application can dynamically modify or remove file descriptors from the epoll set using the epoll_ctl system call. For example, to modify events for an existing file descriptor:

struct epoll_event new_event;
new_event.events = EPOLLOUT;  // Modify to be interested in writability

epoll_ctl(epoll_fd, EPOLL_CTL_MOD, my_file_descriptor, &new_event);

To remove a file descriptor from the epoll set:

epoll_ctl(epoll_fd, EPOLL_CTL_DEL, my_file_descriptor, NULL);

How does epoll Checking Ready File Descriptors?

See Answer

After epoll_wait returns, the application iterates through the returned events to identify which file descriptors are ready and for what types of events.

for (int i = 0; i < num_events; ++i) {
        if (events[i].events & EPOLLIN) {
                // File descriptor i is ready for reading
        }

        if (events[i].events & EPOLLOUT) {
                // File descriptor i is ready for writing
        }
        // Check other events if needed (e.g., EPOLLERR, EPOLLHUP)
}

What does it mean if epoll returns 0?

See Answer

No file descriptors are ready within the specified timeout.

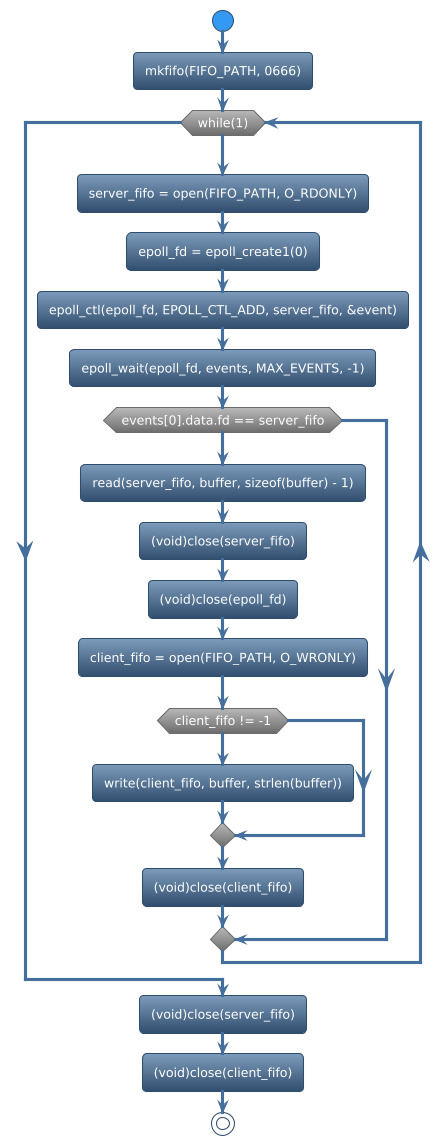

Step 1: Sequence Diagram for SERVER.c

Step 2: Program for Server.c

• There are many functions used in namedpipe. We can classify those functions based on functionalities.

  • mkfifo

  • open

  • Epoll create1

  • Epoll_ctl

  • Epoll_wait

  • read

  • write

  • close

• mkfifo is used to create a named pipe at a specified path (FIFO_PATH) with a given permission mode. For example,

mkfifo(FIFO_PATH, 0666);

• open is used to opening the named pipe with a given permission mode. For example,

server_fifo = open(FIFO_PATH, O_RDONLY);
client_fifo = open(FIFO_PATH, O_WRONLY);

• epoll_create1() creating an epoll instance using epoll_create1, The size parameter is an advisory hint for the kernel regarding the number of file descriptors expected to be monitored, For example,

epoll_fd = epoll_create1(0));

• epoll_ctl() After creating an epoll instance, file descriptors are added to it using epoll_ctl, For example,

ret = epoll_ctl(epoll_fd, EPOLL_CTL_ADD, server_fifo, &event);

• epoll_wait() The application then enters a loop where it waits for events using epoll_wait, For example,

ret = epoll_wait(epoll_fd, events, MAX_EVENTS, -1);

• read is used to read data from the named pipe, expecting input from a client. For example,

ret = read(server_fifo, buffer, sizeof(buffer) - 1);

• write is used to write a data to the named pipe, writing input to the client. For example,

ret = write(client_fifo, buffer, strlen(buffer));

• close is used to close the namepipe To free up system resources associated with the namedpipe. For example,

(void)close(server_fifo);
(void)close(client_fifo);

• See the full program below,

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/select.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <unistd.h>
#include <signal.h>
#include <sys/epoll.h>

#define FIFO_PATH "/tmp/my_named_pipe"
#define BUFFER_SIZE 1024
#define MAX_EVENTS 2

int client_fifo;
int server_fifo;
int epoll_fd;

static void sigint_handler(
int signo)
{
  (void)close(client_fifo);
  (void)close(server_fifo);
  (void)close(epoll_fd);
  unlink(FIFO_PATH);
  sleep(2);
  (void)printf("Caught sigINT!\n");
  exit(EXIT_SUCCESS);
}

void register_signal_handler(
int signum,
void (*handler)(int))
{
  if (signal(signum, handler) ==
  SIG_ERR) {
     printf("Cannot handle signal\n");
     exit(EXIT_FAILURE);
  }
}

int main(void)
{
  int ret;
  int ready_fds;
  char buffer[BUFFER_SIZE];
  struct epoll_event
  events[MAX_EVENTS];
  struct epoll_event event;

  register_signal_handler(SIGINT,
  sigint_handler);

  mkfifo(FIFO_PATH, 0666);

  while (1) {
    server_fifo = open(FIFO_PATH,
    O_RDONLY);

    if (server_fifo == -1) {
      perror("open server FIFO");
      return -1;
    }

    printf("Server is ready\n");
    printf("----------------\n");

    epoll_fd = epoll_create1(0);

    if (epoll_fd == -1) {
    	perror("Epoll creation failed");
	exit(EXIT_FAILURE);
    }

    event.events = EPOLLIN;
    event.data.fd = server_fifo;

    ret = epoll_ctl(epoll_fd, EPOLL_CTL_ADD,
    server_fifo, &event);

    if (ret < 0) {
       perror("Epoll_ctl failed");
       exit(EXIT_FAILURE);
    }

    ready_fds = epoll_wait(epoll_fd,
    events, MAX_EVENTS, -1);

    if (ready_fds == -1) {
	perror("Epoll wait failed");
	break;
    }

    if (events[0].data.fd == server_fifo) {
     ret = read(server_fifo,
     buffer, sizeof(buffer) - 1);

     if (ret < 0) {
        unlink(FIFO_PATH);
        break;
     } else {
        buffer[ret] = '\0';
        printf("Received : %s\n",
        buffer);
        (void)close(server_fifo);
        (void)close(epoll_fd);
     }

     snprintf(buffer,
     sizeof(buffer), "Hello from server!");

     client_fifo = open(FIFO_PATH,
     O_WRONLY);

     if (client_fifo != -1) {
       ret = write(client_fifo,
       buffer, strlen(buffer));

       if (ret == -1) {
          perror("write error");
          break;
       }
       printf("sent = %s\n\n",
       buffer);
     }
     (void)close(client_fifo);
    }
  }

  (void)close(server_fifo);
  (void)close(client_fifo);

  return 0;
}

Step 3: Compile and Execute Server.c

$ gcc -o server server.c

$ sudo ./server

Server is ready
----------------
Received : Hello from client!
sent = Hello from server!

Server is ready
----------------
Received : Hello from client!
sent = Hello from server!

Server is ready
----------------
Received : Hello from client!
sent = Hello from server!

Server is ready
----------------
Received : Hello from client!
sent = Hello from server!

Server is ready
----------------
Received : Hello from client!
sent = Hello from server!

^CCaught sigINT!

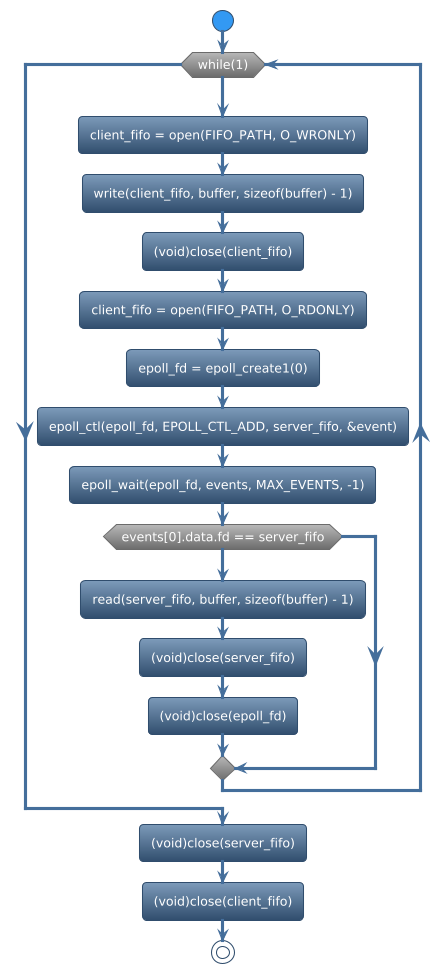

Step 4: Sequence Diagram for CLIENT.c

Step 5: Program for Client.c

• There are many functions used in namedpipe. We can classify those functions based on functionalities.

  • open

  • write

  • Epoll create1

  • Epoll_ctl

  • Epoll_wait

  • read

  • close

• open is used to opening the named pipe with a given permission mode. For example,

client_fifo = open(FIFO_PATH, O_WRONLY);
server_fifo = open(FIFO_PATH, O_RDONLY);

• write is used to write a data to the named pipe, writing input to the client. For example,

ret = write(client_fifo, buffer, sizeof(buffer) - 1);

• epoll_create1() creating an epoll instance using epoll_create1, The size parameter is an advisory hint for the kernel regarding the number of file descriptors expected to be monitored, For example,

epoll_fd = epoll_create1(0));

• epoll_ctl() After creating an epoll instance, file descriptors are added to it using epoll_ctl, For example,

ret = epoll_ctl(epoll_fd, EPOLL_CTL_ADD, server_fifo, &event);

• epoll_wait() The application then enters a loop where it waits for events using epoll_wait, For example,

ret = epoll_wait(epoll_fd, events, MAX_EVENTS, -1);

• read is used to read data from the named pipe, expecting input from a client. For example,

ret = read(server_fifo, buffer, sizeof(buffer) - 1);

• close is used to close the namepipe To free up system resources associated with the namedpipe. For example,

(void)close(server_fifo);
(void)close(client_fifo);

• See the full program below,

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/select.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <unistd.h>
#include <signal.h>
#include <sys/epoll.h>

#define FIFO_PATH "/tmp/my_named_pipe"
#define BUFFER_SIZE 1024
#define MAX_EVENTS 2

int client_fifo;
int server_fifo;
int epoll_fd;

static void sigint_handler(
int signo)
{
  (void)close(client_fifo);
  (void)close(server_fifo);
  (void)close(epoll_fd);
  unlink(FIFO_PATH);
  sleep(2);
  (void)printf("Caught sigINT!\n");
  exit(EXIT_SUCCESS);
}

void register_signal_handler(
int signum,
void (*handler)(int))
{
  if (signal(signum, handler) ==
  SIG_ERR) {
     printf("Cannot handle signal\n");
     exit(EXIT_FAILURE);
  }
}

int main(void)
{
  int ret;
  int ready_fds;
  char buffer[BUFFER_SIZE];
  struct epoll_event
  events[MAX_EVENTS];
  struct epoll_event event;

  register_signal_handler(SIGINT,
  sigint_handler);

  while (1) {
    client_fifo = open(FIFO_PATH,
    O_WRONLY);

    if (client_fifo == -1) {
      perror("open client FIFO");
      break;
    }

    printf("Client is ready\n");
    printf("----------------\n");

    snprintf(buffer,
    sizeof(buffer), "Hello from client!");

    ret = write(client_fifo,
    buffer, sizeof(buffer) - 1);

    if (ret < 0) {
      perror("write error");
      break;
    } else {
      buffer[ret] = '\0';
      printf("sent = %s\n", buffer);
      (void)close(client_fifo);
    }

    server_fifo = open(FIFO_PATH,
    O_RDONLY);

    if (server_fifo == -1) {
      perror("open FIFO error");
      break;
    }

    epoll_fd = epoll_create1(0);

    if (epoll_fd == -1) {
        perror("Epoll creation failed");
        exit(EXIT_FAILURE);
    }

    event.events = EPOLLIN;
    event.data.fd = server_fifo;

    ret = epoll_ctl(epoll_fd, EPOLL_CTL_ADD,
    server_fifo, &event);

    if (ret < 0) {
       perror("Epoll_ctl failed");
       exit(EXIT_FAILURE);
    }

    ready_fds = epoll_wait(epoll_fd,
    events, MAX_EVENTS, -1);

    if (ready_fds == -1) {
        perror("Epoll wait failed");
        break;
    }

    memset(buffer, 0,
    sizeof(buffer));

    if (events[0].data.fd == server_fifo) {
    ret = read(server_fifo,
    buffer, sizeof(buffer) - 1);

    if (ret < 0) {
       perror("read error");
       break;
    } else {
      buffer[ret] = '\0';
      printf("Received: %s\n\n",
      buffer);
    }
    (void)close(server_fifo);
    (void)close(epoll_fd);
   }
  }

  (void)close(server_fifo);
  (void)close(client_fifo);

  return 0;
}

Step 6: Compile and Execute Client.c

$ gcc -o client client.c

$ sudo ./client

Client is ready
----------------
sent = Hello from client!
Received: Hello from server!

Client is ready
----------------
sent = Hello from client!
Received: Hello from server!

Client is ready
----------------
sent = Hello from client!
Received: Hello from server!

Client is ready
----------------
sent = Hello from client!
Received: Hello from server!

Client is ready
----------------
sent = Hello from client!
Received: Hello from server!

^CCaught sigINT!

Summary

Socket API	Learning
mkfifo	create a named pipe at a specified path (FIFO_PATH) with a given permission mode.
open	opening the named pipe with a given permission mode.
read	read data from the named pipe, expecting input from a client.
epoll	handles a set of file descriptors with different states, such as reading, writing, and exceptions, by using the struct epoll_event structure and the associated event flags..
write	write a data to the named pipe, writing input to the client.

See Also

• Previous topic

  • Message_queues

• Current topic

  • NamedPipes

• Other IPCs

  • Netlink

  • Shared_Memory

  • Shared_Memory_2_FDS

  • SocketPair

  • Timerfd
