IPV4 RAW AF INET UDP server client program with Epoll system call

IPv4 RAW_AF_INET UDP

• In this program, you are going to learn

• How to create a Socket ?

• How to send a data ?

• How to recv a data ?

• How to use socket APIs ?

  • socket

  • epoll_create1

  • epoll_ctl

  • epoll_wait

  • sendto

  • recvfrom

Topics in this section,

• IPV4 RAW_AF_INET UDP SOCKET FAQs

• Step 1: Sequence Diagram for SERVER.c

• Step 2: Program for Server.c

• Step 3: Compile and Execute Server.c

• Step 4: Sequence Diagram for CLIENT.c

• Step 5: Program for Client.c

• Step 6: Compile and Execute Client.c

• Summary

IPV4 RAW_AF_INET UDP SOCKET : FAQs

Let us answer few basic questions in this socket

What does socket(AF_INET, SOCK_RAW, IPPROTO_UDP) do?

See Answer

This call creates a raw socket in the AF_INET address family for direct access to UDP packets.

When would I use SOCK_RAW sockets with IPPROTO_UDP?

See Answer

This combination is used for tasks like packet sniffing, crafting custom protocols, or low-level UDP packet manipulation.

Can SOCK_RAW sockets be used for regular UDP communication?

See Answer

While technically possible, it’s not recommended. Higher-level APIs are more suitable for standard UDP communication.

What is the difference between IPPROTO_UDP and SOCK_RAW for UDP communication?

See Answer

IPPROTO_UDP specifies the transport protocol (UDP), while SOCK_RAW indicates a raw socket, providing more control over UDP packet content.

What are common issues when working with raw UDP sockets?

See Answer

Common issues include permission errors, endianness mismatches, and improper packet handling.

How do I handle errors when using raw UDP sockets?

See Answer

Use error codes returned by system calls like socket and sendto for error handling. Log and handle errors gracefully.

Can raw UDP sockets be used for both sending and receiving data?

See Answer

Yes, raw UDP sockets can be used for both sending and receiving UDP packets.

Why is it important to check the return value of sendto() and recvfrom() in socket programming?

See Answer

It detects issues such as network errors or closed connections.

What is the primary purpose of the epoll system call?

See Answer

To efficiently monitor multiple file descriptors for I/O events

What types of file descriptors can be monitored using epoll?

See Answer

sockets, files, timerfd, socketpair, message_queue, Namedpipes and shared_memory.

What data structure is used by epoll to store events?

See Answer

Hash table

How do you handle errors when using the epoll system call?

See Answer

Check the return value for -1 to detect errors, Use perror to print error messages.

How does epoll handle a set of file descriptors with different states (e.g., reading, writing, exception)?

See Answer

Create the epoll Instance:

Before monitoring file descriptors, the application creates an epoll instance using the epoll_create system call.

int epoll_fd = epoll_create1(0);

Register File Discriptors:

The application registers file descriptors with the epoll instance using the epoll_ctl system call. It specifies the file descriptor, the events it is interested in (EPOLLIN for readability, EPOLLOUT for writability, etc.), and a user-defined data associated with the file descriptor.

struct epoll_event event;
event.events = EPOLLIN | EPOLLOUT;  // Interested in readability and writability
event.data.fd = my_file_descriptor; // File descriptor to monitor

epoll_ctl(epoll_fd, EPOLL_CTL_ADD, my_file_descriptor, &event);

Wait for Events:

The application enters a loop where it calls epoll_wait to wait for events. This call blocks until one or more registered file descriptors become ready or until a timeout occurs.

#define MAX_EVENTS 10
struct epoll_event events[MAX_EVENTS];

int num_events = epoll_wait(epoll_fd, events, MAX_EVENTS, timeout_ms);

Modify or Remove File Descriptors:

The application can dynamically modify or remove file descriptors from the epoll set using the epoll_ctl system call. For example, to modify events for an existing file descriptor:

struct epoll_event new_event;
new_event.events = EPOLLOUT;  // Modify to be interested in writability

epoll_ctl(epoll_fd, EPOLL_CTL_MOD, my_file_descriptor, &new_event);

To remove a file descriptor from the epoll set:

epoll_ctl(epoll_fd, EPOLL_CTL_DEL, my_file_descriptor, NULL);

How does epoll Checking Ready File Descriptors?

See Answer

After epoll_wait returns, the application iterates through the returned events to identify which file descriptors are ready and for what types of events.

for (int i = 0; i < num_events; ++i) {
        if (events[i].events & EPOLLIN) {
                // File descriptor i is ready for reading
        }

        if (events[i].events & EPOLLOUT) {
                // File descriptor i is ready for writing
        }
        // Check other events if needed (e.g., EPOLLERR, EPOLLHUP)
}

What does it mean if epoll returns 0?

See Answer

No file descriptors are ready within the specified timeout.

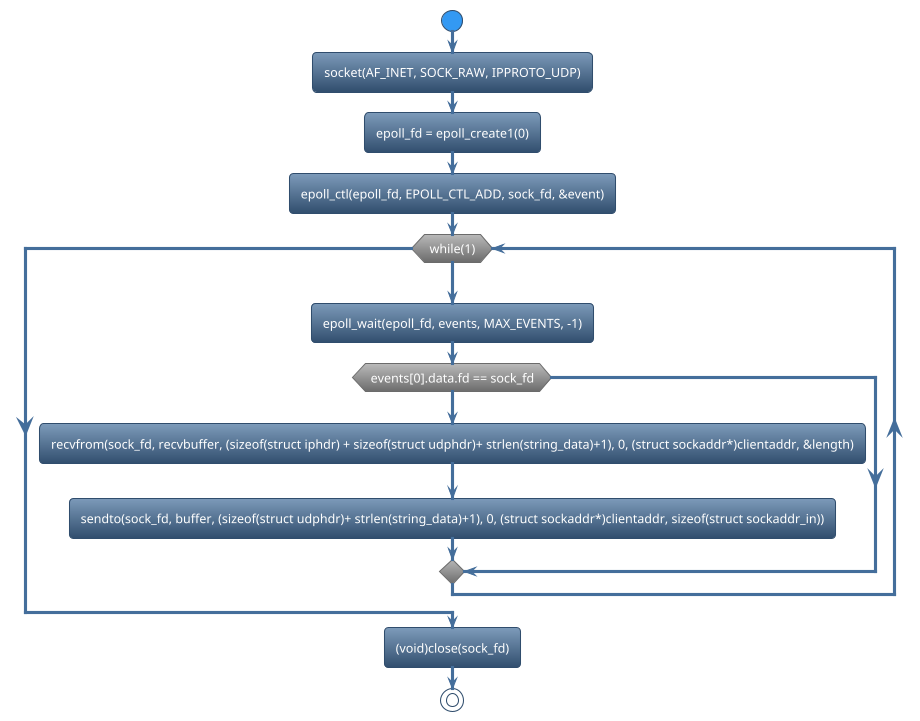

Step 1: Sequence Diagram for SERVER.c

Step 2 : program for server.c

• There are many functions used in socket. We can classify those functions based on functionalities.

  • Create Socket

  • Epoll create1

  • Epoll_ctl

  • Epoll_wait

  • Recvfrom data_packet

  • Sendto data_packet

  • Close socket

• socket() is used to create a new socket. For example,

sock_fd = socket(AF_INET, SOCK_RAW, IPPROTO_UDP);

• epoll_create1() creating an epoll instance using epoll_create1, The size parameter is an advisory hint for the kernel regarding the number of file descriptors expected to be monitored, For example,

epoll_fd = epoll_create1(0);

• epoll_ctl() After creating an epoll instance, file descriptors are added to it using epoll_ctl, For example,

ret = epoll_ctl(epoll_fd, EPOLL_CTL_ADD, sock_fd, &event);

• epoll_wait() The application then enters a loop where it waits for events using epoll_wait, For example,

ready_fds = epoll_wait(epoll_fd, events, MAX_EVENTS, -1);

• recvfrom is commonly used with sockets, where communication is connectionless. it provides information about the source (sender) of the data, including the sender’s IP address and port number. For example,

ret = recvfrom(sock_fd, recvbuffer, (sizeof(struct iphdr) + sizeof(struct udphdr)+ strlen(string_data)+1), 0, (struct sockaddr*)clientaddr, &length);

• sendto is used to send the encoded message to the specified server address and port using a socket. For example,

ret = sendto(sock_fd, buffer, (sizeof(struct udphdr)+ strlen(string_data)+1), 0, (struct sockaddr*)clientaddr, sizeof(struct sockaddr_in));

• close is used to close the socket To free up system resources associated with the socket. For example,

(void)close(sock_fd);

• See the full program below,

#include <stdio.h>
#include <string.h>
#include <sys/socket.h>
#include <stdlib.h>
#include <linux/udp.h> /* UDP Header */
#include <arpa/inet.h>
#include <unistd.h>
#include <signal.h>
#include <linux/ip.h>
#include <sys/epoll.h>

#define MAX_EVENTS 5

struct sockaddr_in
*clientaddr = NULL;
int sock_fd = -1;
int epoll_fd = -1;
int SERVPORT=20000;
int DESTPORT=20001;

struct pseudo_iphdr {
  unsigned int source_ip_addr;
  unsigned int dest_ip_addr;
  unsigned char fixed;
  unsigned char protocol;
  unsigned short udp_len;
};

unsigned short in_cksum (
uint16_t * addr, int len)
{
  int nleft = len;
  unsigned int sum = 0;
  unsigned short *w = addr;
  unsigned short answer = 0;

  while (nleft > 1) {
    sum += *w++;
    nleft -= 2;
  }

  if (nleft == 1) {
    *(unsigned char *) (&answer) =
    * (unsigned char *) w;
    sum += answer;
  }

  sum = (sum >> 16) +
  (sum & 0xffff);
  sum += (sum >> 16);
  answer = (unsigned short) ~sum;
  return (answer);
}

void interrupt_handler (
int signum)
{
  (void)close(sock_fd);
  free(clientaddr);
  exit(0);
}

void validate_convert_addr(
char *ip_str,
struct sockaddr_in *sock_addr)
{
  if (ip_str == NULL) {
   perror("Invalid ip_str\n");
   exit(EXIT_FAILURE);
 }

 if (sock_addr == NULL) {
   perror("Invalid sock_addr\n");
   exit(EXIT_FAILURE);
 }

 printf("IP Address: %s\n", ip_str);

 if (inet_pton(AF_INET, ip_str,
 &(sock_addr->sin_addr)) <= 0) {
    perror("Invalid address\n");
    exit(EXIT_FAILURE);
  }
}

void main (int argc, char *argv[])
{
  socklen_t length;
  char buffer[1024] = {0};
  unsigned char
  recvbuffer[1024] = {0};
  char *string =
  "Hello client\n";
  struct udphdr *udp_hdr = NULL;
  char *string_data = NULL;
  char *recv_string_data = NULL;
  char *csum_buffer = NULL;
  struct pseudo_iphdr
  csum_hdr;
  int ready_fds, ret;
  struct epoll_event
  events[MAX_EVENTS];
  struct epoll_event event;

  signal (SIGINT,
  interrupt_handler);
  signal (SIGTERM,
  interrupt_handler);

  if (argc != 2) {
   printf("%s<ip-addr>\n",
   argv[0]);
   exit(EXIT_FAILURE);
  }

  sock_fd = socket(AF_INET,
            SOCK_RAW,
            IPPROTO_UDP);

  if (sock_fd < 0) {
    printf("create a socket\n");
    exit(0);
  }

  clientaddr = (struct sockaddr_in *)malloc(
  sizeof(struct sockaddr_in));

  if (clientaddr == NULL) {
    printf("allocate memory\n");
    goto end;
  }

  clientaddr->sin_family = AF_INET;
  clientaddr->sin_port =
  htons(DESTPORT);
  validate_convert_addr(argv[1],
  clientaddr);

  memset(buffer, 0,
  sizeof(buffer));

  string_data = (char *)
  (buffer + sizeof(struct udphdr));
  strncpy(string_data,
  string, strlen(string));

  udp_hdr = (struct udphdr *)buffer;

  udp_hdr->source = htons(SERVPORT);
  udp_hdr->dest = htons(DESTPORT);
  udp_hdr->len = htons(
  sizeof(struct udphdr));

  csum_buffer = (char *)calloc((
  sizeof(struct pseudo_iphdr) +
  sizeof(struct udphdr) +
  strlen(string_data)), sizeof(char));

 if (csum_buffer == NULL) {
    printf("allocate csum buffer\n");
    goto end1;
  }

  csum_hdr.source_ip_addr =
  inet_addr("127.0.0.1");
  csum_hdr.dest_ip_addr =
  inet_addr("127.0.0.1");
  csum_hdr.fixed = 0;
  csum_hdr.protocol = IPPROTO_UDP;
  csum_hdr.udp_len = htons(
  sizeof(struct udphdr) +
  strlen(string_data) + 1);

  memcpy(csum_buffer,
  (char *)&csum_hdr,
  sizeof(struct pseudo_iphdr));
  memcpy(csum_buffer +
  sizeof(struct pseudo_iphdr), buffer,
  (sizeof(struct udphdr) +
  strlen(string_data) + 1));

  udp_hdr->check = (in_cksum(
  (unsigned short *) csum_buffer,
  (sizeof(struct pseudo_iphdr)+
  sizeof(struct udphdr) +
  strlen(string_data) + 1)));

  printf("checksum is %x\n",
  udp_hdr->check);
  free (csum_buffer);

  epoll_fd = epoll_create1(0);

  if (epoll_fd < 0) {
    perror("Epoll creation failed");
    exit(EXIT_FAILURE);
  }

  event.events = EPOLLIN;
  event.data.fd = sock_fd;

  ret = epoll_ctl(epoll_fd,
  EPOLL_CTL_ADD, sock_fd, &event);

  if (ret < 0) {
    perror("Epoll_ctl failed");
    exit(EXIT_FAILURE);
  }

  while (1) {
    ready_fds = epoll_wait(epoll_fd,
    events, MAX_EVENTS, -1);

    if (ready_fds < 0) {
       perror("Epoll wait failed");
       exit(EXIT_FAILURE);
    }

    if (events[0].data.fd ==
    sock_fd) {
     memset(recvbuffer, 0,
     sizeof(recvbuffer));

     ret = recvfrom(sock_fd, recvbuffer,
     (sizeof(struct iphdr) +
     sizeof(struct udphdr)+
     strlen(string_data)+1), 0,
     (struct sockaddr *)clientaddr,
     &length);

     if (ret < 0) {
        printf("recv Message\n");
	goto end1;
     }

     udp_hdr = (struct udphdr *)
     (recvbuffer +
     sizeof (struct iphdr));

     recv_string_data = (char *)
     (recvbuffer +
     sizeof (struct iphdr) +
     sizeof (struct udphdr));

     if (SERVPORT ==
     ntohs(udp_hdr->source)) {
       printf("Received :%s\n",
       recv_string_data);
     }

     ret = sendto(sock_fd, buffer,
     (sizeof(struct udphdr)+
     strlen(string_data)+1), 0,
     (struct sockaddr *)clientaddr,
     sizeof(struct sockaddr_in));

     if (ret < 0) {
	printf("send Message\n");
	goto end1;
     }
    }
  }
end1:
  free (clientaddr);
end:
  (void)close(sock_fd);
  return;
}

Step 3: Compile and Execute server.c

$ gcc -o server server.c

$ sudo ./server 127.0.0.1

IP Address: 127.0.0.1
checksum is 53fc
Received :Hello server

Received :Hello server

Received :Hello server

Received :Hello server

Received :Hello server

Received :Hello server

Received :Hello client

Received :Hello server

Received :Hello client

Received :Hello server

Received :Hello client
^C

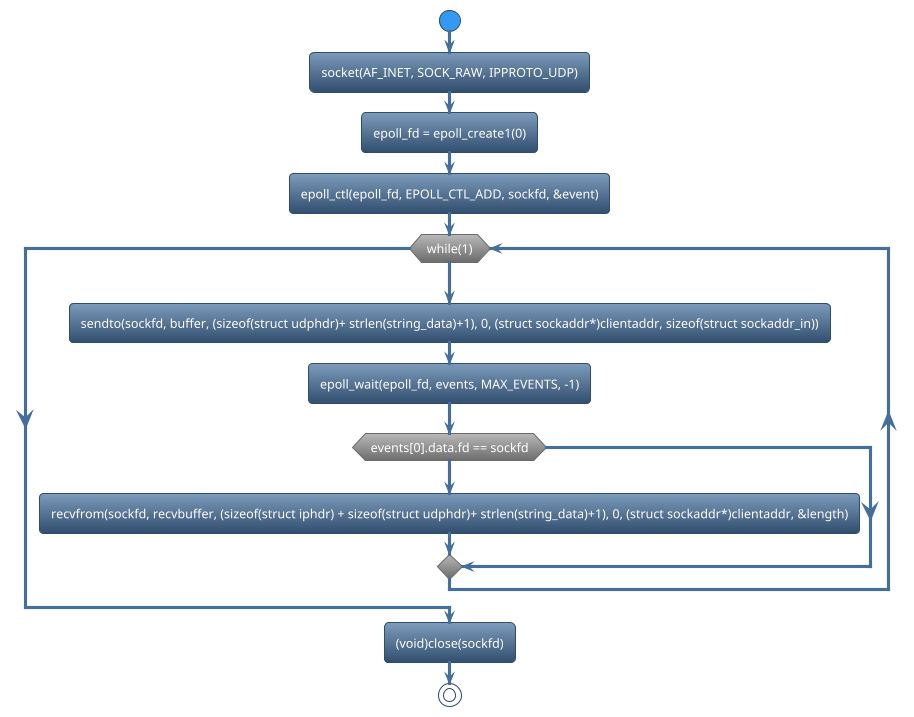

Step 4 : Sequence Diagram for CLIENT.c

Step 5: program for client.c

• There are many functions used in socket. We can classify those functions based on functionalities.

  • Create Socket

  • Epoll create1

  • Epoll_ctl

  • Epoll_wait

  • Sendto data_packet

  • Recvfrom data_packet

  • Close socket

• socket is used to create a new socket. For example,

sockfd = socket(AF_INET, SOCK_RAW, IPPROTO_UDP);

• epoll_create1() creating an epoll instance using epoll_create1, The size parameter is an advisory hint for the kernel regarding the number of file descriptors expected to be monitored, For example,

epoll_fd = epoll_create1(0);

• epoll_ctl() After creating an epoll instance, file descriptors are added to it using epoll_ctl, For example,

ret = epoll_ctl(epoll_fd, EPOLL_CTL_ADD, sockfd, &event);

• epoll_wait() The application then enters a loop where it waits for events using epoll_wait, For example,

ready_fds = epoll_wait(epoll_fd, events, MAX_EVENTS, -1);

• sendto is used to send the encoded message to the specified server address and port using a socket. For example,

ret = sendto(sockfd, buffer, (sizeof(struct udphdr)+ strlen(string_data)+1), 0, (struct sockaddr*)clientaddr, sizeof(struct sockaddr_in));

• recvfrom is commonly used with sockets, where communication is connectionless. it provides information about the source (sender) of the data, including the sender’s IP address and port number. For example,

ret = recvfrom(sockfd, recvbuffer, (sizeof(struct iphdr) + sizeof(struct udphdr)+ strlen(string_data)+1), 0, (struct sockaddr*)clientaddr, &length);

• close is used to close the socket To free up system resources associated with the socket. For example,

(void)close(sockfd);

• See the full program below,

#include <stdio.h>
#include <string.h>
#include <sys/socket.h>
#include <stdlib.h>
#include <linux/udp.h> /* UDP Header */
#include <arpa/inet.h>
#include <unistd.h>
#include <signal.h>
#include <linux/ip.h>
#include <sys/epoll.h>

#define MAX_EVENTS 2

struct sockaddr_in
*clientaddr = NULL;
int sockfd = -1;
int epoll_fd = -1;
int SERVPORT=20000;
int DESTPORT=20001;

struct pseudo_iphdr {
  unsigned int source_ip_addr;
  unsigned int dest_ip_addr;
  unsigned char fixed;
  unsigned char protocol;
  unsigned short udp_len;
};

unsigned short in_cksum (
uint16_t * addr, int len)
{
  int nleft = len;
  unsigned int sum = 0;
  unsigned short *w = addr;
  unsigned short answer = 0;

  while (nleft > 1) {
    sum += *w++;
    nleft -= 2;
  }

  if (nleft == 1) {
    *(unsigned char *) (&answer) = *
    (unsigned char *) w;
    sum += answer;
  }

  sum = (sum >> 16) +
  (sum & 0xffff);
  sum += (sum >> 16);
  answer = (unsigned short) ~sum;
  return (answer);
}

void interrupt_handler (
int signum)
{
  (void)close(sockfd);
  free(clientaddr);
  exit(0);
}

void validate_convert_addr(
char *ip_str,
struct sockaddr_in *sock_addr)
{
  if (ip_str == NULL) {
   perror("Invalid ip_str\n");
   exit(EXIT_FAILURE);
 }

 if (sock_addr == NULL) {
   perror("Invalid sock_addr\n");
   exit(EXIT_FAILURE);
 }

 printf("IP Address: %s\n", ip_str);

 if (inet_pton(AF_INET, ip_str,
 &(sock_addr->sin_addr)) <= 0) {
    perror("Invalid address\n");
    exit(EXIT_FAILURE);
  }
}

int main(int argc, char *argv[])
{
   socklen_t length;
   char buffer[1024] = {0};
   unsigned char recvbuffer[1024] =
   {0};
   char *string =
   "Hello server\n";
   struct udphdr *udp_hdr = NULL;
   char *string_data = NULL;
   char *recv_string_data = NULL;
   char *csum_buffer = NULL;
   struct pseudo_iphdr csum_hdr;
   int ready_fds, ret;
   struct epoll_event
   events[MAX_EVENTS];
   struct epoll_event event;

   signal (SIGINT,
   interrupt_handler);
   signal (SIGTERM,
   interrupt_handler);

   if (argc != 2) {
    printf("%s<ip-addr>\n",
    argv[0]);
    exit(EXIT_FAILURE);
   }

   sockfd = socket(AF_INET,
            SOCK_RAW,
            IPPROTO_UDP);

   if (sockfd < 0) {
      printf("create a socket\n");
      exit(0);
   }

   clientaddr = (struct sockaddr_in *)
   malloc(sizeof(struct sockaddr_in));

   if (clientaddr == NULL) {
      printf("allocate memory\n");
      goto end;
   }

   clientaddr->sin_family = AF_INET;
   clientaddr->sin_port =
   htons(DESTPORT);
   validate_convert_addr(argv[1],
   clientaddr);

   memset(buffer, 0,
   sizeof(buffer));

   string_data = (char *)
   (buffer + sizeof(struct udphdr));
   strncpy(string_data,
   string, strlen(string));

   udp_hdr = (struct udphdr *)buffer;

   udp_hdr->source = htons(SERVPORT);
   udp_hdr->dest = htons(DESTPORT);
   udp_hdr->len = htons(
   sizeof(struct udphdr));

   csum_buffer = (char *)calloc(
   (sizeof(struct pseudo_iphdr) +
   sizeof(struct udphdr) +
   strlen(string_data)), sizeof(char));

   if (csum_buffer == NULL) {
       printf("allocate csum buffer\n");
       goto end1;
   }

   csum_hdr.source_ip_addr =
   inet_addr("127.0.0.1");
   csum_hdr.dest_ip_addr =
   inet_addr("127.0.0.1");
   csum_hdr.fixed = 0;
   csum_hdr.protocol = IPPROTO_UDP; /* UDP protocol */
   csum_hdr.udp_len = htons(
   sizeof(struct udphdr) +
   strlen(string_data) + 1);

   memcpy(csum_buffer,
   (char *)&csum_hdr,
   sizeof(struct pseudo_iphdr));
   memcpy(csum_buffer +
   sizeof(struct pseudo_iphdr),
   buffer, (sizeof(struct udphdr) +
   strlen(string_data) + 1));

   udp_hdr->check = (in_cksum(
   (unsigned short *) csum_buffer,
   (sizeof(struct pseudo_iphdr)+
   sizeof(struct udphdr) +
   strlen(string_data) + 1)));

   printf("checksum is %x\n",
   udp_hdr->check);
   free (csum_buffer);

   epoll_fd = epoll_create1(0);

   if (epoll_fd < 0) {
      perror("Epoll creation failed");
      exit(EXIT_FAILURE);
   }

   event.events = EPOLLIN;
   event.data.fd = sockfd;

   ret = epoll_ctl(epoll_fd,
   EPOLL_CTL_ADD, sockfd, &event);

   if (ret < 0) {
     perror("Epoll_ctl failed");
     exit(EXIT_FAILURE);
   }

   while (1) {
      ret = sendto(sockfd, buffer,
      (sizeof(struct udphdr)+
      strlen(string_data)+1), 0,
      (struct sockaddr *)clientaddr,
      sizeof(struct sockaddr_in));

      if (ret == -1) {
          printf("send Message\n");
          goto end1;
      }

      ready_fds = epoll_wait(epoll_fd,
      events, MAX_EVENTS, -1);

      if (ready_fds < 0) {
	 perror("Epoll wait failed");
	 exit(EXIT_FAILURE);
      }

      if (events[0].data.fd == sockfd) {
	memset(recvbuffer, 0,
	sizeof(recvbuffer));

	ret = recvfrom(sockfd, recvbuffer,
     	(sizeof(struct iphdr) +
     	sizeof(struct udphdr)+
     	strlen(string_data)+1), 0,
     	(struct sockaddr *)clientaddr,
	&length);

     	if (ret < 0) {
          printf("recv Message\n");
          goto end1;
        }

        udp_hdr = (struct udphdr *)
        (recvbuffer +
	sizeof (struct iphdr));

        recv_string_data = (char *)
        (recvbuffer +
        sizeof (struct iphdr) +
        sizeof (struct udphdr));

        if (SERVPORT ==
        ntohs(udp_hdr->source)) {
           printf("Received :%s\n",
           recv_string_data);
        }
      }
   }

end1:
    free (clientaddr);
end:
    (void)close (sockfd);
    return 0;
}

Step 6: Compile and Execute client.c

$ gcc -o client client.c

$ sudo ./client 127.0.0.1

Received :Hello server

Received :Hello client

Received :Hello server

Received :Hello client

Received :Hello server

Received :Hello client

Received :Hello client

Received :Hello server

Received :Hello client

Received :Hello client

Received :Hello server
^C

Enhanced Socket Flexibility with AF_INET and PF_INET Domains

Default Domain:

By default, the socket is configured to work in the AF_INET domain, handling all types of network data.

Additional Domain Support:

We expand the socket’s capabilities to also function in the PF_INET domain, allowing it to operate similarly to AF_INET.

Socket Creation:

We set up a network connection point known as a socket using socket(PF_INET, SOCK_RAW, IPPROTO_UDP).

Working Scenario:

Despite the change in domain to PF_INET, the socket continues to operate the same way, handling general network data.

Summary

Socket API	Learning
socket	Create a new socket
epoll	handles a set of file descriptors with different states, such as reading, writing, and exceptions, by using the struct epoll_event structure and the associated event flags..
recvfrom	It provides information about the source (sender) of the data, including the sender’s IP address and port number.
sendto	Send the encoded message to the specified server address and port using a socket.

See Also

• Previous topic

  • IPV4 RAW AF INET UDP server client program with Poll system call

• Current topic

  • IPV4 RAW AF INET UDP server client program with Epoll system call

• Next topic

  • ipv6_af_inet6_tcp

• Other sockets

  • ipv6_af_inet6_udp

  • //TODO ipv6_raw_af_inet6_icmp

  • //TODO ipv6_raw_af_inet6_tcp

  • //TODO ipv6_raw_af_inet6_udp

  • // TODO ipv6_raw_af_inet6_raw

  • raw_af_packet_raw_htons_ETH_P_ALL

  • raw_af_packet_tcp_htons_ETH_P_ALL

  • raw_af_packet_udp_htons_ETH_P_ALL

• Other IPCs

  • Message_queues

  • NamedPipes

  • Netlink

  • Shared_Memory

  • Shared_Memory_2_FDS

  • SocketPair

  • Timerfd
