af_packet raw server client program with Epoll system call

AF_PACKET RAW

• In this program, you are going to learn

• How to create a Socket ?

• How to bind a socket ?

• How to send a data ?

• How to recv a data ?

• How to use socket APIs ?

  • socket

  • bind

  • epoll_create1

  • epoll_ctl

  • epoll_wait

  • send

  • recv

Topics in this section,

• AF_PACKET RAW SOCKET FAQs

• Step 1: Sequence Diagram for SERVER.c

• Step 2: Program for Server.c

• Step 3: Compile and Execute Server.c

• Step 4: Sequence Diagram for CLIENT.c

• Step 5: Program for Client.c

• Step 6: Compile and Execute Client.c

• Summary

AF_PACKET RAW SOCKET : FAQs

Let us answer few basic questions in this socket

What does socket(AF_PACKET, SOCK_RAW, htons(ETH_P_ALL)) do?

See Answer

This call creates a raw socket at the data link layer, allowing capturing of all Ethernet frames, including those not destined for the local host.

How can I handle errors when creating a raw socket for packet capturing?

See Answer

Check the return value of the socket function. If it returns -1, use perror to print a descriptive error message.

Are there specific privileges required to create a raw packet socket?

See Answer

Yes, typically, root or superuser privileges are required to create a raw packet socket for security reasons.

What kind of errors can occur when using a raw packet socket?

See Answer

Common errors include permission-related errors (EACCES), socket creation failures (ENOMEM), or invalid arguments (EINVAL).

How do I handle errors when binding a raw packet socket?

See Answer

Check the return value of the bind function. If it returns -1, handle the error by printing a message or taking appropriate corrective action based on the error code.

What is the significance of error code EPERM when dealing with raw packet sockets?

See Answer

EPERM (Operation not permitted) typically indicates insufficient privileges. Ensure the program has the necessary permissions to create raw packet sockets.

How do I handle errors when using recv and send to capture packets and send packets with a raw socket?

See Answer

Check the return value of recv and send. If it returns -1, handle the error by printing a message or taking appropriate corrective action.

Is it important to close the raw packet socket on error?

See Answer

Yes, closing the socket is crucial to release system resources. Always follow error-handling best practices and close sockets on error.

Is it possible to capture packets on a specific network interface with a raw packet socket?

See Answer

Yes, use the bind function to associate the raw packet socket with a specific network interface.

How do I handle errors related to socket file descriptor management?

See Answer

When closing sockets, check for errors using close. Handle errors by printing messages or taking corrective actions.

What is a common practice for handling timeouts in socket programming?

See Answer

Use non-blocking sockets with functions like epoll() or poll().

Can you use a TCP socket (SOCK_STREAM) for sending and receiving data concurrently between a client and server?

See Answer

Yes, TCP sockets support bidirectional communication.

What is the primary purpose of the epoll system call?

See Answer

To efficiently monitor multiple file descriptors for I/O events

What types of file descriptors can be monitored using epoll?

See Answer

sockets, files, timerfd, socketpair, message_queue, Namedpipes and shared_memory.

What data structure is used by epoll to store events?

See Answer

Hash table

How do you handle errors when using the epoll system call?

See Answer

Check the return value for -1 to detect errors, Use perror to print error messages.

How does epoll handle a set of file descriptors with different states (e.g., reading, writing, exception)?

See Answer

Create the epoll Instance:

Before monitoring file descriptors, the application creates an epoll instance using the epoll_create system call.

int epoll_fd = epoll_create1(0);

Register File Discriptors:

The application registers file descriptors with the epoll instance using the epoll_ctl system call. It specifies the file descriptor, the events it is interested in (EPOLLIN for readability, EPOLLOUT for writability, etc.), and a user-defined data associated with the file descriptor.

struct epoll_event event;
event.events = EPOLLIN | EPOLLOUT;  // Interested in readability and writability
event.data.fd = my_file_descriptor; // File descriptor to monitor

epoll_ctl(epoll_fd, EPOLL_CTL_ADD, my_file_descriptor, &event);

Wait for Events:

The application enters a loop where it calls epoll_wait to wait for events. This call blocks until one or more registered file descriptors become ready or until a timeout occurs.

#define MAX_EVENTS 10
struct epoll_event events[MAX_EVENTS];

int num_events = epoll_wait(epoll_fd, events, MAX_EVENTS, timeout_ms);

Modify or Remove File Descriptors:

The application can dynamically modify or remove file descriptors from the epoll set using the epoll_ctl system call. For example, to modify events for an existing file descriptor:

struct epoll_event new_event;
new_event.events = EPOLLOUT;  // Modify to be interested in writability

epoll_ctl(epoll_fd, EPOLL_CTL_MOD, my_file_descriptor, &new_event);

To remove a file descriptor from the epoll set:

epoll_ctl(epoll_fd, EPOLL_CTL_DEL, my_file_descriptor, NULL);

How does epoll Checking Ready File Descriptors?

See Answer

After epoll_wait returns, the application iterates through the returned events to identify which file descriptors are ready and for what types of events.

for (int i = 0; i < num_events; ++i) {
        if (events[i].events & EPOLLIN) {
                // File descriptor i is ready for reading
        }

        if (events[i].events & EPOLLOUT) {
                // File descriptor i is ready for writing
        }
        // Check other events if needed (e.g., EPOLLERR, EPOLLHUP)
}

What does it mean if epoll returns 0?

See Answer

No file descriptors are ready within the specified timeout.

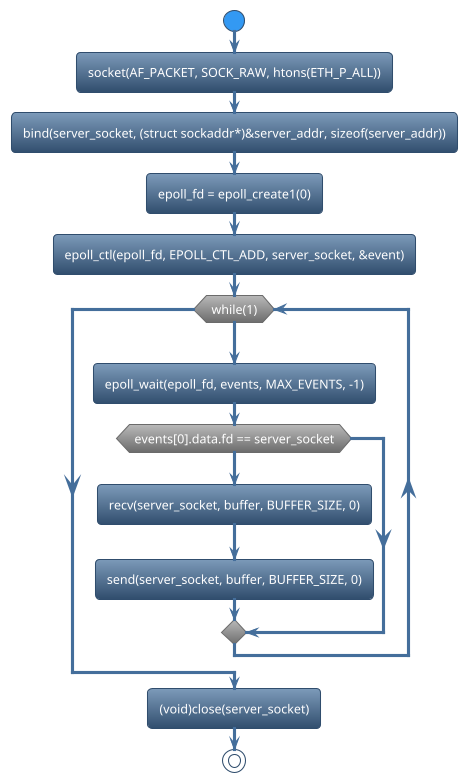

Step 1: Sequence Diagram for SERVER.c

Step 2: Program for Server.c

• There are many functions used in socket. We can classify those functions based on functionalities.

  • Create Socket

  • Bind Socket

  • Epoll create1

  • Epoll_ctl

  • Epoll_wait

  • Recv data_packet

  • Send data_packet

  • Close socket

• socket() is used to create a new socket. For example,

server_socket = socket(AF_PACKET, SOCK_RAW, htons(ETH_P_ALL));

• bind() is used to associate the socket with a specific address and port. For example,

ret = bind(server_socket, (struct sockaddr*)&server_addr, sizeof(server_addr));

• epoll_create1() creating an epoll instance using epoll_create1, The size parameter is an advisory hint for the kernel regarding the number of file descriptors expected to be monitored, For example,

epoll_fd = epoll_create1(0));

• epoll_ctl() After creating an epoll instance, file descriptors are added to it using epoll_ctl, For example,

ret = epoll_ctl(epoll_fd, EPOLL_CTL_ADD, server_socket, &event);

• epoll_wait() The application then enters a loop where it waits for events using epoll_wait, For example,

ready_fds = epoll_wait(epoll_fd, events, MAX_EVENTS, -1);

• recv is used in network programming to receive data from a connected socket. For example,

len = recv(server_socket, buffer, BUFFER_SIZE, 0);

• send is used in network programming to send data over a connected socket. For example,

ret = send(server_socket, buffer, BUFFER_SIZE, 0);

• close is used to close the socket To free up system resources associated with the socket. For example,

(void)close(server_socket);

• See the full program below,

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <arpa/inet.h>
#include <signal.h>
#include <netpacket/packet.h>
#include <net/ethernet.h>
#include <net/if.h>
#include <sys/epoll.h>

#define BUFFER_SIZE 1024
#define MAX_EVENTS 2

int server_socket = -1;
int epoll_fd = -1;

static void sigint_handler(int signo)
{
  (void)close(server_socket);
  (void)close(epoll_fd);
  sleep(2);
  printf("Caught sigINT!\n");
  exit(EXIT_SUCCESS);
}

void register_signal_handler(
int signum,
void (*handler)(int))
{
  if (signal(signum, handler) ==
  SIG_ERR) {
     printf("Cannot handle signal\n");
     exit(EXIT_FAILURE);
  }
}

int main(void)
{
  int ret, i;
  int ready_fds;
  struct sockaddr_ll
  server_addr,
  client_addr;
  char buffer[BUFFER_SIZE];
  struct epoll_event
  events[MAX_EVENTS];
  struct epoll_event event;

  register_signal_handler(SIGINT,
  sigint_handler);

  server_socket = socket(AF_PACKET,
                  SOCK_RAW,
                  htons(ETH_P_ALL));

  if (server_socket < 0) {
    perror("socket");
    return -1;
  }

  memset(&server_addr, 0,
  sizeof(server_addr));
  server_addr.sll_family = AF_PACKET;
  server_addr.sll_protocol =
  htons(ETH_P_ALL);
  server_addr.sll_ifindex =
  if_nametoindex("lo");

  ret = bind(server_socket,
  (struct sockaddr*)&server_addr,
  sizeof(server_addr));

  if (ret < 0) {
    perror("bind");
    (void)close(server_socket);
    return -2;
  }

  printf("RAW socket is listening\n");

  socklen_t client_addr_len =
  sizeof(client_addr);

  epoll_fd = epoll_create1(0);

  if (epoll_fd < 0) {
    perror("Epoll creation failed");
    exit(EXIT_FAILURE);
  }

  event.events = EPOLLIN;
  event.data.fd = server_socket;

  ret = epoll_ctl(epoll_fd,
  EPOLL_CTL_ADD, server_socket, &event);

  if (ret < 0) {
     perror("Epoll_ctl failed");
     exit(EXIT_FAILURE);
  }

  while (1) {
    ready_fds = epoll_wait(epoll_fd,
    events, MAX_EVENTS, -1);

    if (ready_fds < 0) {
	perror("Epoll wait failed");
        exit(EXIT_FAILURE);
    }

    if (events[0].data.fd ==
    server_socket) {
      memset(buffer, 0,
      sizeof(buffer));
      ret = recv(server_socket,
      buffer, BUFFER_SIZE, 0);

      if (ret < 0) {
	perror("recvfrom error");
        break;
     } else {
        buffer[ret] = '\0';
        printf("Received: %s\n",
        buffer);
     }
     sleep(3);

     memset(buffer, 0,
     sizeof(buffer));
     strncpy(buffer, "HELLO",
     strlen("HELLO") + 1);
     buffer[strlen(buffer)
     + 1] = '\0';

     ret = send(server_socket,
     buffer, BUFFER_SIZE, 0);

     if (ret == -1) {
        perror("sendto error");
        break;
      } else {
	printf("sending message = %s\n",
	buffer);
     }
   }
  }

  (void)close(server_socket);

  return 0;
}

Step 3: Compile and Execute Server.c

$ gcc -o server server.c

$ sudo ./server

RAW socket is listening
Received: hello server!
sending message = HELLO
Received: hello server!
sending message = HELLO
Received: HELLO
sending message = HELLO
Received: hello server!
sending message = HELLO
Received: hello server!
sending message = HELLO
Received: HELLO
sending message = HELLO
Received: hello server!
^CCaught sigINT!

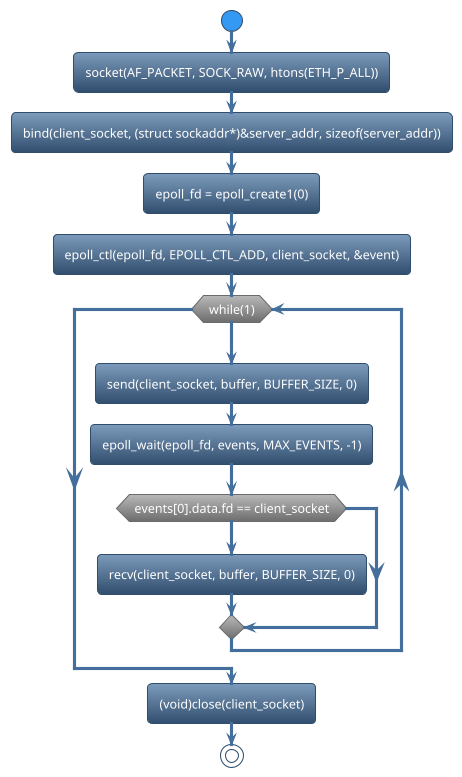

Step 4: Sequence Diagram for CLIENT.c

Step 5: Program for Client.c

• There are many functions used in socket. We can classify those functions based on functionalities.

  • Create Socket

  • Bind Socket

  • Epoll create1

  • Epoll_ctl

  • Epoll_wait

  • Send data_packet

  • Recv data_packet

  • Close socket

• socket is used to create a new socket. For example,

client_socket = socket(AF_PACKET, SOCK_RAW, htons(ETH_P_ALL));

• bind() is used to associate the socket with a specific address and port. For example,

ret = bind(client_socket, (struct sockaddr*)&server_addr, sizeof(server_addr));

• epoll_create1() creating an epoll instance using epoll_create1, The size parameter is an advisory hint for the kernel regarding the number of file descriptors expected to be monitored, For example,

epoll_fd = epoll_create1(0));

• epoll_ctl() After creating an epoll instance, file descriptors are added to it using epoll_ctl, For example,

ready_fds = epoll_ctl(epoll_fd, EPOLL_CTL_ADD, client_socket, &event);

• epoll_wait() The application then enters a loop where it waits for events using epoll_wait, For example,

ret = epoll_wait(epoll_fd, events, MAX_EVENTS, -1);

• send is used in network programming to send data over a connected socket. For example,

ret = send(client_socket, buffer, BUFFER_SIZE, 0);

• recv is used in network programming to receive data from a connected socket. For example,

len = recv(client_socket, buffer, BUFFER_SIZE, 0);

• close is used to close the socket To free up system resources associated with the socket. For example,

(void)close(client_socket);

• See the full program below,

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <arpa/inet.h>
#include <signal.h>
#include <netpacket/packet.h>
#include <net/ethernet.h>
#include <net/if.h>
#include <sys/epoll.h>

#define BUFFER_SIZE 1024
#define MAX_EVENTS 2

int client_socket = -1;
int epoll_fd = -1;

static void sigint_handler(int signo)
{
  (void)close(client_socket);
  sleep(2);
  printf("Caught sigINT!\n");
  exit(EXIT_SUCCESS);
}

void register_signal_handler(
int signum,
void (*handler)(int))
{
  if (signal(signum, handler) ==
  SIG_ERR) {
     printf("Cannot handle signal\n");
     exit(EXIT_FAILURE);
  }
}

int main(void)
{
  int ret, i;
  int ready_fds;
  struct sockaddr_ll
  server_addr,
  client_addr;
  char buffer[BUFFER_SIZE];
  struct epoll_event
  events[MAX_EVENTS];
  struct epoll_event event;

  register_signal_handler(SIGINT,
  sigint_handler);

  client_socket = socket(AF_PACKET,
                  SOCK_RAW,
                  htons(ETH_P_ALL));

  if (client_socket < 0) {
    perror("socket");
    return -1;
  }

  memset(&server_addr, 0,
  sizeof(server_addr));
  server_addr.sll_family = AF_PACKET;
  server_addr.sll_protocol =
  htons(ETH_P_ALL);
  server_addr.sll_ifindex =
  if_nametoindex("lo");

  ret = bind(client_socket,
  (struct sockaddr*)&server_addr,
  sizeof(server_addr));

  if (ret < 0) {
    perror("bind");
    (void)close(client_socket);
    return -2;
  }

  epoll_fd = epoll_create1(0);

  if (epoll_fd < 0) {
     perror("Epoll creation failed");
     exit(EXIT_FAILURE);
  }

  event.events = EPOLLIN;
  event.data.fd = client_socket;

  ret = epoll_ctl(epoll_fd, EPOLL_CTL_ADD,
  client_socket, &event);

  if (ret < 0) {
     perror("Epoll_ctl failed");
     exit(EXIT_FAILURE);
  }

  while (1) {
    sprintf(buffer, "%s", "hello server!");
    ret = send(client_socket,
    buffer, BUFFER_SIZE, 0);

    if (ret < 0) {
      perror("sendto");
      break;
    } else {
       printf("Sentbuffer : %s\n",
       buffer);
    }

    sleep(2);

    ready_fds = epoll_wait(epoll_fd,
    events, MAX_EVENTS, -1);

    if (ready_fds < 0) {
       perror("Epoll wait failed");
       exit(EXIT_FAILURE);
    }

    if (events[0].data.fd ==
    client_socket) {
       memset(buffer, 0, sizeof(buffer));
       ret = recv(client_socket,
       buffer, BUFFER_SIZE, 0);

       if (ret < 0) {
	  perror("recvfrom");
          break;
       } else if (ret > 0) {
          buffer[ret] = '\0';
          printf("Received : %s\n",
	  buffer);
       }
    }
  }

  (void)close(client_socket);

  return 0;
}

Step 6: Compile and Execute Client.c

$ gcc -o client client.c

$ sudo ./client

Sentbuffer : hello server!
Received : hello server!
Sentbuffer : hello server!
Received : HELLO
Sentbuffer : hello server!
Received : HELLO
Sentbuffer : hello server!
Received : HELLO
Sentbuffer : hello server!
Received : HELLO
Sentbuffer : hello server!
Received : HELLO
Sentbuffer : hello server!
Received : HELLO
Sentbuffer : hello server!
Received : HELLO
Sentbuffer : hello server!
Received : HELLO
^CCaught sigINT!

Enhanced Socket Flexibility with AF_PACKET and PF_PACKET Domains

Default Domain:

By default, the socket is configured to work in the AF_PACKET domain, handling all types of network data.

Additional Domain Support:

We expand the socket’s capabilities to also function in the PF_PACKET domain, allowing it to operate similarly to AF_PACKET.

Socket Creation:

We set up a network connection point known as a socket using socket(PF_PACKET, SOCK_RAW, IPPROTO_UDP).

Working Scenario:

Despite the change in domain to PF_PACKET, the socket continues to operate the same way, handling general network data.

Enhanced Protocol Flexibility in Socket Configuration

Default Protocol Support:

By default, the socket is configured to support the capture of all Ethernet frames (ETH_P_ALL protocol).

Additional Protocol:

The socket is designed to seamlessly support an additional protocol, namely ETH_P_PAE.

Socket Creation:

A socket is created using the socket(AF_PACKET, SOCK_RAW, htons(ETH_P_PAE)) call.

Working Scenario:

Despite the change in protocol to ETH_P_PAE, the overall working scenario of the socket remains consistent.

Summary

Socket API	Learning
socket	Create a new socket
bind	Associate the socket with a specific address and port
epoll	handles a set of file descriptors with different states, such as reading, writing, and exceptions, by using the struct epoll_event structure and the associated event flags..
recv	Receive data from a connected socket.
send	Send data over a connected socket.

See Also

• Previous topic

  • af_packet raw server client program with Poll system call

• Current topic

  • af_packet raw server client program with Epoll system call

• Next topic

  • raw_af_packet_udp_htons_ETH_P_ALL

• Other sockets

  • raw_af_packet_tcp_htons_ETH_P_ALL

• Other IPCs

  • Message_queues

  • NamedPipes

  • Netlink

  • Shared_Memory

  • Shared_Memory_2_FDS

  • SocketPair

  • Timerfd
