af_packet raw server client program with Poll system call

AF_PACKET RAW

• In this program, you are going to learn

• How to create a Socket ?

• How to bind a socket ?

• How to send a data ?

• How to recv a data ?

• How to use socket APIs ?

  • socket

  • bind

  • send

  • recv

Topics in this section,

• AF_PACKET RAW SOCKET FAQs

• Step 1: Sequence Diagram for SERVER.c

• Step 2: Program for Server.c

• Step 3: Compile and Execute Server.c

• Step 4: Sequence Diagram for CLIENT.c

• Step 5: Program for Client.c

• Step 6: Compile and Execute Client.c

• Summary

AF_PACKET RAW SOCKET : FAQs

Let us answer few basic questions in this socket

What does socket(AF_PACKET, SOCK_RAW, htons(ETH_P_ALL)) do?

See Answer

This call creates a raw socket at the data link layer, allowing capturing of all Ethernet frames, including those not destined for the local host.

How can I handle errors when creating a raw socket for packet capturing?

See Answer

Check the return value of the socket function. If it returns -1, use perror to print a descriptive error message.

Are there specific privileges required to create a raw packet socket?

See Answer

Yes, typically, root or superuser privileges are required to create a raw packet socket for security reasons.

What kind of errors can occur when using a raw packet socket?

See Answer

Common errors include permission-related errors (EACCES), socket creation failures (ENOMEM), or invalid arguments (EINVAL).

How do I handle errors when binding a raw packet socket?

See Answer

Check the return value of the bind function. If it returns -1, handle the error by printing a message or taking appropriate corrective action based on the error code.

What is the significance of error code EPERM when dealing with raw packet sockets?

See Answer

EPERM (Operation not permitted) typically indicates insufficient privileges. Ensure the program has the necessary permissions to create raw packet sockets.

How do I handle errors when using recv and send to capture packets and send packets with a raw socket?

See Answer

Check the return value of recv and send. If it returns -1, handle the error by printing a message or taking appropriate corrective action.

Is it important to close the raw packet socket on error?

See Answer

Yes, closing the socket is crucial to release system resources. Always follow error-handling best practices and close sockets on error.

How do I handle timeouts when capturing packets with a raw packet socket?

See Answer

For timeouts, use select or poll in combination with non-blocking mode to wait for data with a specified timeout.

Is it possible to capture packets on a specific network interface with a raw packet socket?

See Answer

Yes, use the bind function to associate the raw packet socket with a specific network interface.

How do I handle errors related to socket file descriptor management?

See Answer

When closing sockets, check for errors using close. Handle errors by printing messages or taking corrective actions.

What is the purpose of the poll system call?

See Answer

To block and wait for activity on one or more file descriptors.

How does poll differ from poll in terms of usability?

See Answer

poll is more efficient than poll for monitoring multiple file descriptors.

What types of file descriptors can be monitored using poll?

See Answer

sockets, files, timerfd, socketpair, message_queue, Namedpipes and shared_memory.

What is the significance of the timeout parameter in the select function?

See Answer

It specifies the maximum duration to wait for any file descriptor to become ready.

How do you handle errors when using the select system call?

See Answer

Check the return value for -1 to detect errors, Use perror to print error messages.

How does select handle a set of file descriptors with different states (e.g., reading, writing, exception)?

See Answer

Preparing File Descriptor Sets:

select(readfds, writefds, exceptfds);

Setting Up Readiness Conditions:

If you are interested in monitoring file descriptors for readability, you add them to the readfds set.

FD_ZERO(&readfds);

FD_SET(fd1, &readfds);

Setting Up Writability Conditions:

If you are interested in monitoring file descriptors for writability, you add them to the writefds set.

FD_ZERO(&writefds);

FD_SET(fd2, &writefds);

Setting Up Exceptional Conditions:

If you are interested in monitoring file descriptors for exceptional conditions, you add them to the exceptfds set.

FD_ZERO(&exceptfds);

FD_SET(fd3, &exceptfds);

How does select Checking Ready File Descriptors?

See Answer

After select returns, you can check the sets to determine which file descriptors are ready for the specified conditions.

if (FD_ISSET(fd1, &readfds)) {
        // fd1 is ready for reading
}
if (FD_ISSET(fd3, &writefds)) {
        // fd2 is ready for writing
}
if (FD_ISSET(fd4, &exceptfds)) {
        // fd3 has an exceptional condition
}

What does it mean if select returns 0?

See Answer

No file descriptors are ready within the specified timeout.

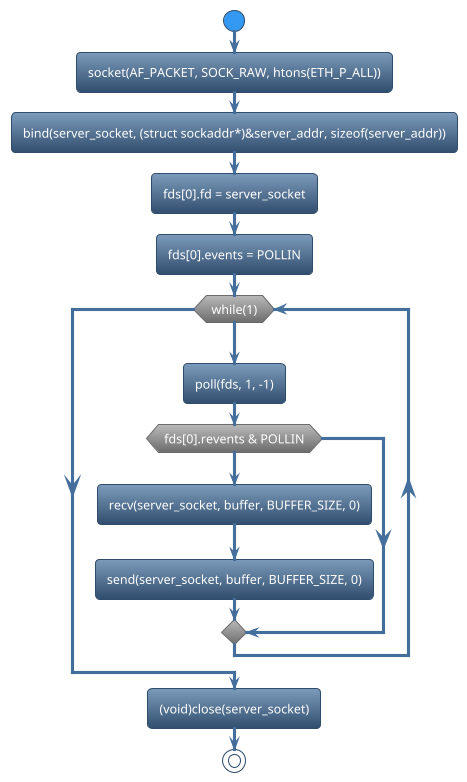

Step 1: Sequence Diagram for SERVER.c

Step 2: Program for Server.c

• There are many functions used in socket. We can classify those functions based on functionalities.

  • Create Socket

  • Bind Socket

  • Poll

  • Recv data_packet

  • Send data_packet

  • Close socket

• socket() is used to create a new socket. For example,

server_socket = socket(AF_PACKET, SOCK_RAW, htons(ETH_P_ALL));

• bind() is used to associate the socket with a specific address and port. For example,

ret = bind(server_socket, (struct sockaddr*)&server_addr, sizeof(server_addr));

• poll() is used for monitoring multiple file descriptors to see if I/O is possible on any of them.

ret = poll(fds, 1, -1);

• recv is used in network programming to receive data from a connected socket. For example,

len = recv(server_socket, buffer, BUFFER_SIZE, 0);

• send is used in network programming to send data over a connected socket. For example,

ret = send(server_socket, buffer, BUFFER_SIZE, 0);

• close is used to close the socket To free up system resources associated with the socket. For example,

(void)close(server_socket);

• See the full program below,

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <arpa/inet.h>
#include <signal.h>
#include <netpacket/packet.h>
#include <net/ethernet.h>
#include <net/if.h>
#include <poll.h>

#define BUFFER_SIZE 1024

int server_socket;

static void sigint_handler(int signo)
{
  (void)close(server_socket);
  sleep(2);
  printf("Caught sigINT!\n");
  exit(EXIT_SUCCESS);
}

void register_signal_handler(
int signum,
void (*handler)(int))
{
  if (signal(signum, handler) ==
  SIG_ERR) {
     printf("Cannot handle signal\n");
     exit(EXIT_FAILURE);
  }
}

int main(void)
{
  int ret, i;
  struct sockaddr_ll
  server_addr,
  client_addr;
  struct pollfd fds[1];
  char buffer[BUFFER_SIZE];

  register_signal_handler(SIGINT,
  sigint_handler);

  server_socket = socket(AF_PACKET,
                  SOCK_RAW,
                  htons(ETH_P_ALL));

  if (server_socket < 0) {
    perror("socket");
    return -1;
  }

  memset(&server_addr, 0,
  sizeof(server_addr));
  server_addr.sll_family = AF_PACKET;
  server_addr.sll_protocol =
  htons(ETH_P_ALL);
  server_addr.sll_ifindex =
  if_nametoindex("lo");

  ret = bind(server_socket,
  (struct sockaddr*)&server_addr,
  sizeof(server_addr));

  if (ret < 0) {
    perror("bind");
    (void)close(server_socket);
    return -2;
  }

  printf("RAW socket is listening\n");

  socklen_t client_addr_len =
  sizeof(client_addr);

  memset(fds, 0, sizeof(fds));
  fds[0].fd = server_socket;
  fds[0].events = POLLIN;

  while (1) {
    ret = poll(fds, 1, -1);

    if (ret < 0) {
      perror("poll");
      break;
    }

    if (fds[0].revents & POLLIN) {
      memset(buffer, 0,
      sizeof(buffer));
     ret = recv(server_socket,
     buffer, BUFFER_SIZE, 0);
     if (ret < 0) {
	perror("recvfrom error");
        break;
     } else {
        buffer[ret] = '\0';
        printf("Received: %s\n",
        buffer);
     }
     sleep(3);

     memset(buffer, 0,
     sizeof(buffer));
     strncpy(buffer, "HELLO",
     strlen("HELLO") + 1);
     buffer[strlen(buffer)
     + 1] = '\0';

     ret = send(server_socket,
     buffer, BUFFER_SIZE, 0);

     if (ret == -1) {
        perror("sendto error");
        break;
      } else {
	printf("sending message = %s\n",
	buffer);
      }
     }
   }

  (void)close(server_socket);

  return 0;
}

Step 3: Compile and Execute Server.c

$ gcc -o server server.c

$ sudo ./server

RAW socket is listening
Received: hello server!
sending message = HELLO
Received: hello server!
sending message = HELLO
Received: HELLO
sending message = HELLO
Received: hello server!
sending message = HELLO
Received: hello server!
sending message = HELLO
Received: HELLO
sending message = HELLO
Received: hello server!
^CCaught sigINT!

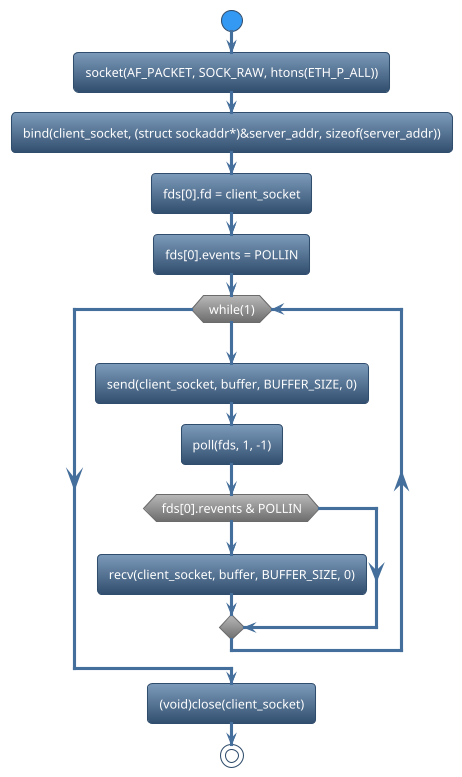

Step 4: Sequence Diagram for CLIENT.c

Step 5: Program for Client.c

• There are many functions used in socket. We can classify those functions based on functionalities.

  • Create Socket

  • Bind Socket

  • Poll

  • Send data_packet

  • Recv data_packet

  • Close socket

• socket is used to create a new socket. For example,

client_socket = socket(AF_PACKET, SOCK_RAW, htons(ETH_P_ALL));

• bind() is used to associate the socket with a specific address and port. For example,

ret = bind(client_socket, (struct sockaddr*)&server_addr, sizeof(server_addr));

• poll() is used for monitoring multiple file descriptors to see if I/O is possible on any of them.

ret = poll(fds, 1, -1);

• send is used in network programming to send data over a connected socket. For example,

ret = send(client_socket, buffer, BUFFER_SIZE, 0);

• recv is used in network programming to receive data from a connected socket. For example,

len = recv(client_socket, buffer, BUFFER_SIZE, 0);

• close is used to close the socket To free up system resources associated with the socket. For example,

(void)close(client_socket);

• See the full program below,

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <arpa/inet.h>
#include <signal.h>
#include <netpacket/packet.h>
#include <net/ethernet.h>
#include <net/if.h>
#include <poll.h>

#define BUFFER_SIZE 1024

int client_socket;

static void sigint_handler(int signo)
{
  (void)close(client_socket);
  sleep(2);
  printf("Caught sigINT!\n");
  exit(EXIT_SUCCESS);
}

void register_signal_handler(
int signum,
void (*handler)(int))
{
  if (signal(signum, handler) ==
  SIG_ERR) {
     printf("Cannot handle signal\n");
     exit(EXIT_FAILURE);
  }
}

int main(void)
{
  int ret, i;
  struct sockaddr_ll
  server_addr,
  client_addr;
  struct pollfd fds[1];
  char buffer[BUFFER_SIZE];

  register_signal_handler(SIGINT,
  sigint_handler);

  client_socket = socket(AF_PACKET,
                  SOCK_RAW,
                  htons(ETH_P_ALL));

  if (client_socket < 0) {
    perror("socket");
    return -1;
  }

  memset(&server_addr, 0,
  sizeof(server_addr));
  server_addr.sll_family = AF_PACKET;
  server_addr.sll_protocol =
  htons(ETH_P_ALL);
  server_addr.sll_ifindex =
  if_nametoindex("lo");

  ret = bind(client_socket,
  (struct sockaddr*)&server_addr,
  sizeof(server_addr));

  if (ret < 0) {
    perror("bind");
    (void)close(client_socket);
    return -2;
  }

  memset(fds, 0, sizeof(fds));
  fds[0].fd = client_socket;
  fds[0].events = POLLIN;

  while (1) {
    sprintf(buffer, "%s", "hello server!");
    ret = send(client_socket,
    buffer, BUFFER_SIZE, 0);
    if (ret < 0) {
      perror("sendto");
      break;
    } else {
       printf("Sentbuffer : %s\n",
       buffer);
    }
    sleep(2);

    ret = poll(fds, 1, -1);

    if (ret < 0) {
	perror("poll");
	break;
    }

    if (fds[0].revents & POLLIN) {
       memset(buffer, 0, sizeof(buffer));
       ret = recv(client_socket,
       buffer, BUFFER_SIZE, 0);

       if (ret < 0) {
	  perror("recvfrom");
          break;
       } else {
          buffer[ret] = '\0';
          printf("Received : %s\n",
	  buffer);
       }
    }
  }

  (void)close(client_socket);

  return 0;
}

Step 6: Compile and Execute Client.c

$ gcc -o client client.c

$ sudo ./client

Sentbuffer : hello server!
Received : hello server!
Sentbuffer : hello server!
Received : HELLO
Sentbuffer : hello server!
Received : HELLO
Sentbuffer : hello server!
Received : HELLO
Sentbuffer : hello server!
Received : HELLO
Sentbuffer : hello server!
Received : HELLO
Sentbuffer : hello server!
Received : HELLO
Sentbuffer : hello server!
Received : HELLO
Sentbuffer : hello server!
Received : HELLO
^CCaught sigINT!

Enhanced Socket Flexibility with AF_PACKET and PF_PACKET Domains

Default Domain:

By default, the socket is configured to work in the AF_PACKET domain, handling all types of network data.

Additional Domain Support:

We expand the socket’s capabilities to also function in the PF_PACKET domain, allowing it to operate similarly to AF_PACKET.

Socket Creation:

We set up a network connection point known as a socket using socket(PF_PACKET, SOCK_RAW, IPPROTO_UDP).

Working Scenario:

Despite the change in domain to PF_PACKET, the socket continues to operate the same way, handling general network data.

Enhanced Protocol Flexibility in Socket Configuration

Default Protocol Support:

By default, the socket is configured to support the capture of all Ethernet frames (ETH_P_ALL protocol).

Additional Protocol:

The socket is designed to seamlessly support an additional protocol, namely ETH_P_PAE.

Socket Creation:

A socket is created using the socket(AF_PACKET, SOCK_RAW, htons(ETH_P_PAE)) call.

Working Scenario:

Despite the change in protocol to ETH_P_PAE, the overall working scenario of the socket remains consistent.

Summary

Socket API	Learning
socket	Create a new socket
bind	Associate the socket with a specific address and port
poll	Monitor multiple file descriptors (usually sockets) for read, write, or error conditions.
recv	Receive data from a connected socket.
send	Send data over a connected socket.

See Also

• Previous topic

  • af_packet raw server client program with Select system call

• Current topic

  • af_packet raw server client program with Poll system call

• Next topic

  • af_packet raw server client program with Epoll system call

• Other sockets

  • raw_af_packet_tcp_htons_ETH_P_ALL

  • raw_af_packet_udp_htons_ETH_P_ALL

• Other IPCs

  • Message_queues

  • NamedPipes

  • Netlink

  • Shared_Memory

  • Shared_Memory_2_FDS

  • SocketPair

  • Timerfd
