IPV4 RAW AF INET ICMP server client program with Epoll system call

IPv4 RAW_AF_INET ICMP

• In this program, you are going to learn

• How to create a Socket ?

• How to send a data ?

• How to recv a data ?

• How to use socket APIs ?

  • socket

  • epoll_create1

  • epoll_ctl

  • epoll_wait

  • sendto

  • recvfrom

Topics in this section,

• IPV4 RAW_AF_INET ICMP SOCKET FAQs

• Step 1: Sequence Diagram for SERVER.c

• Step 2: Program for Server.c

• Step 3: Compile and Execute Server.c

• Step 4: Sequence Diagram for CLIENT.c

• Step 5: Program for Client.c

• Step 6: Compile and Execute Client.c

• Summary

IPV4 RAW_AF_INET ICMP SOCKET : FAQs

Let us answer few basic questions in this socket

What does socket(AF_INET, SOCK_RAW, IPPROTO_ICMP) do?

See Answer

This call creates a raw socket in the IPv4 address family (AF_INET) that can receive ICMP (Internet Control Message Protocol) packets directly.

Why use AF_INET as the address family?

See Answer

AF_INET specifies that the socket will work with IPv4 addresses.

What is the purpose of SOCK_RAW in the socket type?

See Answer

SOCK_RAW allows the socket to operate at a lower level by providing direct access to the packet, including the IP and transport layer headers.

Why specify IPPROTO_ICMP as the protocol?

See Answer

It filters the socket to receive only ICMP packets, allowing applications to handle ICMP messages directly.

Can this socket send ICMP packets as well?

See Answer

Yes, the same socket can be used to send and receive ICMP packets.

How does this socket differ from a standard UDP or TCP socket?

See Answer

Unlike UDP or TCP sockets, a raw socket provides direct access to the IP and ICMP headers, making it suitable for low-level packet handling.

Is error checking needed after creating the socket?

See Answer

Yes, checking for errors ensures that the socket is created successfully before proceeding with further operations.

Can this socket be used for other protocols besides ICMP?

See Answer

While created specifically for ICMP, the socket can be adapted for handling other IP protocols by changing the IPPROTO parameter.

Why close the socket after processing?

See Answer

Closing the socket ensures proper resource cleanup and releases the associated system resources.

How is the source IP address extracted from the received packet?

See Answer

The source IP address can be extracted by parsing the IP header within the received packet.

Can this socket receive ICMP messages from any source?

See Answer

Yes, the socket can receive ICMP packets from any source as it operates at the network layer.

Why cast to struct iphdr and struct icmphdr in packet processing?

See Answer

Casting allows the code to interpret the received buffer as IP and ICMP headers, facilitating packet analysis.

What is the primary purpose of the epoll system call?

See Answer

To efficiently monitor multiple file descriptors for I/O events

What types of file descriptors can be monitored using epoll?

See Answer

sockets, files, timerfd, socketpair, message_queue, Namedpipes and shared_memory.

What data structure is used by epoll to store events?

See Answer

Hash table

How do you handle errors when using the epoll system call?

See Answer

Check the return value for -1 to detect errors, Use perror to print error messages.

How does epoll handle a set of file descriptors with different states (e.g., reading, writing, exception)?

See Answer

Create the epoll Instance:

Before monitoring file descriptors, the application creates an epoll instance using the epoll_create system call.

int epoll_fd = epoll_create1(0);

Register File Discriptors:

The application registers file descriptors with the epoll instance using the epoll_ctl system call. It specifies the file descriptor, the events it is interested in (EPOLLIN for readability, EPOLLOUT for writability, etc.), and a user-defined data associated with the file descriptor.

struct epoll_event event;
event.events = EPOLLIN | EPOLLOUT;  // Interested in readability and writability
event.data.fd = my_file_descriptor; // File descriptor to monitor

epoll_ctl(epoll_fd, EPOLL_CTL_ADD, my_file_descriptor, &event);

Wait for Events:

The application enters a loop where it calls epoll_wait to wait for events. This call blocks until one or more registered file descriptors become ready or until a timeout occurs.

#define MAX_EVENTS 10
struct epoll_event events[MAX_EVENTS];

int num_events = epoll_wait(epoll_fd, events, MAX_EVENTS, timeout_ms);

Modify or Remove File Descriptors:

The application can dynamically modify or remove file descriptors from the epoll set using the epoll_ctl system call. For example, to modify events for an existing file descriptor:

struct epoll_event new_event;
new_event.events = EPOLLOUT;  // Modify to be interested in writability

epoll_ctl(epoll_fd, EPOLL_CTL_MOD, my_file_descriptor, &new_event);

To remove a file descriptor from the epoll set:

epoll_ctl(epoll_fd, EPOLL_CTL_DEL, my_file_descriptor, NULL);

How does epoll Checking Ready File Descriptors?

See Answer

After epoll_wait returns, the application iterates through the returned events to identify which file descriptors are ready and for what types of events.

for (int i = 0; i < num_events; ++i) {
        if (events[i].events & EPOLLIN) {
                // File descriptor i is ready for reading
        }

        if (events[i].events & EPOLLOUT) {
                // File descriptor i is ready for writing
        }
        // Check other events if needed (e.g., EPOLLERR, EPOLLHUP)
}

What does it mean if epoll returns 0?

See Answer

No file descriptors are ready within the specified timeout.

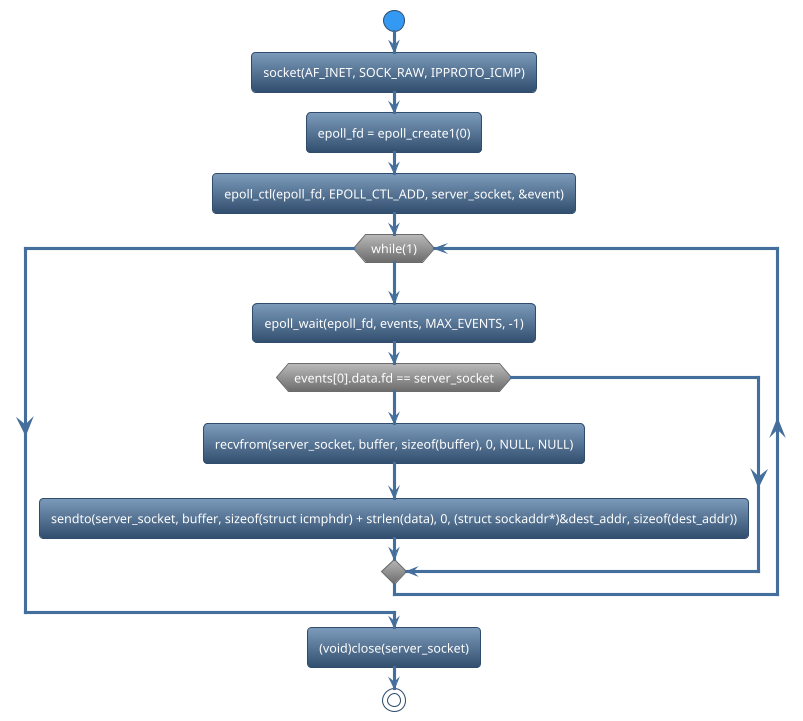

Step 1: Sequence Diagram for SERVER.c

Step 2: Program for Server.c

• There are many functions used in socket. We can classify those functions based on functionalities.

  • Create Socket

  • Epoll create1

  • Epoll_ctl

  • Epoll_wait

  • Recvfrom data_packet

  • Sendto data_packet

  • Close socket

• socket() is used to create a new socket. For example,

server_socket = socket(AF_INET, SOCK_RAW, IPPROTO_ICMP);

• epoll_create1() creating an epoll instance using epoll_create1, The size parameter is an advisory hint for the kernel regarding the number of file descriptors expected to be monitored, For example,

epoll_fd = epoll_create1(0);

• epoll_ctl() After creating an epoll instance, file descriptors are added to it using epoll_ctl, For example,

ret = epoll_ctl(epoll_fd, EPOLL_CTL_ADD, server_socket, &event);

• epoll_wait() The application then enters a loop where it waits for events using epoll_wait, For example,

ready_fds = epoll_wait(epoll_fd, events, MAX_EVENTS, -1);

• recvfrom is commonly used with sockets, where communication is connectionless. it provides information about the source (sender) of the data, including the sender’s IP address and port number. For example,

ret = recvfrom(server_socket, buffer, sizeof(buffer), 0, NULL, NULL);

• sendto is used to send the encoded message to the specified server address and port using a socket. For example,

ret = sendto(server_socket, buffer, sizeof(struct icmphdr) + strlen(data), 0, (struct sockaddr*)&dest_addr, sizeof(dest_addr));

• close is used to close the socket To free up system resources associated with the socket. For example,

(void)close(server_socket);

• See the full program below,

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <arpa/inet.h>
#include <netinet/ip_icmp.h>
#include <netinet/ip.h>
#include <sys/socket.h>
#include <sys/select.h>
#include <fcntl.h>
#include <signal.h>
#include <sys/epoll.h>

#define BUFFER_SIZE 1024
#define MAX_EVENTS 2

int epoll_fd = -1;
int server_socket = -1;

static void sigint_handler(int signo)
{
  (void)close(server_socket);
  sleep(2);
  (void)printf("Caught sigINT!\n");
  exit(EXIT_SUCCESS);
}

void register_signal_handler(
int signum,
void (*handler)(int))
{
  if (signal(signum, handler) ==
  SIG_ERR) {
     printf("Cannot handle signal\n");
     exit(EXIT_FAILURE);
  }
}

void send_icmp_message(
int client_socket,
const char *data)
{
  char buffer[BUFFER_SIZE];
  struct sockaddr_in
  dest_addr;
  int ret;
  struct icmphdr
  *icmp_header;

  snprintf(buffer +
  sizeof(struct icmphdr),
  sizeof(buffer) -
  sizeof(struct icmphdr), "%s",
  data);

  icmp_header =
  (struct icmphdr *)buffer;
  icmp_header->type = ICMP_ECHO;
  icmp_header->code = 0;
  icmp_header->checksum = 0;
  icmp_header->un.echo.id = 0;
  icmp_header->un.echo.sequence = 0;

  ret = sendto(client_socket,
  buffer, sizeof(struct icmphdr) +
  strlen(data), 0,
  (struct sockaddr *)&dest_addr,
  sizeof(dest_addr));

  if (ret < 0) {
     perror("sendto");
     (void)close(client_socket);
     exit(EXIT_FAILURE);
   }
}

void process_icmp_message(
char *buffer,
ssize_t length)
{
    struct iphdr
    *ip_header;
    struct icmphdr
    *icmp_header;
    char *original_data;

    icmp_header = (struct icmphdr *)
    (buffer + sizeof(struct iphdr));
    ip_header = (struct iphdr *)buffer;

    printf("Received ICMP message:\n");
    printf("Source IP: %s\n",
    inet_ntoa(*(struct in_addr *)&
    (ip_header->saddr)));
    printf("Type: %d\n", icmp_header->type);
    printf("Code: %d\n", icmp_header->code);

    original_data = buffer +
    sizeof(struct iphdr) +
    sizeof(struct icmphdr);
    printf("Original Data: %s\n",
    original_data);

}

int main()
{
  int  ret;
  char buffer[BUFFER_SIZE];
  int ready_fds;
  struct epoll_event
  events[MAX_EVENTS];
  struct epoll_event event;

  register_signal_handler(SIGINT,
  sigint_handler);

  server_socket = socket(AF_INET,
                  SOCK_RAW,
                  IPPROTO_ICMP);

  if (server_socket < 0) {
        perror("Socket failed");
        exit(EXIT_FAILURE);
  }

  fcntl(server_socket,
  F_SETFL,
  O_NONBLOCK);

  epoll_fd = epoll_create1(0);

  if (epoll_fd < 0) {
    perror("Epoll creation failed");
    exit(EXIT_FAILURE);
  }

  event.events = EPOLLIN;
  event.data.fd = server_socket;

  ret = epoll_ctl(epoll_fd,
  EPOLL_CTL_ADD, server_socket,
  &event);

  if (ret < 0) {
    perror("Epoll_ctl failed");
    (void)close(epoll_fd);
    (void)close(server_socket);
    exit(EXIT_FAILURE);
  }

  while (1) {
   ready_fds = epoll_wait(epoll_fd,
   events, MAX_EVENTS, -1);

   if (ready_fds < 0) {
      perror("epoll_wait failed");
      break;
   }

   if (events[0].data.fd == server_socket) {
     ret = recvfrom(server_socket,
     buffer, sizeof(buffer), 0, NULL, NULL);

     if (ret < 0) {
       perror("recv");
       break;
     }

     process_icmp_message(buffer, ret);
     send_icmp_message(server_socket,
     "Hello from server!");
     sleep(2);
   }
  }

  (void)close(server_socket);

  return 0;
}

Step 3: Compile and Execute Server.c

$ gcc -o server server.c

$ sudo ./server

Received ICMP message:
Source IP: 127.0.0.1
Type: 8
Code: 0
Original Data: Hello from client!
Received ICMP message:
Source IP: 127.0.0.1
Type: 8
Code: 0
Original Data: Hello from server!
Received ICMP message:
Source IP: 127.0.0.1
Type: 8
Code: 0
Original Data: Hello from client!
Received ICMP message:
Source IP: 127.0.0.1
Type: 8
Code: 0
Original Data: Hello from server!
Received ICMP message:
Source IP: 127.0.0.1
Type: 8
Code: 0
Original Data: Hello from server!
Received ICMP message:
Source IP: 127.0.0.1
Type: 8
Code: 0
Original Data: Hello from client!
^CCaught sigINT!

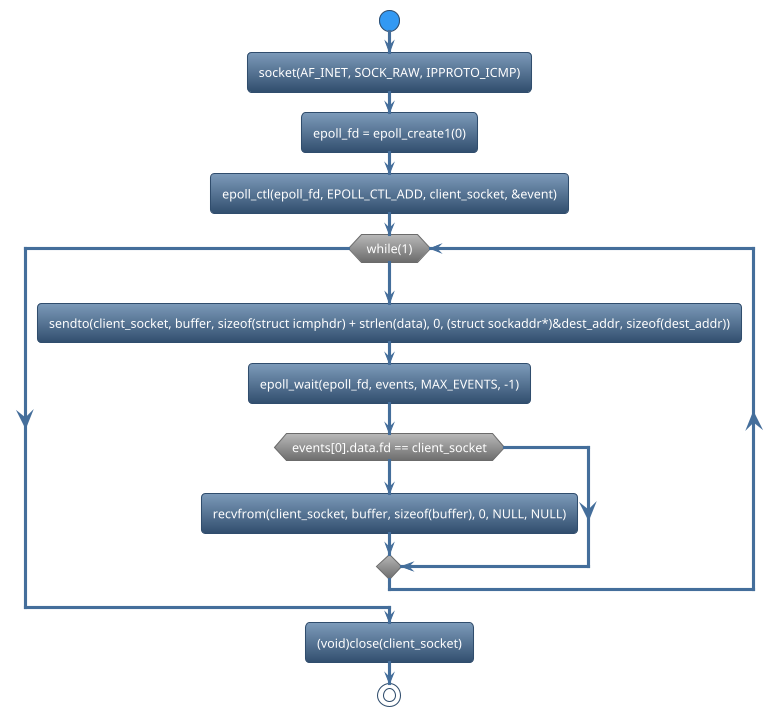

Step 4 : Sequence Diagram for CLIENT.c

Step 5: program for client.c

• There are many functions used in socket. We can classify those functions based on functionalities.

  • Create Socket

  • Epoll create1

  • Epoll_ctl

  • Epoll_wait

  • Sendto data_packet

  • Recvfrom data_packet

  • Close socket

• socket is used to create a new socket. For example,

client_socket = socket(AF_INET, SOCK_RAW, IPPROTO_ICMP);

• epoll_create1() creating an epoll instance using epoll_create1, The size parameter is an advisory hint for the kernel regarding the number of file descriptors expected to be monitored, For example,

epoll_fd = epoll_create1(0);

• epoll_ctl() After creating an epoll instance, file descriptors are added to it using epoll_ctl, For example,

ret = epoll_ctl(epoll_fd, EPOLL_CTL_ADD, client_socket, &event);

• epoll_wait() The application then enters a loop where it waits for events using epoll_wait, For example,

ready_fds = epoll_wait(epoll_fd, events, MAX_EVENTS, -1);

• recvfrom is commonly used with sockets, where communication is connectionless. it provides information about the source (sender) of the data, including the sender’s IP address and port number. For example,

len = recvfrom(client_socket, buffer, sizeof(buffer), 0, NULL, NULL);

• sendto is used to send the encoded message to the specified server address and port using a socket. For example,

ret = sendto(client_socket, buffer, sizeof(struct icmphdr) + strlen(data), 0, (struct sockaddr*)&dest_addr, sizeof(dest_addr));

• close is used to close the socket To free up system resources associated with the socket. For example,

(void)close(client_socket);

• See the full program below,

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <arpa/inet.h>
#include <netinet/ip_icmp.h>
#include <netinet/ip.h>
#include <sys/socket.h>
#include <sys/select.h>
#include <fcntl.h>
#include <signal.h>
#include <sys/epoll.h>

#define BUFFER_SIZE 1024
#define MAX_EVENTS 2

struct sockaddr_in
dest_addr;
int client_socket = -1;
int epoll_fd = -1;

static void sigint_handler(int signo)
{
  (void)close(client_socket);
  sleep(2);
  (void)printf("Caught sigINT!\n");
  exit(EXIT_SUCCESS);
}

void register_signal_handler(
int signum,
void (*handler)(int))
{
  if (signal(signum, handler) ==
  SIG_ERR) {
     printf("Cannot handle signal\n");
     exit(EXIT_FAILURE);
  }
}

void validate_convert_addr(
char *ip_str,
struct sockaddr_in *sock_addr)
{
  if (ip_str == NULL) {
   perror("Invalid ip_str\n");
   exit(EXIT_FAILURE);
 }

 if (sock_addr == NULL) {
   perror("Invalid sock_addr\n");
   exit(EXIT_FAILURE);
 }

 printf("IP Address: %s\n", ip_str);

 if (inet_pton(AF_INET, ip_str,
 &(sock_addr->sin_addr)) <= 0) {
    perror("Invalid address\n");
    exit(EXIT_FAILURE);
  }
}

void send_icmp_message(
int client_socket,
const char *data)
{
  int ret;
  char buffer[BUFFER_SIZE];
  struct icmphdr *icmp_header;

  snprintf(buffer +
  sizeof(struct icmphdr), sizeof(buffer) -
  sizeof(struct icmphdr), "%s", data);

  icmp_header = (struct icmphdr *)buffer;
  icmp_header->type = ICMP_ECHO;
  icmp_header->code = 0;
  icmp_header->checksum = 0;
  icmp_header->un.echo.id = 0;
  icmp_header->un.echo.sequence = 0;

  ret = sendto(client_socket,
  buffer, sizeof(struct icmphdr) +
  strlen(data), 0,
  (struct sockaddr *)&dest_addr,
  sizeof(dest_addr));

  if (ret < 0) {
    perror("sendto");
    (void)close(client_socket);
    exit(EXIT_FAILURE);
  }
}

void process_icmp_message(
char *buffer,
ssize_t length)
{
  struct iphdr *ip_header;
  struct icmphdr *icmp_header;
  char *original_data;

  ip_header = (struct iphdr *)buffer;
  icmp_header = (struct icmphdr *)
  (buffer + sizeof(struct iphdr));

  printf("Received ICMP message:\n");
  printf("Source IP: %s\n",
  inet_ntoa(*(struct in_addr *)&
  (ip_header->saddr)));
  printf("Type: %d\n", icmp_header->type);
  printf("Code: %d\n", icmp_header->code);

  original_data = buffer +
  sizeof(struct iphdr) +
  sizeof(struct icmphdr);
  printf("Original Data: %s\n",
  original_data);
}

int main(int argc, char *argv[])
{
  int ret;
  int ready_fds;
  char buffer[BUFFER_SIZE];
  struct epoll_event
  events[MAX_EVENTS];
  struct epoll_event event;

  register_signal_handler(SIGINT,
  sigint_handler);

  if (argc != 2) {
    printf("%s <ip-addr>",
    argv[0]);
    exit(EXIT_FAILURE);
  }

  memset(&dest_addr, 0,
  sizeof(dest_addr));
  dest_addr.sin_family = AF_INET;
  validate_convert_addr(argv[1],
  &dest_addr);

  client_socket = socket(AF_INET,
                  SOCK_RAW,
                  IPPROTO_ICMP);

  if (client_socket < 0) {
    perror("Socket failed");
    exit(EXIT_FAILURE);
  }

  fcntl(client_socket,
  F_SETFL, O_NONBLOCK);

  epoll_fd = epoll_create1(0);

  if (epoll_fd < 0) {
   perror("Epoll creation failed");
   (void)close(client_socket);
   return -1;
  }

  event.events = EPOLLIN | EPOLLET;
  event.data.fd = client_socket;
  ret = epoll_ctl(epoll_fd, EPOLL_CTL_ADD,
  client_socket, &event);

  if (ret  == -1) {
       perror("Epoll_ctl failed");
       (void)close(client_socket);
       return -2;
  }

  while (1) {
    send_icmp_message(client_socket,
    "Hello from client!");

    sleep(2);

    ready_fds = epoll_wait(epoll_fd,
                events,
                MAX_EVENTS, -1);

    if (ready_fds < 0) {
      perror("Epoll wait failed");
      break;
    }

    if (events[0].data.fd ==
       client_socket) {
      ret = recvfrom(client_socket,
      buffer, sizeof(buffer), 0, NULL, NULL);

      if (ret < 0) {
        perror("recv");
        break;
      } else {
         process_icmp_message(buffer, ret);
      }
    }
  }

  (void)close(client_socket);

  return 0;
}

Step 6: Compile and Execute client.c

$ gcc -o client client.c

$ sudo ./client 127.0.0.1

IP Address: 127.0.0.1
Received ICMP message:
Source IP: 127.0.0.1
Type: 8
Code: 0
Original Data: Hello from client!
Received ICMP message:
Source IP: 127.0.0.1
Type: 8
Code: 0
Original Data: Hello from server!
Received ICMP message:
Source IP: 127.0.0.1
Type: 8
Code: 0
Original Data: Hello from client!
Received ICMP message:
Source IP: 127.0.0.1
Type: 8
Code: 0
Original Data: Hello from server!
Received ICMP message:
Source IP: 127.0.0.1
Type: 8
Code: 0
Original Data: Hello from client!
^CCaught sigINT!

Enhanced Socket Flexibility with AF_INET and PF_INET Domains

Default Domain:

By default, the socket is configured to work in the AF_INET domain, handling all types of network data.

Additional Domain Support:

We expand the socket’s capabilities to also function in the PF_INET domain, allowing it to operate similarly to AF_INET.

Socket Creation:

We set up a network connection point known as a socket using socket(PF_INET, SOCK_RAW, IPPROTO_ICMP).

Working Scenario:

Despite the change in domain to PF_INET, the socket continues to operate the same way, handling general network data.

Summary

Socket API	Learning
socket	Create a new socket
epoll	handles a set of file descriptors with different states, such as reading, writing, and exceptions, by using the struct epoll_event structure and the associated event flags..
recvfrom	It provides information about the source (sender) of the data, including the sender’s IP address and port number.
sendto	Send the encoded message to the specified server address and port using a socket.

See Also

• Previous topic

  • IPV4 RAW AF INET ICMP server client program with Poll system call

• Current topic

  • IPV4 RAW AF INET ICMP server client program with Epoll system call

• Next topic

  • ipv4_raw_af_inet_raw

• Other sockets

  • ipv4_raw_af_inet_tcp

  • ipv4_raw_af_inet_udp

  • ipv6_af_inet6_tcp

  • ipv6_af_inet6_udp

  • //TODO ipv6_raw_af_inet6_icmp

  • //TODO ipv6_raw_af_inet6_tcp

  • //TODO ipv6_raw_af_inet6_udp

  • // TODO ipv6_raw_af_inet6_raw

  • raw_af_packet_raw_htons_ETH_P_ALL

  • raw_af_packet_tcp_htons_ETH_P_ALL

  • raw_af_packet_udp_htons_ETH_P_ALL

• Other IPCs

  • Message_queues

  • NamedPipes

  • Netlink

  • Shared_Memory

  • Shared_Memory_2_FDS

  • SocketPair

  • Timerfd
